Part 1 – Introduction

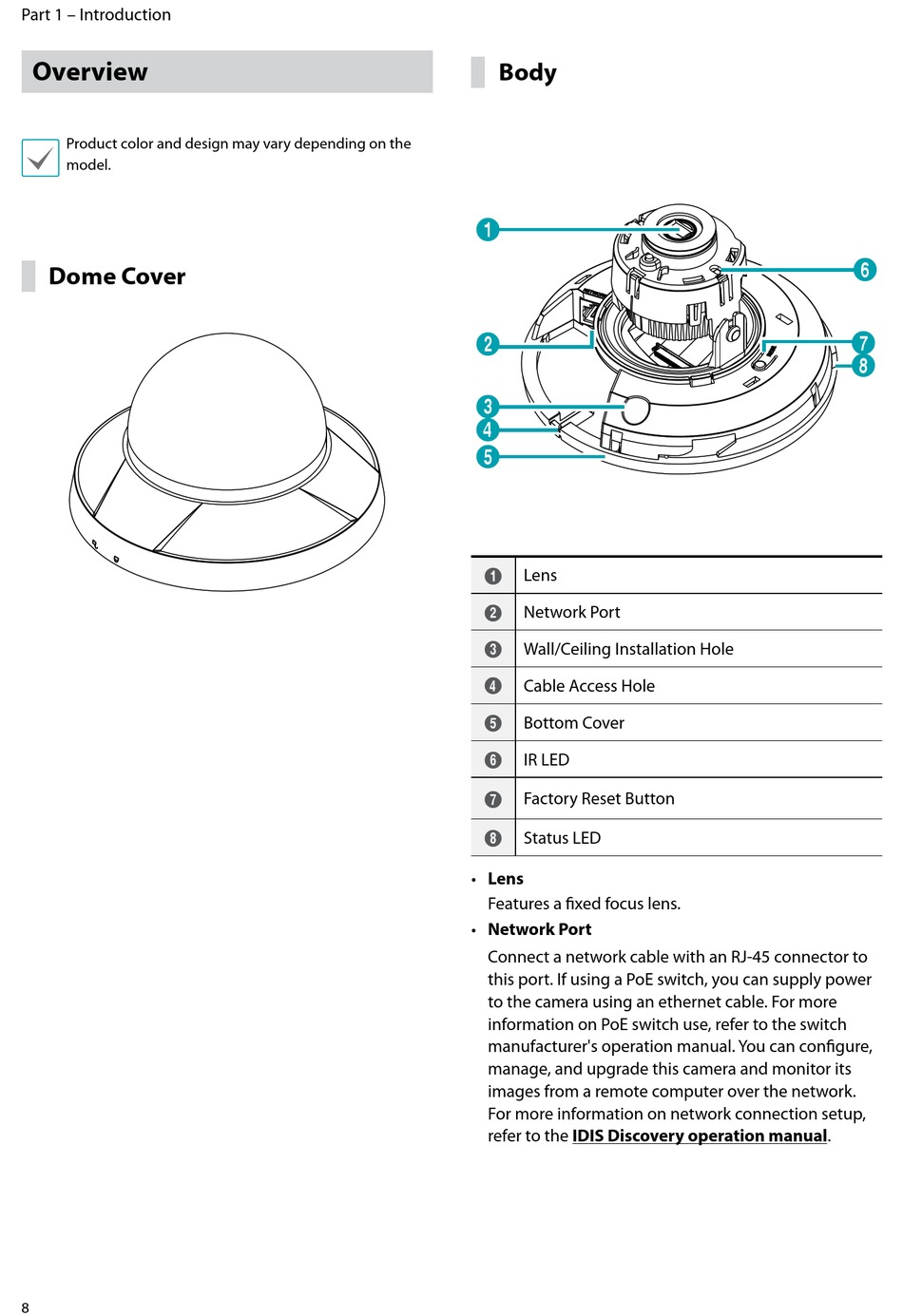

Overview

Product color and design may vary depending on the
model.

Dome Cover

8

Body

1
2
3
4
5
Lens
1
Network Port
2
Wall/Ceiling Installation Hole
3
Cable Access Hole
4
Bottom Cover
5
IR LED
6
Factory Reset Button
7
Status LED
8
• Lens
Features a fixed focus lens.
• Network Port
Connect a network cable with an RJ-45 connector to
this port. If using a PoE switch, you can supply power
to the camera using an ethernet cable. For more
information on PoE switch use, refer to the switch
manufacturer's operation manual. You can configure,
manage, and upgrade this camera and monitor its
images from a remote computer over the network.
For more information on network connection setup,
refer to the IDIS Discovery operation manual.
