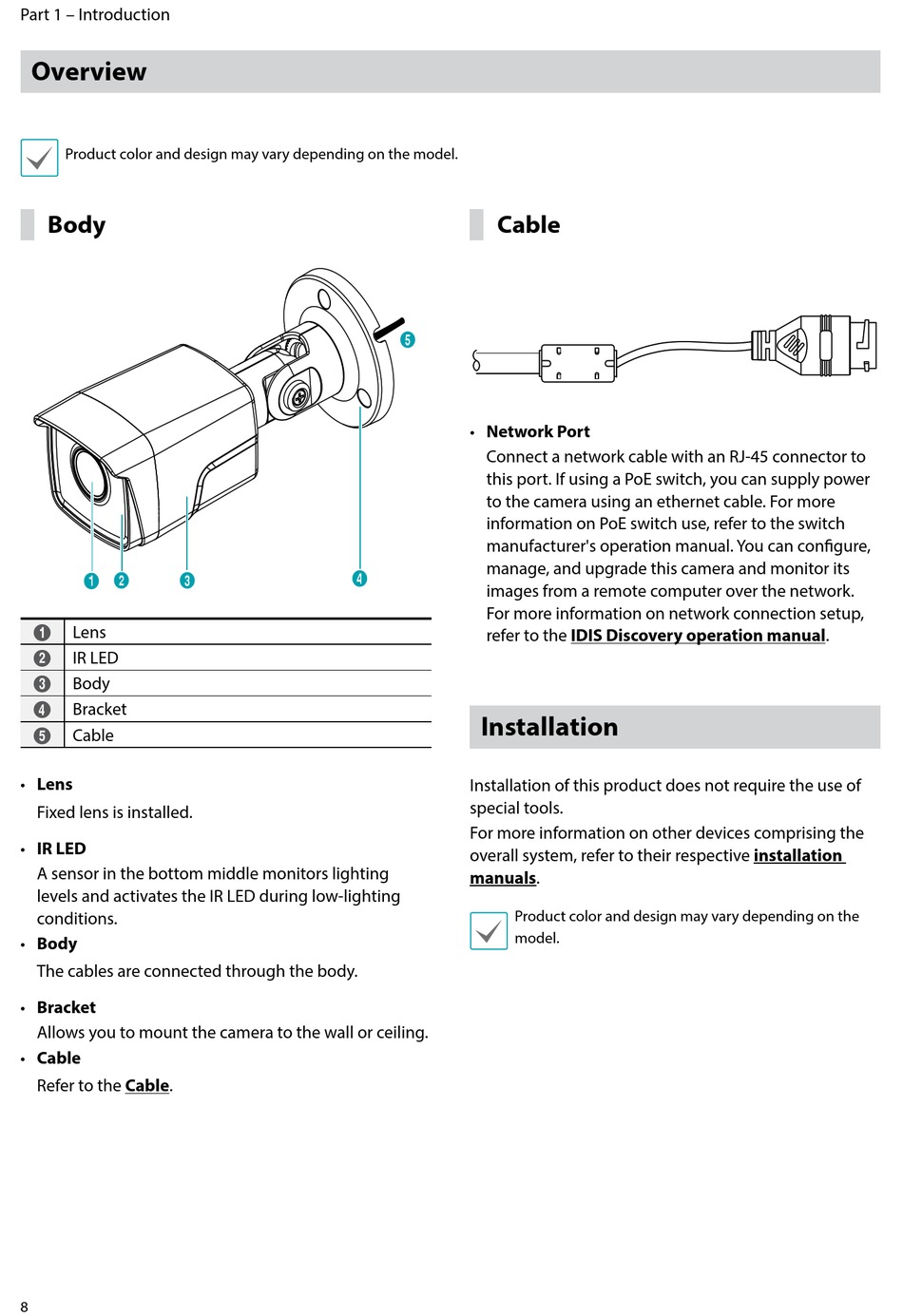

Part 1 – Introduction
Overview
Product color and design may vary depending on the model.
Body
1 2
3
Lens
1
IR LED
2
Body
3
Bracket
4
Cable
5
• Lens
Fixed lens is installed.
• IR LED
A sensor in the bottom middle monitors lighting
levels and activates the IR LED during low-lighting
conditions.
• Body
The cables are connected through the body.
• Bracket
Allows you to mount the camera to the wall or ceiling.
• Cable
Refer to the Cable.
8
Cable
5
• Network Port
Connect a network cable with an RJ-45 connector to
this port. If using a PoE switch, you can supply power
to the camera using an ethernet cable. For more
information on PoE switch use, refer to the switch
manufacturer's operation manual. You can configure,
manage, and upgrade this camera and monitor its
4
images from a remote computer over the network.
For more information on network connection setup,
refer to the IDIS Discovery operation manual.
Installation
Installation of this product does not require the use of
special tools.
For more information on other devices comprising the
overall system, refer to their respective installation
manuals.
Product color and design may vary depending on the
model.
