CONNECTION TO THE MAINS

BEFORE PERFORMING ANY ELECTRICAL ASSEMBLY OPERATION, DISCONNECT
THE RECOVERY UNIT FROM THE MAINS. CONNECT THE RECOVERY UNIT TO
A SOCKET INSTALLED CORRECTLY WITH THE GROUNDING TERMINAL. IT IS
FORBIDDEN TO PERFORM ANY MODIFICATION TO THE INTERNAL CONNECTIONS
WHICH MIGHT CAUSE THE WARRANTY TO BE VOIDED
The recovery unit is calibrated for connection to the AC mono phase mains supply 230 V / 50 Hz
by means of a 12 Vdc transformer (provided). To make the connection easier, the recovery unit
is fitted with a 500 mm long pre-wired power cord.
In order to power the recovery unit, insert the phone type connector in the specific socket
marked with the word IN. (see pic. 6)
CONNECTION OF RECOVERY UNITS IN SERIES
When the recovery units are connected in series, all the connected recovery units are controlled
by the first recovery unit and a single remote control. In order to connect the recovery units in
series, connect the exit contact press of the first recovery unit (identified with the OUT word) to
the entry contact press of the second recovery unit (identified with the IN word)
IN
fig.6
Connect the second recovery unit to the third recovery unit in the same way and so on, allowing
up to 4 recovery units to be connected in series.
Connecting the recovery units in series must be performed with the devices disconnected from
the mains supply

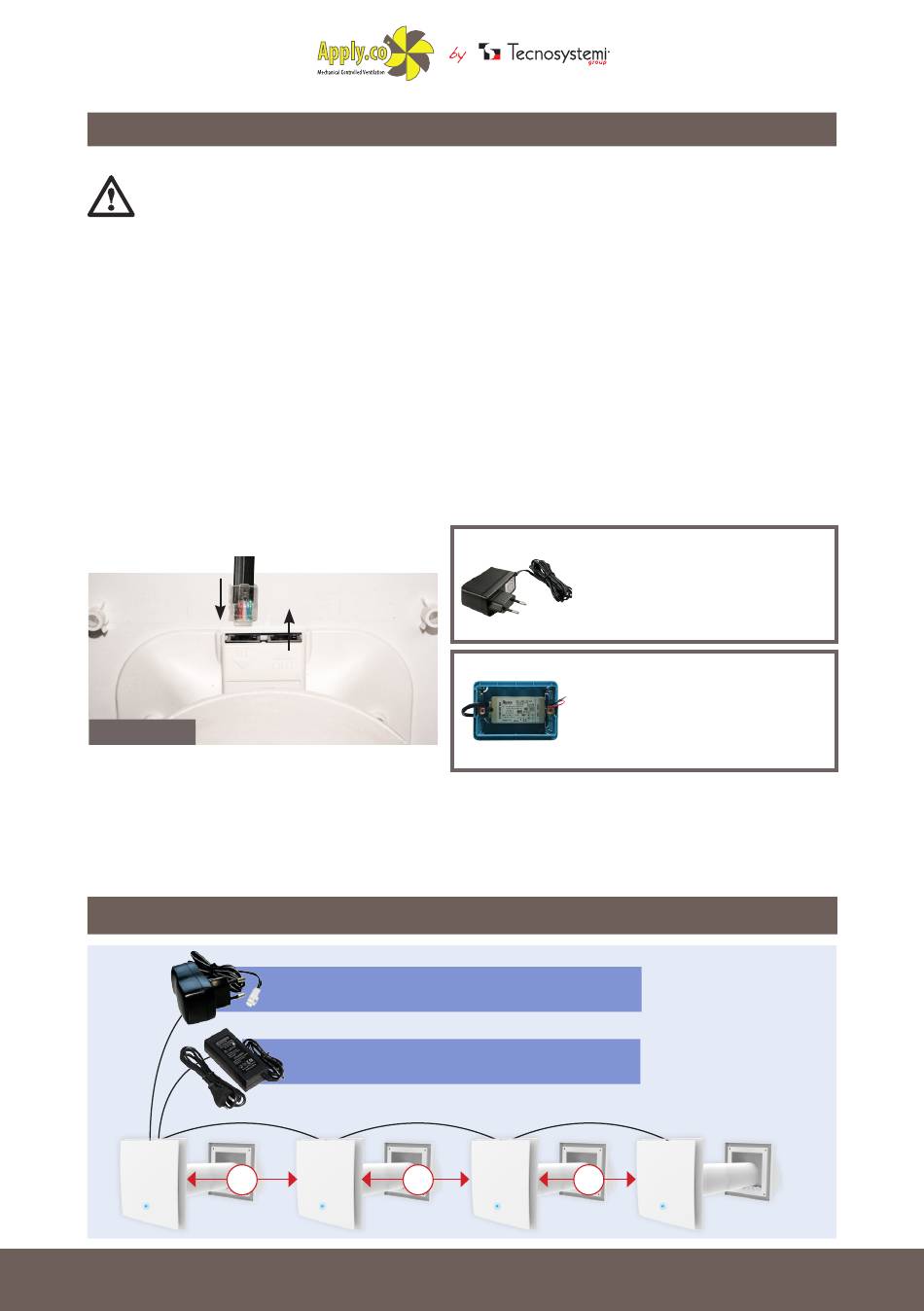

INSTALLATION DIAGRAM FOR MAX 4 "PICO WI" UNITS IN CASCADE
5
mt
Ventilation
Solutions
Accessories
For Heating
OUT
FOR RECOVERY UNIT
PICO CLEAN WI 55 - 30
POWER SUPPLY INCLUDED WITH THE UNIT
FOR RECOVERY UNIT
PICO CLEAN WI 80
POWER SUPPLY NOT INCLUDED
5
mt
Multi - Zone
Air Control System
Instruments &
Tools
EXTERNAL POWER SUPPLY
INCLUDED WITH PART NUMBERS
ACD100025 - ACD100026 - ACD100027
BUILT-IN POWER SUPPLY
INCLUDED FOR PART NUMBERS
ACD100028 - ACD100029 - ACD100030
