MOUNTING RECOVERY UNITS "PICO CLEAN WI"

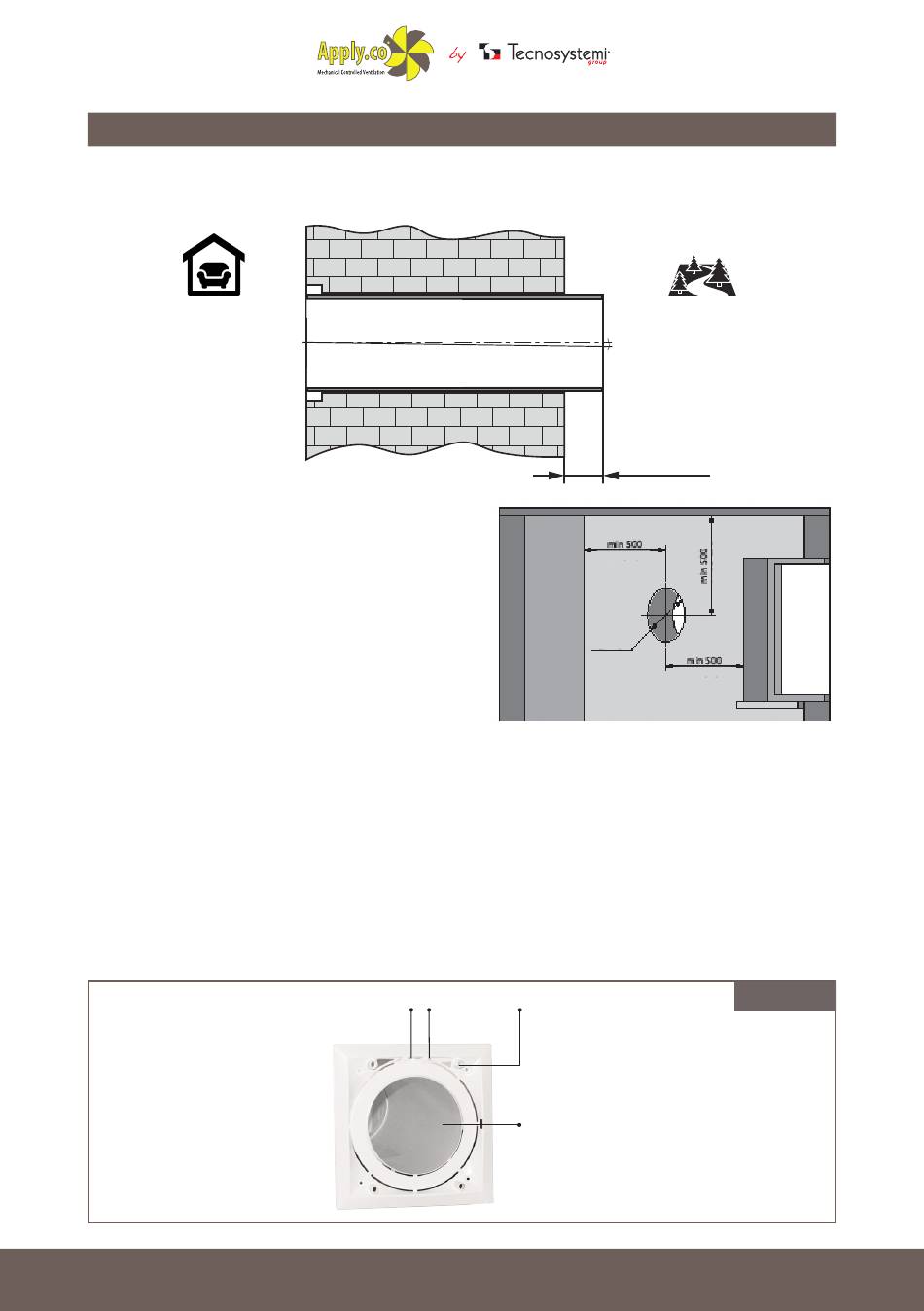

1) Install the duct in the wall, with a 1° inclination towards the outside.
INSIDE
Prepare a circular hole positioned as shown in the
adjacent figure
2) Prepare the power cable (see pic.1) taking care to route it, either from
the right or left, in the upper part of the duct in correspondence with the duct hole.
The mains can be laid out by means of a buried electrical sheath or an adequate electrical
channel which will contain the power cord.
The cord complete with plug must protrude from the wall for approximately 10 cm.
3) Insert the circular duct in the hole made in the wall. Fill the spaces between the wall and the
duct with silicone, foam or other suitable material. The air duct must be placed wired to the
internal wall.
Multi - Zone
Air Control System
Instruments &
Ventilation
Tools
Solutions
Accessories
For Heating
B
C
A
OUTSIDE
1°
5 mm
Ø 103-128-153 - 204
LEGEND:
A: Circular wall duct
B: Wall mount fastening ring
C: Through holes for
power supply
pic.1
