MANUALE D'USO / USER MANUAL

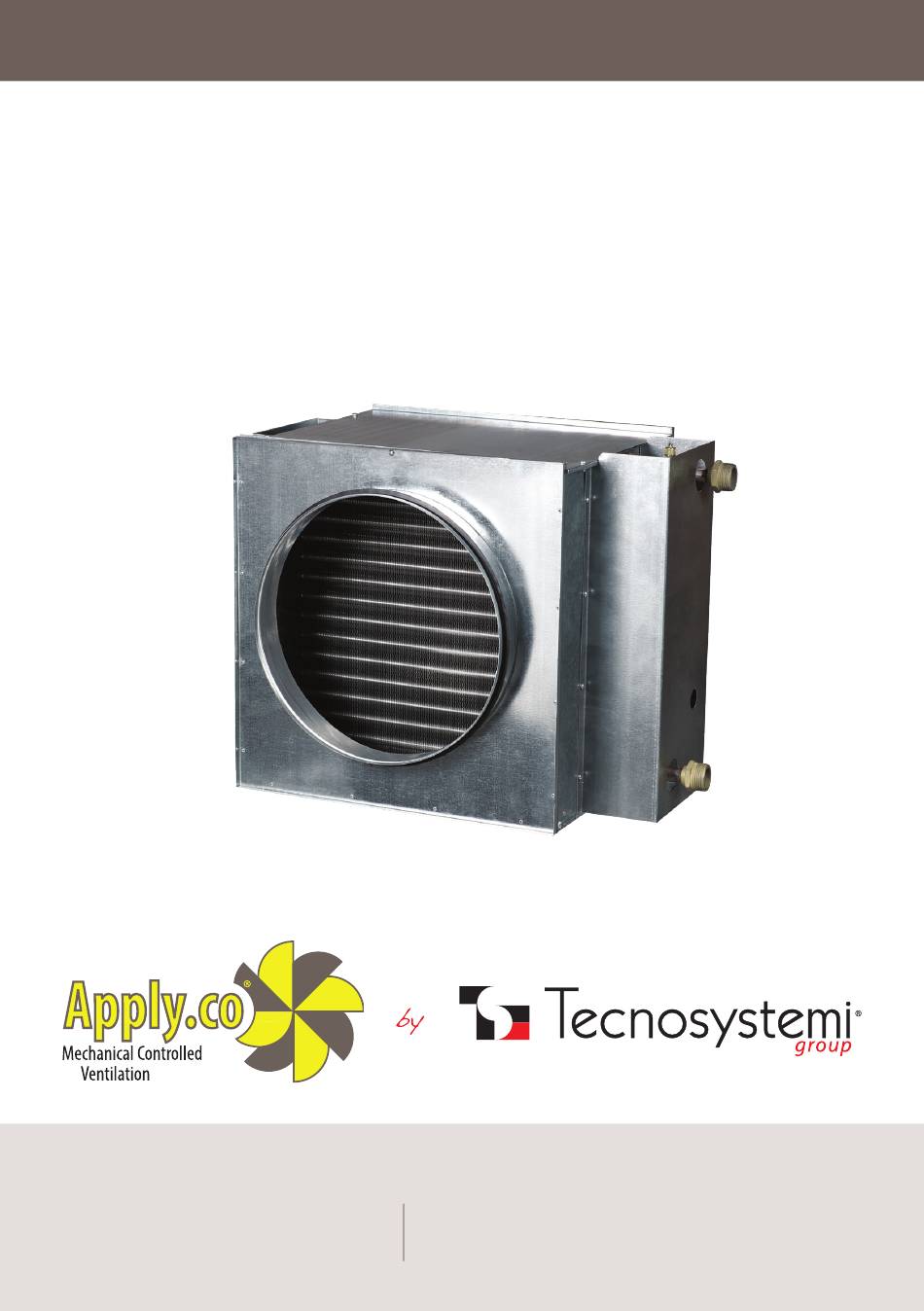

BATTERIA AD ACQUA CALDA
PER RECUPERATORE DI CALORE
HOT WATER COILS FOR HEAT RECOVERY UNITS
• cod. 30370025 • cod. 30370030 • cod. 30370035
• cod. 30370040 • cod. 30370045 • cod. 30370050
Tecnosystemi S.p.A. - Società Benefit
www.tecnosystemi.com
via dell'Industria, 2/4 - Z.I. San Giacomo di Veglia
31029 Vittorio Veneto (Treviso) - Italy
Phone +39 0438.500044 Fax +39 0438.501516
Numero Verde 800 904474
email: info@tecnosystemi.com
C.F. - P. IVA - R.I.TV IT02535780247 | Cap. Soc. € 5.000.000,00 i.v.
COD. C20002874
REV. 06 / 05-08-2022
(only for Italy)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Apply 30370025 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tecnosystemi Apply 30370025

  • Page 1 HOT WATER COILS FOR HEAT RECOVERY UNITS • cod. 30370025 • cod. 30370030 • cod. 30370035 • cod. 30370040 • cod. 30370045 • cod. 30370050 Tecnosystemi S.p.A. - Società Benefit www.tecnosystemi.com Numero Verde 800 904474 via dell’Industria, 2/4 - Z.I. San Giacomo di Veglia...
  • Page 2 FUNZIONE / FUNCTION Questo manuale abbina specifiche tecniche, istruzioni di funzionamento, certificato, informazioni per l’installazione. Dispositivo: Riscaldatore da condotta ad acqua. Il dispositivo con l’acqua come conduttore di calore e connessione rotonda o rettangolare alla condotta d’aria è progettato per il riscaldamento dell’aria in sistemi di condizionamento d’aria, ventilazione e riscaldamento a convezione d’aria calda, in asciugatrici e lame d’aria calda.

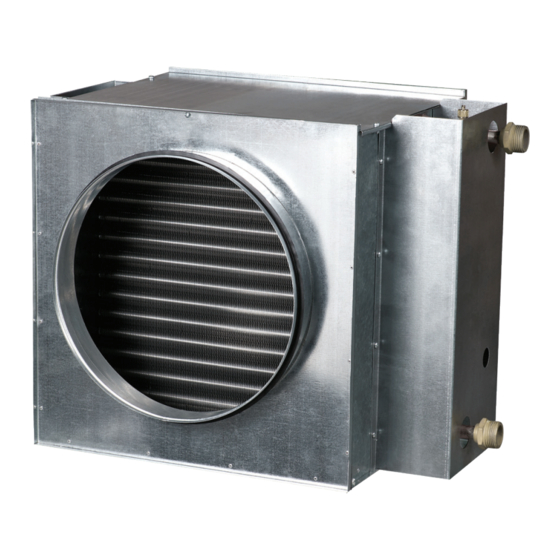

  • Page 3 The structure with round connection to the air duct (Figure 2) consists of the casing (1) and the heating element (3) inserted in the casing. The casing consists of a wall (6 for the round ducts), two protective casings (2) made of high-quality galvanised steel.
  • Page 4 N° RANGHI PESO Ø D BATTERIA MOD. K [mm] / WEIGHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] / N° BATTERY [kg] ARRAYS 200 - 2 G 3/4" 200 - 4 G 3/4" 250 - 2 G 1" 10,3 250 - 4 G 1"...
  • Page 5 TEMPERATURA ACQUA (ENTRATA / USCITA): / WATER TEMPERATURE (ENTRY/EXIT): +80 / +60 °C DIFF. DI POR- TEMPERATURA PRES- TATA / ARIA IN INGRESSO POTENZA PERDITA DI SIONE / TEMP. ARIA CONSUMO MOD. FLOW / INLET AIR TEMPE- DEL PACCO PRESSIONE PRESSURE IN INGRESSO D'ACQUA...
  • Page 6 PREQUISITI DI SICUREZZA / SECURITY REQUIREMENTS Durante l’installazione e il funzionamento saranno osservati i requisiti del presente manuale operativo, le regole per il funzionamento in sicurezza di dispositivi elettrici per il consumo, normative e regole costruttive attuali, leggi antincendio. Prima di avviare, controllare che non ci siano danni visibili al dispositivo, oggetti estranei nel condotto o perdite nei giunti.
  • Page 7 Installed directly in the air ducts in the positions so that it can be joined to the connecting pipes horizontally, on one side or vertically above. The tubes cannot be connected vertically from the bottom. When water is used as a heat transfer medium, the heaters must be used in places where the temperature is above 0°C.
  • Page 8 Tecnosystemi S.p.A. Società Benefit www.tecnosystemi.com via dell’Industria, 2/4 - Z.I. San Giacomo di Veglia 31029 Vittorio Veneto (Treviso) - Italia Tel +39 0438.500044 - Fax +39 0438.501516 email: info@tecnosystemi.com 800 904474 ONLY FOR ITALY C.F. - P. IVA - R.I.TV IT02535780247 Cap.
