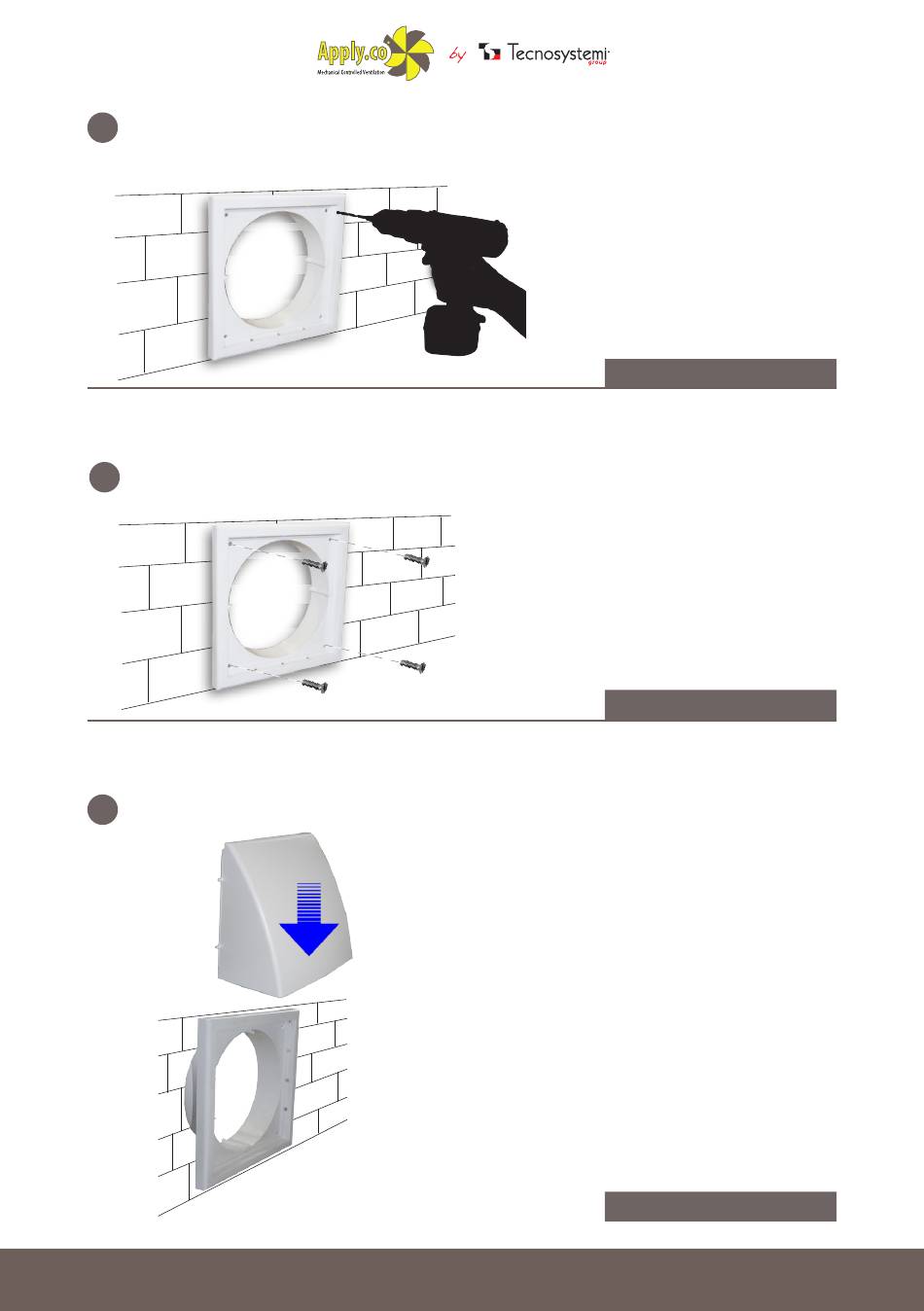

3 Mark the fixing holes for the external ventilation grille and drill.
For the sake of convenience, use the back part of the grille.(see pic.2)
4 Fix the back part of the grille to the wall with 4x30 screws included. (see pic. 3)
5 Assemble the upper part of the grille. (see pic. 4)
