OPERATIONS OF "PICO CLEAN WI 30 - 55 -80"
The intake-extractor unit consists of a fixed length circular air duct, ventilation unit and external
grille.
The two motors and the filter are inside the duct.
The filter has been designed to purify the supply air and to prevent foreign objects entering
the intake-extractor unit and the fans.
The intake-extractor unit generates a visual alarm (red colour led light) as a reminder to clean or
replace the filter every 1,500 operating hours.
The ventilation unit must be installed on the inside part of the wall.
The external grille must be installed on the external part of the wall to prevent water and
other objects getting into the intake-extractor unit.

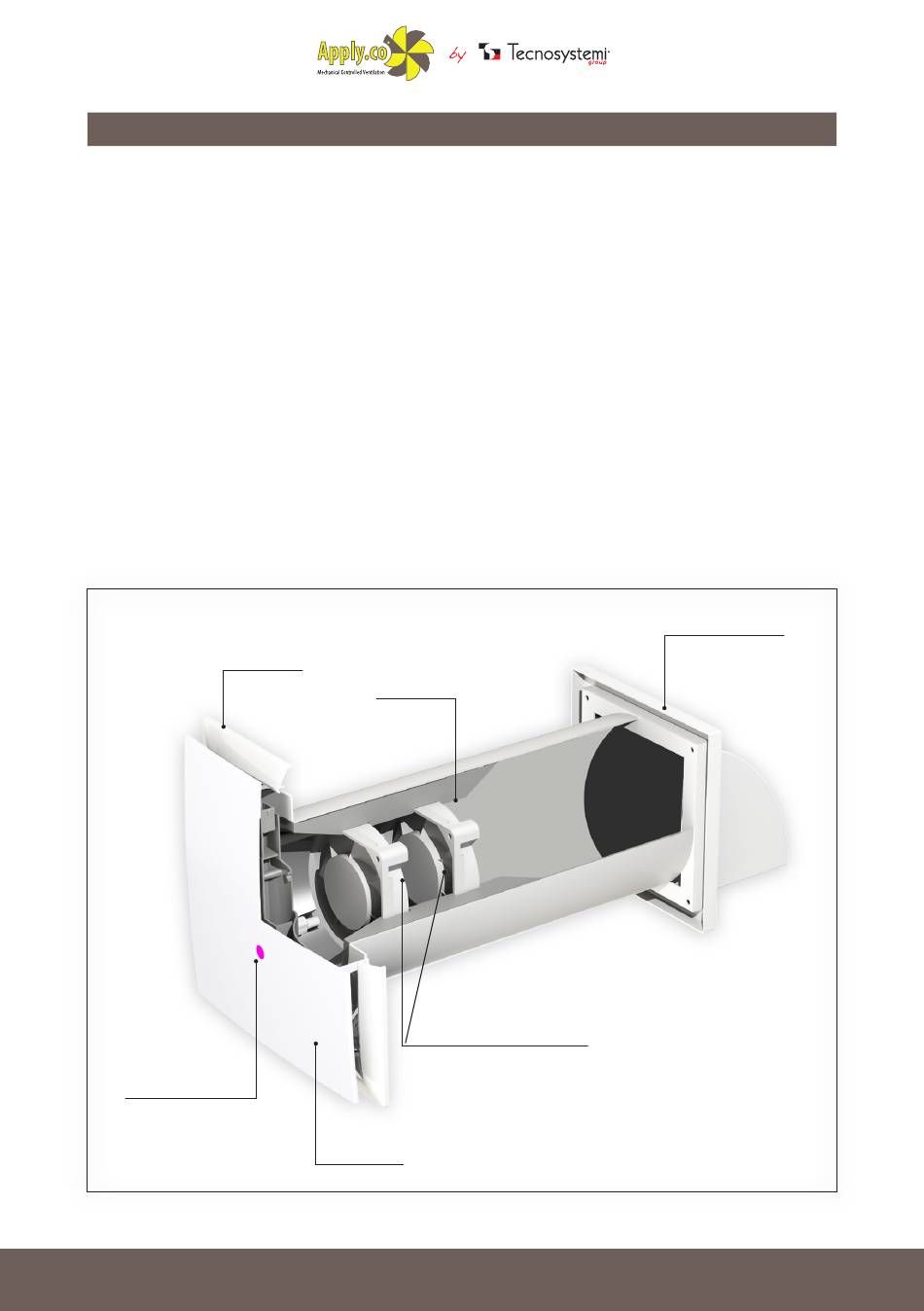

DESIGN DETAIL OF "PICO CLEAN WI"
