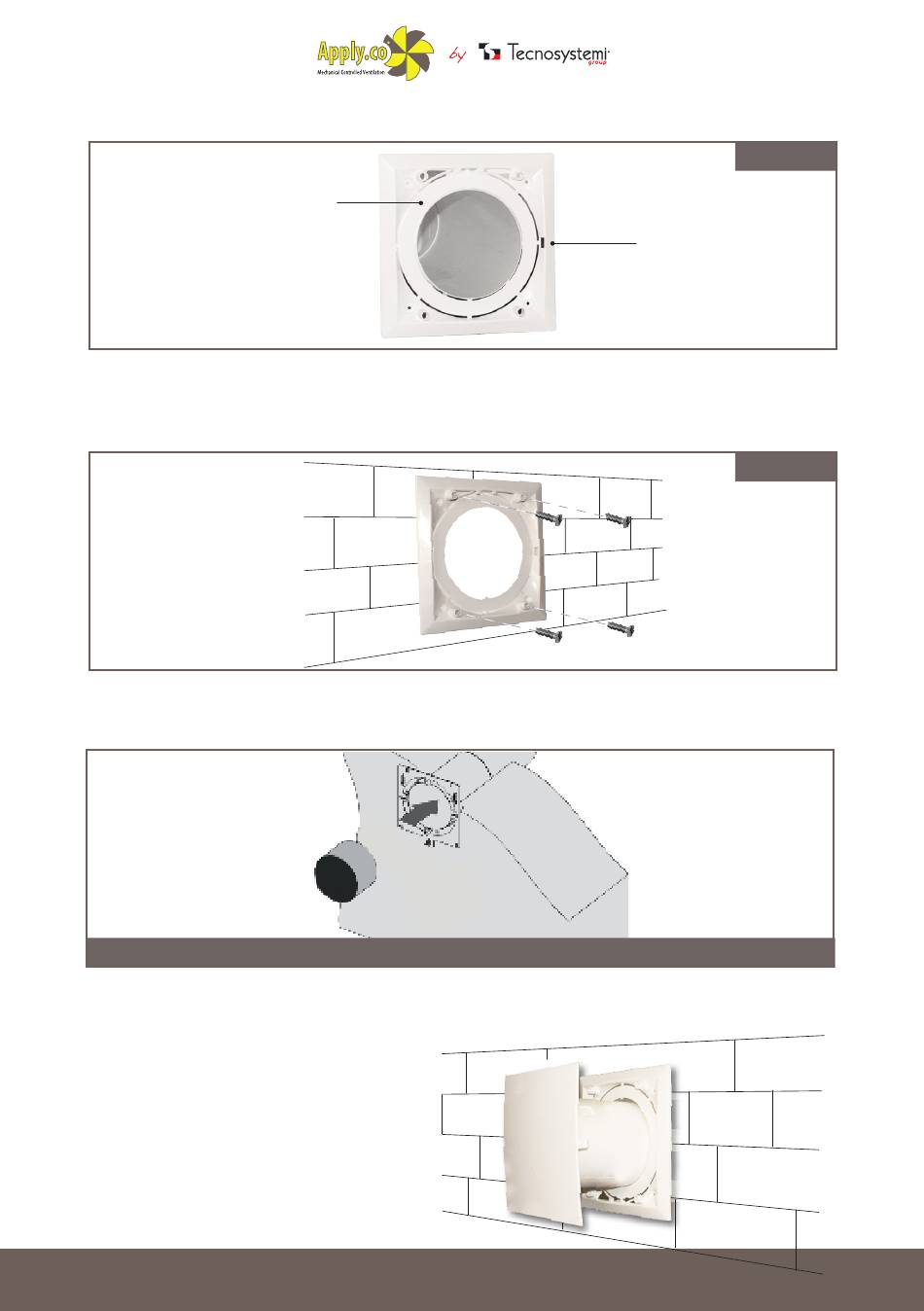

4) Align the ring to the wall with the air duct (see pic. 2)

Ghiera a muro

5) Fix the ring making four holes in the wall and using the four 4x30 screws and the four

dowels included in the supply. (see pic. 3)

6) Install the assembly consisting of motor and filter.

PICO CLEAN WI

7) Attach the fan unit to the wall ring

Multi - Zone

Air Control System

Instruments &

Ventilation

Tools

Solutions

Accessories

For Heating

fig.2

Condotto dell'aria

fig.3
