POWERING THE BOARD

The AD1937/AD1939 evaluation board requires power supply
input of ±12 V dc and ground to the three binding posts; +12 V
draws ~250 mA, and −12 V draws ~100 mA. The on-board
regulators provide two 3.3 V rails and one 5.0 V rail. The 3.3 V
rails supply AVDD and DVDD for the AD1937/AD1939; DVDD
also supplies power for the peripheral active components on the
board. The 5.0 V rail provides voltage only to the AD1937/
AD1939 internal regulator, which consists of a PNP pass tran-
sistor and a few passive components. The PNP is driven into
3.3 V regulation by the VDRIVE pin of the AD1937/AD1939,
with the VSUPPLY and VSENSE pins acting as power and
feedback for the regulator. An appropriate sized PNP can supply
3.3 V to the AVDD and DVDD pins of the AD1937/AD1939.

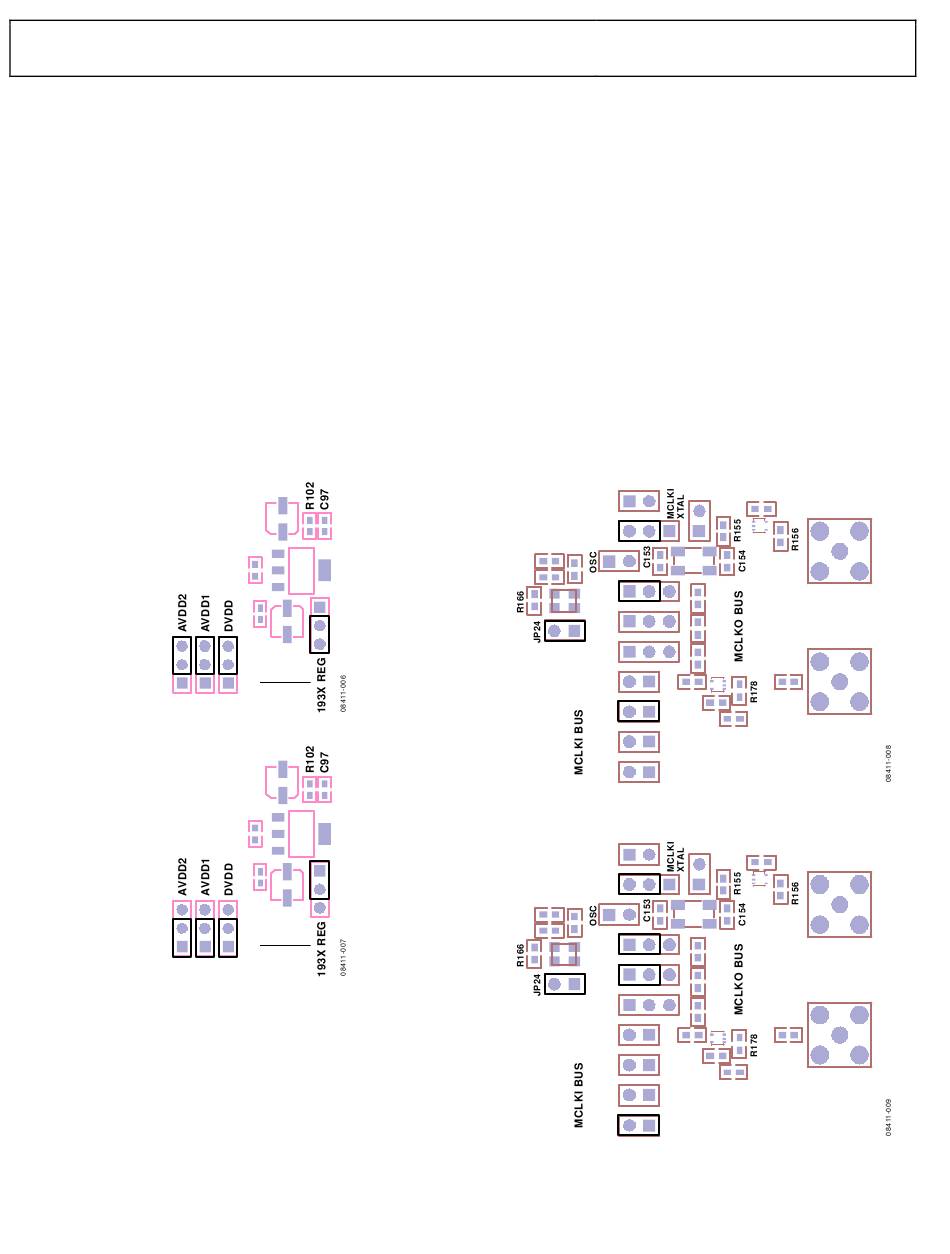

The jumper blocks are shown in Figure 6 and Figure 7.
MAIN REGS
193X REG
JP5 JP6 JP7
Figure 6. AD1939 Main Regulators Active
MAIN REGS
193X REG
JP5 JP6 JP7
Figure 7. AD1939 Internal Regulator Active
The first step in using the AD1937/AD1939 internal regulator is
to provide power to the regulator circuit by moving the AD1937/
AD1939 REG jumper from DISABLE to ENABLE, as shown in
Figure 7. Three discrete jumpers allow the AD1937/AD1939 to
be run from either the main AVDD and DVDD regulators or
the AD1937/AD1939 internal regulator. These jumpers also
allow measurement of current drawn by the individual sections
of the AD1937/AD1939. The only components on the AD1937/
AD1939 side of the jumper are the AD1937/AD1939 and the
supply decoupling capacitors.
C96
Q1
R117
C122
JP15
ENABLE
DISABLE
C96
Q1
R117
C122
JP15
ENABLE
DISABLE
