UG-040
Evaluation Board User Guide

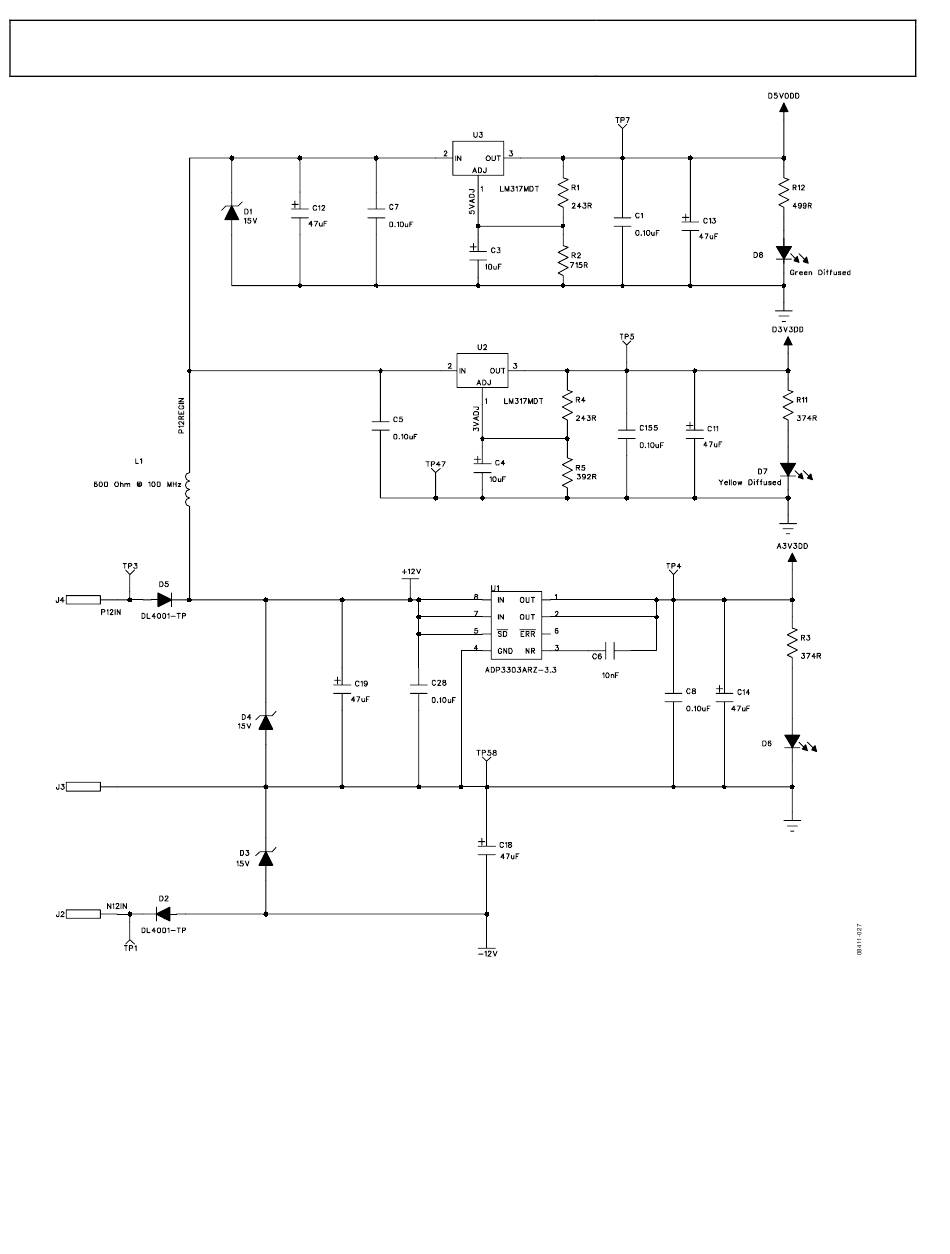

Figure 27. Board Schematics, Page 9—Power Supply
Rev. 0 | Page 18 of 32
