ADP5350CP-EVALZ User Guide
USING THE EVALUATION BOARD
POWERING UP THE EVALUATION BOARD
The
ADP5350CP-EVALZ
evaluation board is supplied fully
assembled and tested. Before applying power to the evaluation
board, follow the procedures in this section.
Input Jumpers
Because VIN123 and VIN4 must be connected to VSYS, the
input jumpers, S1 and S2, are shunted by default.
2
TO USB I
C
DONGLE
BATTERY
OR
BATTERY
SIMULATOR
Figure 15.
ADP5350CP-EVALZ
Quick Start
A typical test setup follows:
1.
Connect the
USB port to the
2.
Use a dc power supply to connect VBUS and GND on the
ADP5350CP-EVALZ. Set the VBUS supply to 5. 0 V, and
turn the power on. If evaluation of the charge function is
not required, skip this step.
3.
Use a charged battery or a battery simulator to connect
ISOB and GND.
4.
Start the GUI software.
LDO1
LDO2
LDO3
OUTPUT
OUTPUT
OUTPUT
SYSTEM
DC 5V
LOAD
SUPPLY

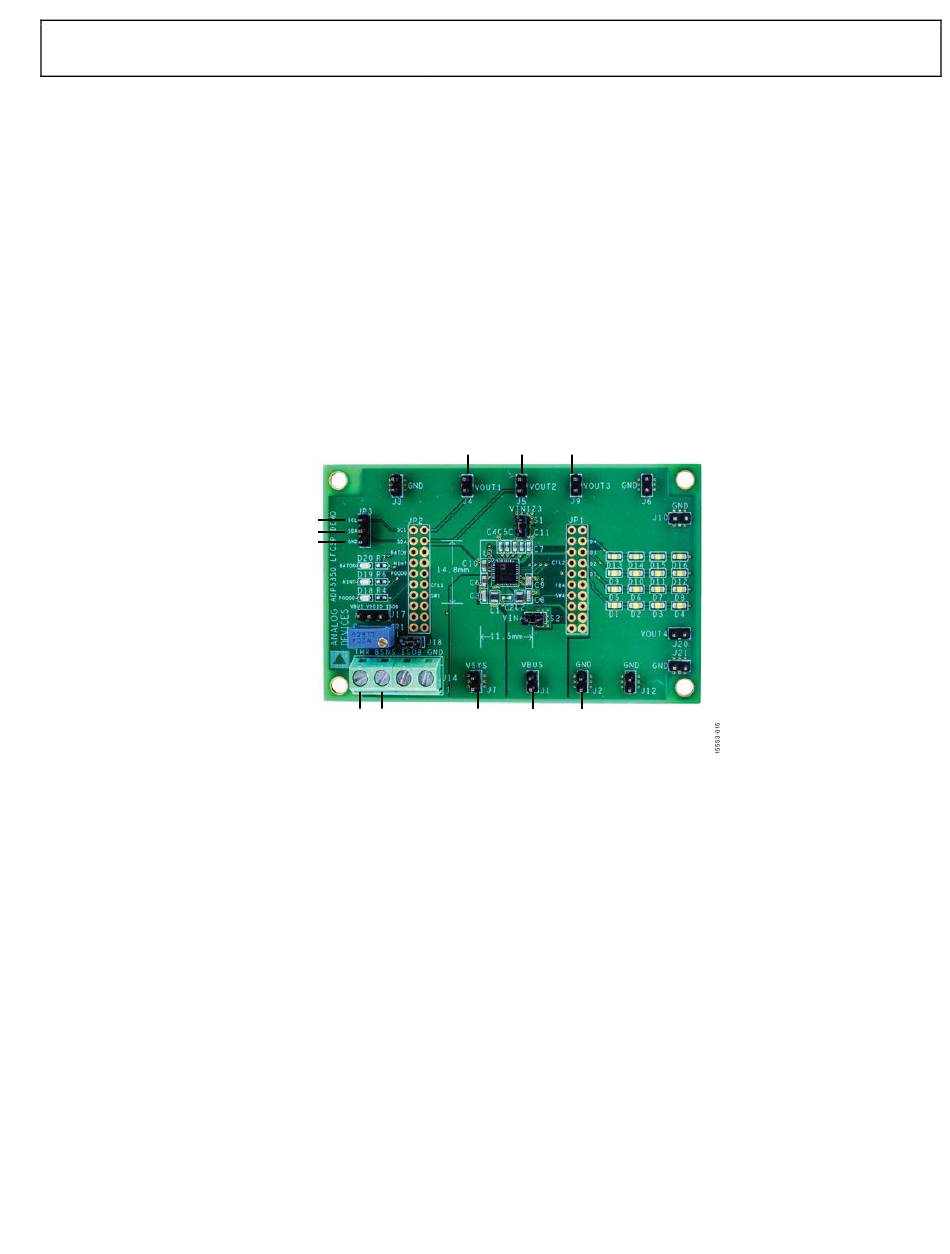

LFCSP Board Connection Diagram
Rev. 0 | Page 9 of 15
USB-SDP-CABLEZ
cable from the computer
ADP5350CP-EVALZ
evaluation board.
UG-1104
