One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating of Optical Sensors with the EVAL-ADPDM3Z Evaluation Board
FEATURES
ADPD1080
full configuration
Register level
Parameter level
Graph views
Time series view
Gesture recognition view
Triangulation view
UDP transfer capability
EVALUATION KIT CONTENTS
EVAL-ADPDM3Z standard evaluation board
USB-C cable
ADDITIONAL EQUIPMENT NEEDED
PC running Windows® 7 operating system
ONLINE RESOURCES
ADPD1080
data sheet
ADPD2140
data sheet
Applications Wavetool
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

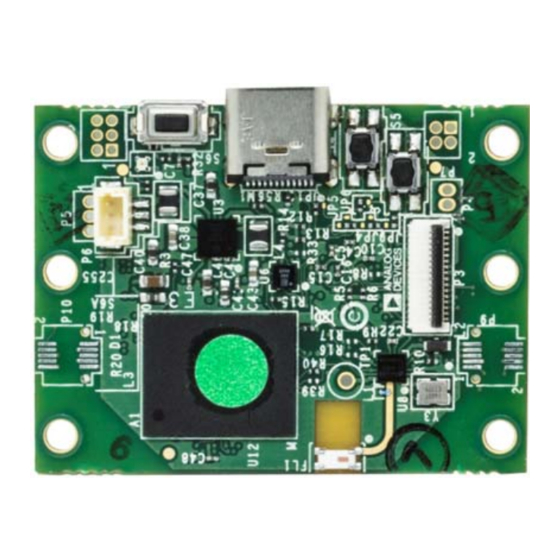

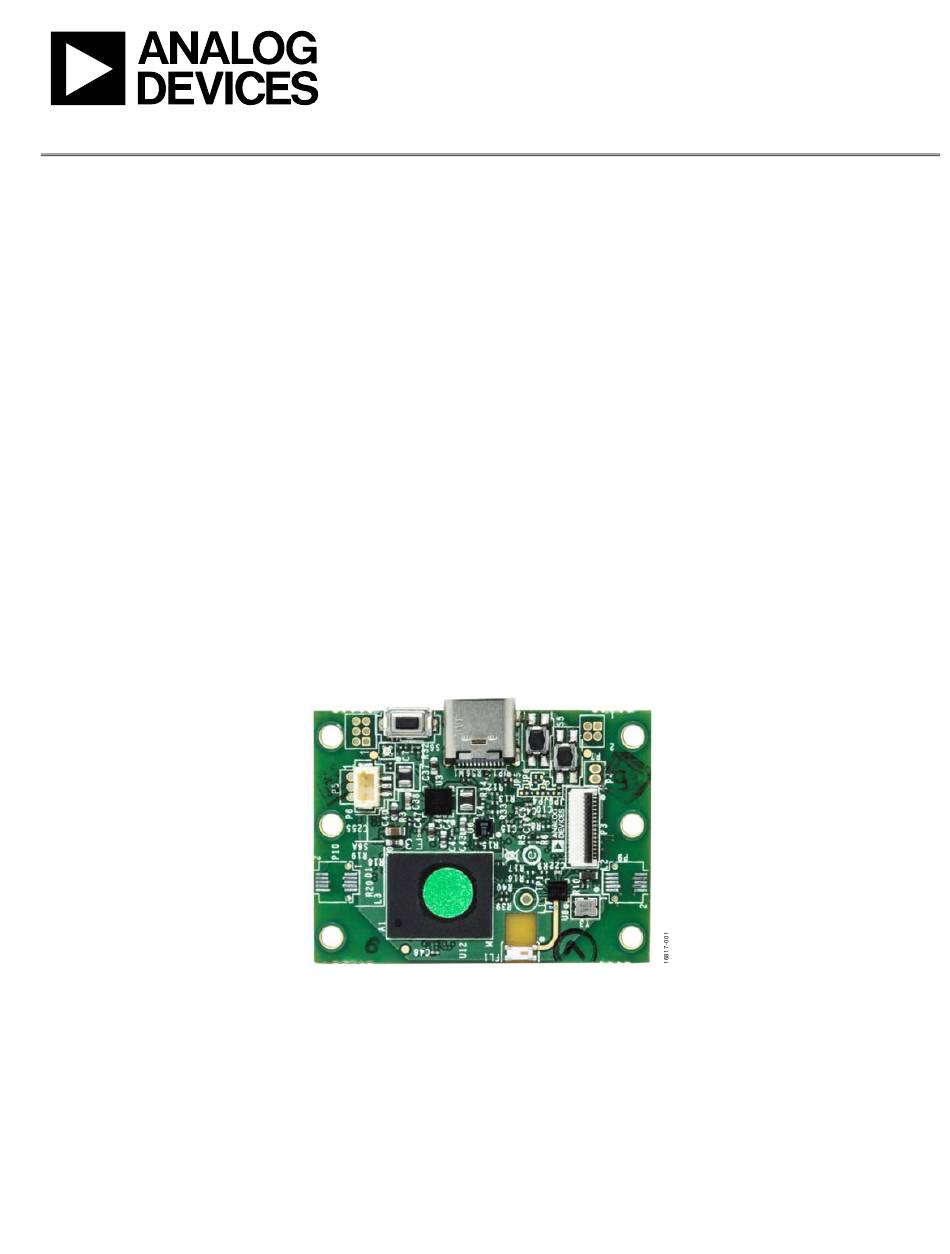

EVAL-ADPDM3Z EVALUATION BOARD PHOTOGRAPH
Rev. 0 | Page 1 of 7
EVAL-ADPDM3Z
GENERAL DESCRIPTION
The EVAL-ADPDM3Z evaluation kit provides users with a
simplified means of interfacing with optical sensor products from
Analog Devices, Inc. Supported sensor daughter boards include the
EVAL-ADPD2140Z
and the EVAL-ADPD1080Z-PRX.
The evaluation kit includes the EVAL-ADPDM3Z evaluation
board (requires the
Applications
loaded from the EVAL-ADPDM3Z product page). The evaluation
board features a graphical user interface (GUI) that provides users
with low level and high level configurability, real-time data analysis,
and user datagram protocol (UDP) transfer capability so that the
evaluation board can easily interface to a PC.
The USB port of the PC powers the EVAL-ADPDM3Z evaluation
board and provides power to any connected daughter boards.
The evaluation board schematics indicate signal names for
simplified identification (see Figure 8).
Figure 1.
User Guide
UG-1282
Wavetool, which can be down-
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADPDM3Z
Summary of Contents for Analog Devices EVAL-ADPDM3Z
-
Page 1: Features
EVAL-ADPDM3Z standard evaluation board evaluation board can easily interface to a PC. USB-C cable The USB port of the PC powers the EVAL-ADPDM3Z evaluation ADDITIONAL EQUIPMENT NEEDED board and provides power to any connected daughter boards. PC running Windows® 7 operating system... -
Page 2: Table Of Contents
General Description ................. 1 Configuring the EVAL-ADPD2140Z OR EVAL-ADPD1080Z- PRX Evaluation BOARDS ............4 EVAL-ADPDM3Z Evaluation Board Photograph ....... 1 Evaluation Board Schematics and Artwork ........5 Revision History ................2 REVISION HISTORY 8/2018—Revision 0: Initial Version Rev. 0 | Page 2 of 7... -
Page 3: Evaluation Board Software Quick Start Procedures
EVAL-ADPD2140Z EVAL-ADPD1080Z-PRX daughter board to the EVAL-ADPDM3Z evaluation board via the board-to-board connectors (see Figure 4). Connect the EVAL- ADPDM3Z evaluation board to a PC via the USB-C cable included with the evaluation kit. The PC tries to find the device drivers Figure 6. -
Page 4: Updating The Eval-Adpdm3Z Firmware
CONFIGURING THE EVAL-ADPD2140Z EVAL- ADPD1080Z-PRX EVALUATION BOARDS If the EVAL-ADPDM3Z firmware is out of date, the software displays a warning, as shown in Figure 7. If this occurs, click To operate the EVAL-ADPD2140Z EVAL-ADPD1080Z-PRX Tools > Firmware Update from the main window, and click Ok... -
Page 5: Evaluation Board Schematics And Artwork
EVAL-ADPDM3Z User Guide UG-1282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 8. EVAL-ADPDM3Z Evaluation Board Schematic Rev. 0 | Page 5 of 7... - Page 6 UG-1282 EVAL-ADPDM3Z User Guide Figure 9. EVAL-ADPDM3Z Evaluation Board Schematic Rev. 0 | Page 6 of 7...
- Page 7 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
