UG-177

DEFAULT SWITCH AND JUMPER SETTINGS

The J8, J10, J12, and J17 jumpers must be connected and
jumper J3 should be set to the "USB/EXT" power setting. The
MP pin jumpers (J9) can be connected as desired to use MP
pushbuttons or switches. The mic bias jumpers J11 and J14 can
be inserted if microphone bias is needed on inputs 0 and 1.
Switch S7 selects whether the board is to be powered up or if
audio is to be bypassed from input to output with the board
powered down. For normal operation the switch should be slid
to the left. S1 selects whether the ADAU1772 is to be powered
from 3.3 V or 1.8 V, the default is 3.3 V. If powering the board
via USBi it is important to make sure that the switch on the
bottom of the USBi board is set to the correct voltage (1.8 V or
3.3 V). S2 controls self-boot operation, by default it should be
slid to the right to disable self-boot.

POWERING UP THE BOARD

To power up the board, connect the ribbon cable of the USBi
to J1 (CONTROL PORT) of the EVAL-ADAU1772Z.

CONNECTING THE AUDIO CABLES

Connect a stereo audio source to J22 (AIN2/3). Connect head-
phones or powered speakers to J23 (Stereo Output). The labels
for J22 and J23 are only visible on the bottom of the board.

SETTING UP COMMUNICATIONS IN SIGMASTUDIO

Start SigmaStudio by double-clicking the shortcut on the desktop.
Click File...New Project or press Ctrl+N to create a new project.
The default view of the new project is called the Hardware
Configuration tab.
To use the USBi in conjunction with SigmaStudio, first select it
in the Communication Channels subsection of the toolbox on the
left side of the Hardware Configuration tab, and add it to the project
space by clicking and dragging it to the right (seeFigure 11).

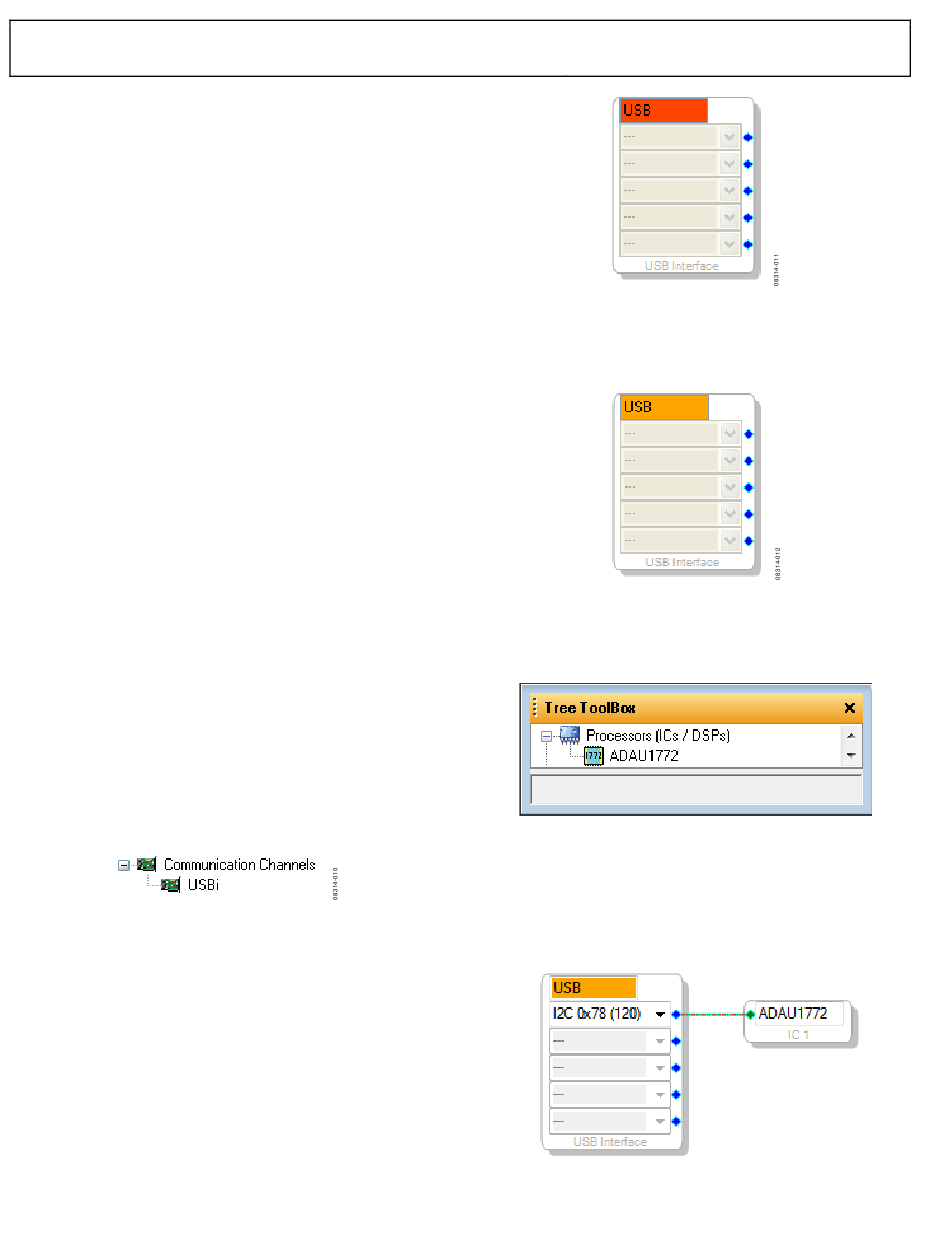

Figure 11. Adding the USBi Communication Channel
If SigmaStudio cannot detect the USBi on the USB port of the
computer, then the background of the USB label will be red
(seeFigure 12). This may happen when the USBi is not connected
or when the drivers are incorrectly installed.
Figure 12. USBi Not Detected by SigmaStudio
If SigmaStudio detects the USBi on the USB port of the computer,
the background of the USB label changes to orange (see Figure
13).
Figure 13. USBi Detected by SigmaStudio
To add an ADAU1772 to the project, select it from the
Processors (ICs / DSPs) list and drag it to the project space
(see Figure 14).
To use the USB interface to communicate with the target IC,
connect it by clicking and dragging a wire between the blue pin
of the USBi and the green pin of the IC (seeFigure 15). The
corresponding drop-down box of the USBi automatically fills
with the default mode and channel for that IC.
Figure 15. Connecting the USB Interface to an ADAU1772 IC
Rev. 0 | Page 6 of 27
Evaluation Board User Guide
Figure 14. Adding an ADAU1772
