Figure 10. External Clock In as Master; the AD1939 and CPLD as Slaves
193X_MCLKI
DISABLE
JP18
JP19
1938_MCLKI
JP22
R160
L7
C158
JP23
CPLD
U21
JP25
HDR2
JP27
OSC DISABLE
HDR1
JP28
EXT
CLK
JP29
8416
JP30
HDR2
JP31
HDR1
Figure 11. Active On-Board Oscillator as Master; the AD1939 and
CPLD as Slaves

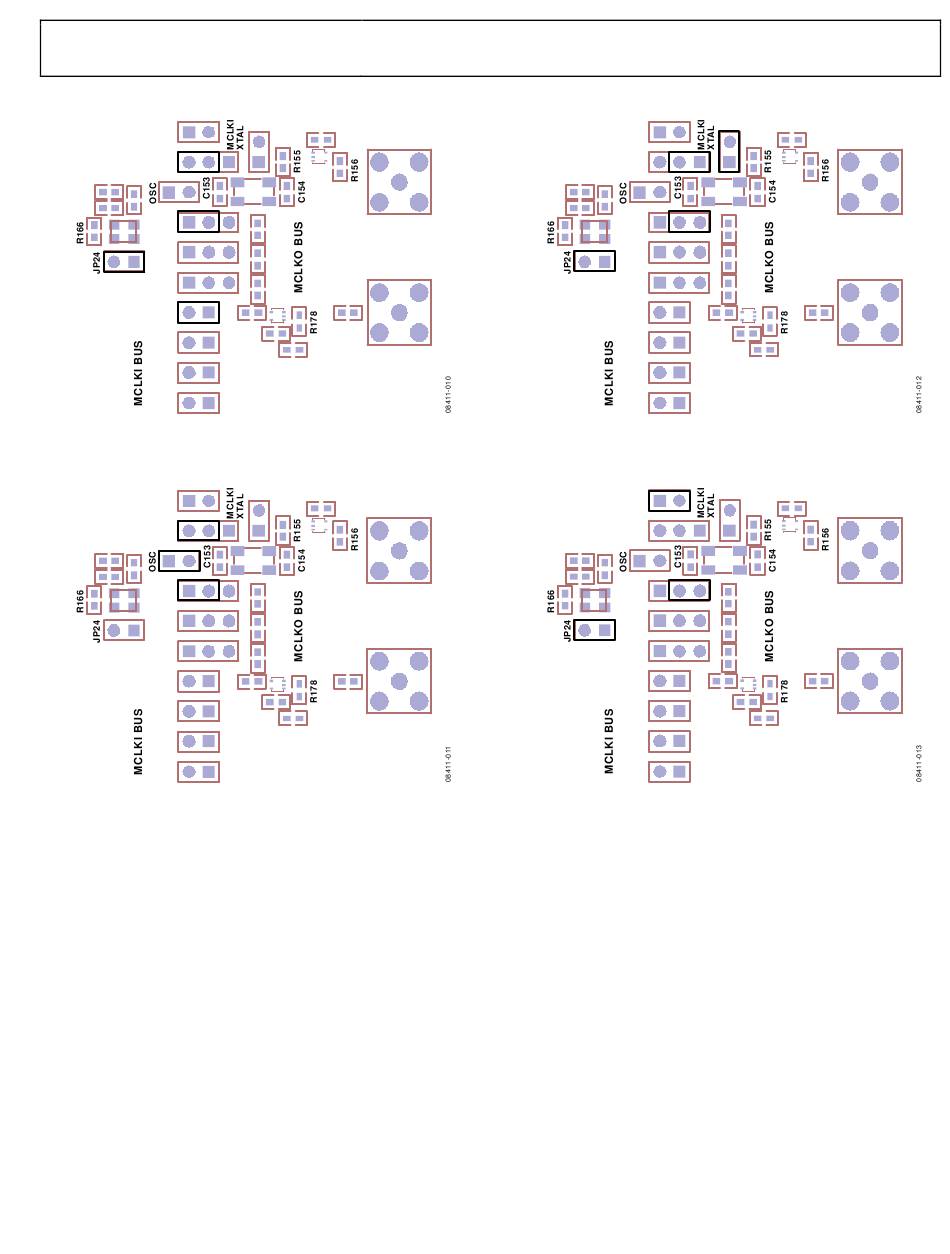

The MCLK configurations shown in Figure 12 and Figure 13
use the AD1937/AD1939 MCLKO port to drive the CPLD and,
possibly, the HDRs. The passive crystal runs the AD1937/AD1939
at 12.288 MHz. Figure 13 shows the MCLKI shut off; this is the
case when the PLL is set to lock to LRCLK instead of to MCLK.
JP20
C147
MCLKO
XTAL
U18
Y1
193X_MCLKO
R167
R169
R172
U22
R174
R175
C168
EXT CLK IN
C170
JP20 C147
MCLKO
XTAL
U18
Y1
193X_MCLKO
R167
R169
R172
U22
R174 R175
C168
EXT CLK IN
C170
J22
1938_MCLKI
L7
C158
J23
OSC DISABLE
Figure 12. Passive Crystal; the AD1939 Is Master and the CPLD Is Slave from
J22
1938_MCLKI
L7
C158
J23
OSC DISABLE
Figure 13. LRCLK Is the Master Clock Using the PLL; MCLKI Is Disabled, and

CONFIGURING THE PLL FILTER

The PLL for the AD1937/AD1939 can run from either MCLK
or LRCLK, according to its setting in the PLL and Clock Control 0
register, Bits[6:5]. The matching RC loop filter must be con-
nected to LF (Pin 61) using JP15. See Figure 14 and Figure 15
for the jumper positions.
