USING THE EVALUATION BOARD

POWERING UP THE EVALUATION BOARD

The ADP5360CB-EVALZ evaluation board is supplied fully
assembled and tested. Before supplying power to the evaluation
board, follow the procedures detailed in the Input Jumpers
section and Quick Start section. See Figure 17 for component
locations.
Input Jumpers
Because VIN1 and VIN2 must be connected to VSYS, the input
jumpers, S1 and S2, are shunted by default.
Set the ENSD jumper high to enable
After a Li-ion battery or battery simulator is connected to the
ADP5360CB-EVALZ board, set the ENSD jumper low to
disable shutdown mode.
Either set the ENCHG jumper to the high side or set the
EN_CHG bit (see Figure 10) high in the GUI to enable the
charger.
Set the EN1 jumper to the high side and click EN_BUCK in the
Buck Setting section (see Figure 12) to set the EN_BUCK bit
high to enable the buck regulator.
User Guide
ADP5360 shutdown mode.
BUCK-BOOST OUTPUT
BUCK OUTPUT DC 5V SUPPLY

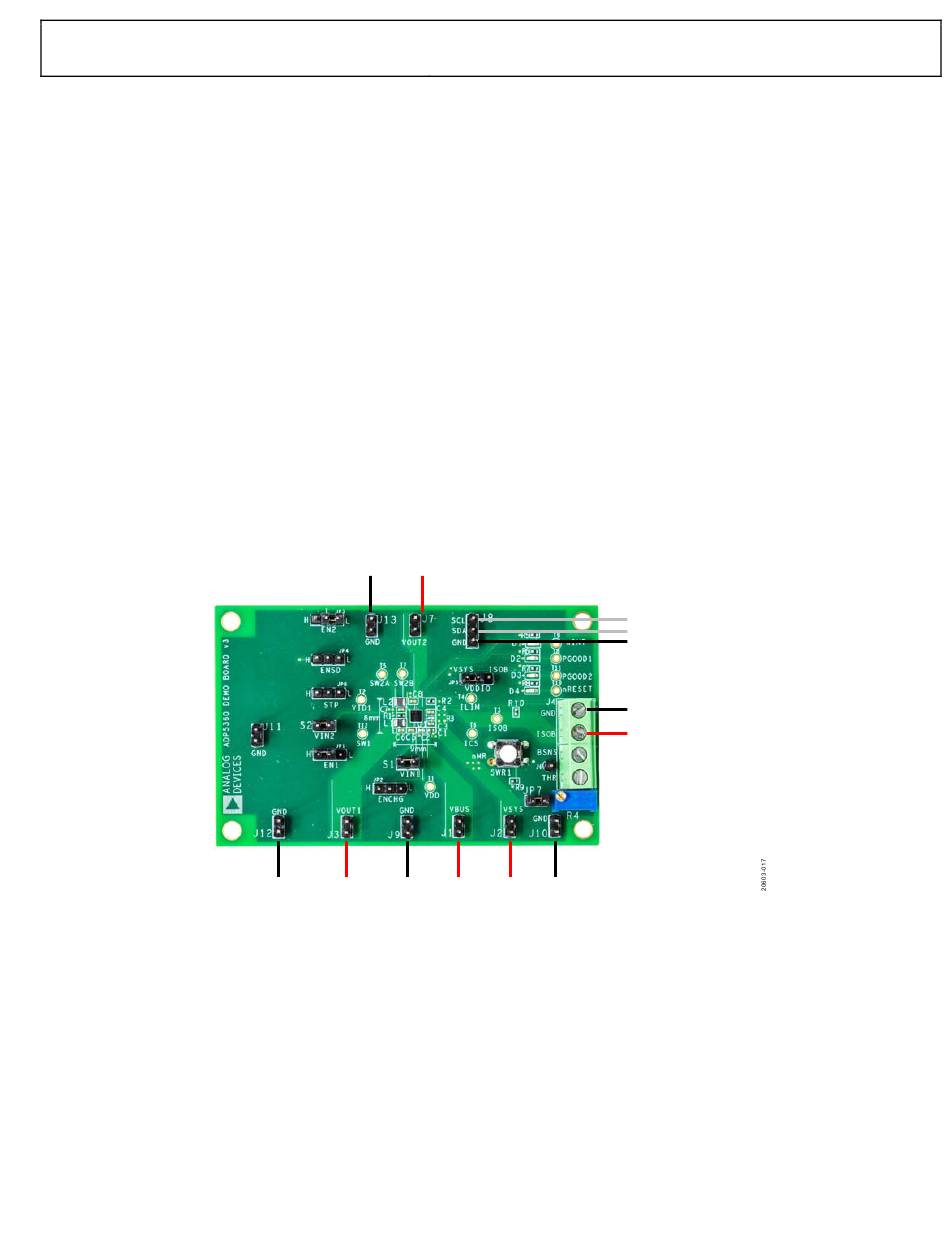

Figure 17. ADP5360CB-EVALZ WLCSP Board Connection Diagram
Either set the EN2 jumper to the high side or set the
EN_BUCKBST bit in the Buck Boost Setting section (see
Figure 12) high to enable the buck boost regulator.
Set the VDDIO jumper to VSYS or ISOB to select the logic
voltage source.
Quick Start
Adhere to the following steps to construct a typical test setup:
1. Connect the
port to the ADP5360CB-EVALZ evaluation board.
2. Set the dc power supply to 5 V and connect the power
supply to the on-board VBUS and GND to a dc power
supply. Skip this step if the charge function does not need
to be evaluated.
3. Use a charged battery or a battery simulator to connect to
the ISOB and GND nodes.
4. Start the GUI software.
SYSTEM OUTPUT
Rev. 0 | Page 11 of 18
USB-SDP-CABLEZ cable from the PC USB
2
TO USB I C DONGLE
BATTERY OR
BATTERY SIMULATOR
UG-1571
