POWERING UP THE BOARD

The evaluation board, as configured from the factory, uses the
local LDOs for power where necessary. A ±15 V dc lab supply
must be connected to the board. Test points (yellow and white)
are provided for these external supplies.

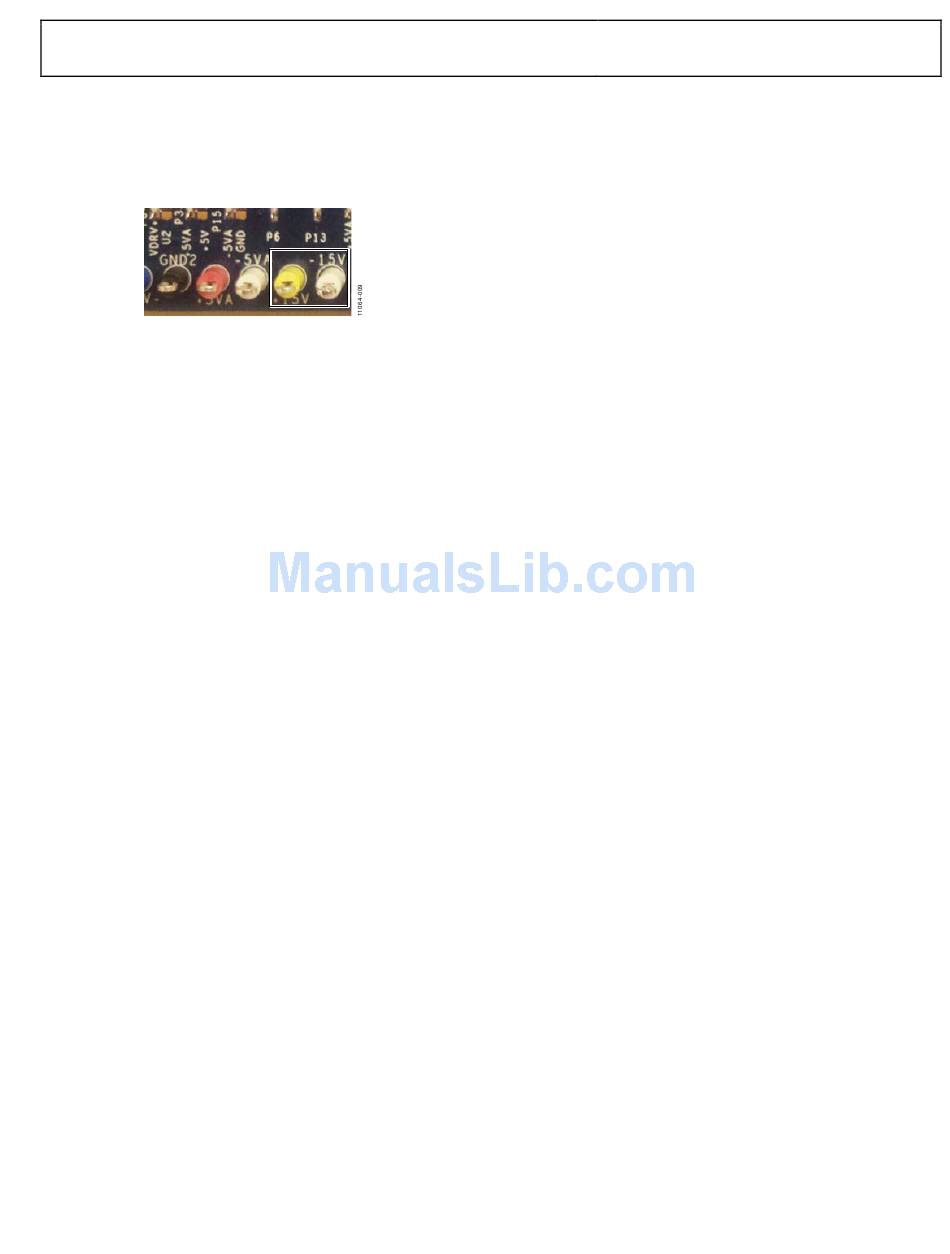

Figure 17. Test Points
RUNNING THE SOFTWARE WITH THE HARDWARE
CONNECTED
The evaluation board includes software for analyzing the
ADAS3022. The EVAL-CED1Z
software. The software is used to perform the following tests:
•
Histogram tests for determining code transition noise (dc)
•
Time domain analysis
•
Fast Fourier transforms (FFT) for signal-to-noise ratio
(SNR), SNR and distortion (SINAD), total harmonic
distortion (THD), and spurious free dynamic range (SFDR)
is required when using the
This evaluation software should be located at
<local_drive>:\Program Files\Analog Devices\ADAS3022
Evaluation Software.
In order to launch the software, click Start>All Programs>
Analog Devices\ADAS3022 Evaluation Software. You can
then apply the signal source and capture the data.
To uninstall the program, click Start>Control Panel>Add or
Remove Programs>Analog Devices ADAS3022 Evaluation
Software.
Refer to Figure 18 to Figure 31 for further details and features of
the software.
