ADV7180 EVALUATION NOTE
EVAL-ADV7180LFEBZ, EVAL-ADV7180LQEBZ
& EVAL-ADV7180-32EBZ
ADV7180 Video Decoder Evaluation Boards
EVAL-ADV7180EB Application Note
Video Group Limerick
Rev.B November 2009
Analog Devices B.V.
1 of 54

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-ADV7180LFEBZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-ADV7180LFEBZ

Summary of Contents for Analog Devices EVAL-ADV7180LFEBZ

  • Page 1 ADV7180 EVALUATION NOTE EVAL-ADV7180LFEBZ, EVAL-ADV7180LQEBZ & EVAL-ADV7180-32EBZ ADV7180 Video Decoder Evaluation Boards EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 1 of 54...

  • Page 2: Table Of Contents

    ADV7180 40-pin LFCSP Eval Board Layer Information ......24 ADV7180 64-pin LQFP Eval Board Layout Information......30 ADV7180 32-pin LFCSP Eval Board Layer Information ......36 BOMs ....................... 42 Figures Index ....................54 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 2 of 54...

  • Page 3: Introduction

    Introduction The ADV7180 is available in three packages, 64-pin LQFP, 40-pin LFCSP and 32-pin LFCSP. The EVAL-ADV7180LFEBZ employs the 40-pin LFCSP packaged decoder, the EVAL-ADV1780LQEBZ employs the 64-pin LQFP packaged decoder, and the EVAL- ADV7180-32EBZ employs the 32-pin LFCSP packaged decoder. This application note is intended to provide application support for the ADV7180 evaluation boards.

  • Page 4: Configuring Adv7180 Modes Using Script Files

    Figure 2 illustrates how a script file can be accessed and selected from the drop down menu EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 4 of 54...
  • Page 5 Figure 2 Configuration of ADV7180 with ADV Register Control S/W EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 5 of 54...

  • Page 6: Board-Level Description

    PSU Test Points 7.5V DC 28.63636MHz Xtal S-Video (Y/C) Y/CVBS CVBS/Y Pb/Y Pr/C ADV7180-LFCSP USB I ADV7391 Encoder Decoder PC Control Figure 3 EVAL-ADV7180LFEBZ Evaluation Board EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 6 of 54...
  • Page 7 Pb/Y Pb/Y Pr/C Pr/C ADV7391 Encoder ADV7391 Encoder ADV7180-LFCSP ADV7180-LFCSP USB I USB I Decoder Decoder PC Control PC Control Figure 4 EVAL-ADV7180-32EBZ Evaluation Board EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 7 of 54...

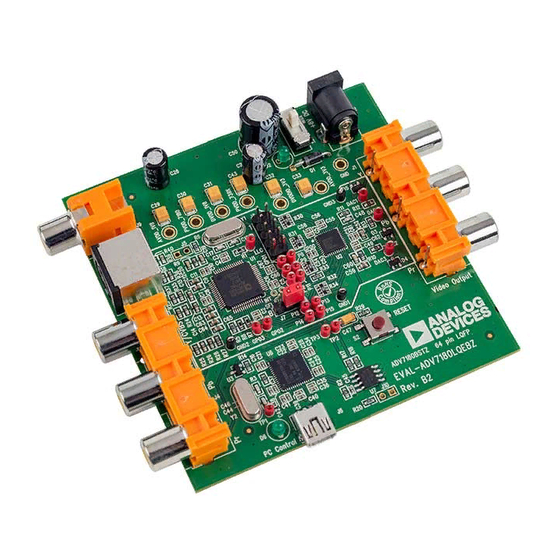

  • Page 8 PSU Test Points 28.63636MHz Xtal CVBS Y/CVBS S-Video (Y/C) Pb/Y CVBS/Y Pr/C ADV7180-LQFP USB I ADV7391 Encoder Decoder PC Control Figure 5 EVAL-ADV7180LQEBZ Evaluation Board EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 8 of 54...

  • Page 9: Schematics

    Figure 21 to Figure 38 provides layout information for the boards. Table 1, Table 2 and Table 3 list the current BOMs. ADV7180 – 40-pin LFCSP Package Figure 6 EVAL-ADV7180LFEBZ -Decoder Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V.
  • Page 10 Figure 7 EVAL-ADV7180LFEBZ -PC Interface Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 10 of 54...
  • Page 11 Figure 8 EVAL-ADV7180LFEBZ - PSU Regulation Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 11 of 54...
  • Page 12 Figure 9 EVAL-ADV7180LFEBZ -Input Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 12 of 54...
  • Page 13 Figure 10 EVAL-ADV7180LFEBZ Encoder Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 13 of 54...

  • Page 14: Adv7180 - 64-Pin Lqfp Package

    ADV7180 – 64-pin LQFP Package Figure 11 ADV7180 LQFP-Decoder Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 14 of 54...
  • Page 15 Figure 12 ADV7180 LQFP -PC Interface Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 15 of 54...
  • Page 16 Figure 13 ADV7180 LQFP-PSU Regulation Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 16 of 54...
  • Page 17 Figure 14 ADV7180 LQFP Input Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 17 of 54...
  • Page 18 Figure 15 ADV7180 LQFP-Encoder Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 18 of 54...

  • Page 19: Adv7180 - 32-Pin Lfcsp Package

    ADV7180 – 32-pin LFCSP Package Figure 16 ADV7180 32-pin LFCSP-Decoder Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 19 of 54...
  • Page 20 Figure 17 ADV7180 32-pin LFCSP-Encoder Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 20 of 54...
  • Page 21 Figure 18 ADV7180 32-pin LFCSP-PC Interface Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 21 of 54...
  • Page 22 Figure 19 ADV7180 32-pin LFCSP-Input Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 22 of 54...
  • Page 23 Figure 20 ADV7180 32-pin LFCSP-PSU Regulation Section EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 23 of 54...

  • Page 24: Adv7180 40-Pin Lfcsp Eval Board Layer Information

    ADV7180 40-pin LFCSP Eval Board Layer Information Figure 21 ADV7180 40-pin LFCSP Silkscreen EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 24 of 54...
  • Page 25 Figure 22 ADV7180 40-pin LFCSP Comp Side Layer 1 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 25 of 54...
  • Page 26 Figure 23 ADV7180 40-pin LFCSP - Ground Planes Layer 2 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 26 of 54...
  • Page 27 Figure 24 ADV7180 40-pin LFCSP Power Planes Layer 3- EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 27 of 54...
  • Page 28 Figure 25 ADV7180 40-pin LFCSP Solder Side Layer 4 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 28 of 54...
  • Page 29 Figure 26 ADV7180 40-pin LFCSP Silkscreen Underside of Board EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 29 of 54...

  • Page 30: Adv7180 64-Pin Lqfp Eval Board Layout Information

    ADV7180 64-pin LQFP Eval Board Layout Information Figure 27 EVAL-ADV7180LQEBZ Silkscreen EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 30 of 54...
  • Page 31 Figure 28 EVAL-ADV7180LQEBZ Comp Side Layer 1 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 31 of 54...
  • Page 32 Figure 29 EVAL-ADV7180LQEBZ Ground Planes Layer 2 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 32 of 54...
  • Page 33 Figure 30 EVAL-ADV7180LQEBZ Power Planes Layer 3 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 33 of 54...
  • Page 34 Figure 31 EVAL-ADV7180LQEBZ Solder Side Layer 4 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 34 of 54...
  • Page 35 Figure 32 EVAL-ADV7180LQEBZ Silkscreen Underside of board EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 35 of 54...

  • Page 36: Adv7180 32-Pin Lfcsp Eval Board Layer Information

    ADV7180 32-pin LFCSP Eval Board Layer Information Figure 33 EVAL-ADV7180-32EBZ Silkscreen EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 36 of 54...
  • Page 37 Figure 34 ADV7180 32-pin LFCSP Comp Side Layer 1 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 37 of 54...
  • Page 38 Figure 35 ADV7180 32-pin LFCSP - Ground Planes Layer 2 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 38 of 54...
  • Page 39 Figure 36 ADV7180 32-pin LFCSP Power Planes Layer 3 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 39 of 54...
  • Page 40 Figure 37 ADV7180 32-pin LFCSP Solder Side Layer 4 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 40 of 54...
  • Page 41 Figure 38 ADV7180 32-pin LFCSP Silkscreen Underside of Board EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 41 of 54...

  • Page 42: Boms

    33uF ±10% CAP\TAJ_B CAP+ 33uF ±10% CAP\TAJ_B 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 10nF ±10% C0402 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 42 of 54...
  • Page 43 TESTPOINT POWER TESTPOINT- DVDD_1V8 TESTPOINT POWER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER EMC_FILTER 4700pF (+80%- EMC_FILTER EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 43 of 54...
  • Page 44 TESTPOINT TESTPOINT- PVDD_739X TESTPOINT POWER TESTPOINT- PVDD_7180 TESTPOINT POWER ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 44 of 54...
  • Page 45 TESTPOINT TESTPOINT ADV7180 LQFP64 ADV7392-3 LFCSP-40 ADM809 RSOT23-3 ADP3338-1.8V SOT223 ADP3338-3.3V SOT223 CY7C68013A LFCSP-56_RP 24LC64 SO8NB TESTPOINT- TESTPOINT SMALL XTAL1 28.63636MHz HC49 XTAL1 24MHz HC49 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 45 of 54...
  • Page 46 CAP+ 33uF ±10% CAP\TAJ_B 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 46 of 54...
  • Page 47 20%) EMC_FILTER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER (+80%- 20%) EMC_FILTER 4700pF EMC_FILTER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER TESTPOINT- POWER TESTPOINT EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 47 of 54...
  • Page 48 ±1% R0603 ±1% R0603 ±1% R0603 100K ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 ±1% R0603 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 48 of 54...
  • Page 49 TESTPOINT TESTPOINT ADV7180_LFCSP40 LFCSP-40 ADV7390_91 LFCSP-32 ADM809 RSOT23-3 ADP3338-1.8V SOT223 ADP3338-3.3V SOT223 CY7C68013A LFCSP-56_RP 24LC64 SO8NB TESTPOINT- TESTPOINT SMALL XTAL1 28.63636MHz HC49 XTAL1 24MHz HC49 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 49 of 54...
  • Page 50 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 10nF ±10% C0402 0.1uF ±10% C0402 CAP+ 33uF ±10% CAP\TAJ_B EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 50 of 54...
  • Page 51 EMC_FILTER 4700pF 20%) EMC_FILTER (+80%- EMC_FILTER 4700pF 20%) EMC_FILTER TESTPOINT TESTPOINT-POWER GND1 TESTPOINT TESTPOINT GND2 TESTPOINT TESTPOINT GND3 TESTPOINT TESTPOINT GND4 TESTPOINT TESTPOINT TESTPOINT TESTPOINT-SMALL EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 51 of 54...
  • Page 52 ±5% RESPACK_EXB38V RES_PACK_SMD_4 ±5% RESPACK_EXB38V ±1% R0603 SW-SPDT-SLIDE SW-SPDT-SLIDE SW-PUSH-SMD SW_PB_SMD_6MM TESTPOINT TESTPOINT-SMALL TESTPOINT TESTPOINT TESTPOINT TESTPOINT TESTPOINT TESTPOINT ADV7180_LFCSP32 LFCSP-32_IPC-2 ADV7390_91 LFCSP-32_IPC ADM809 RSOT23-3 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 52 of 54...
  • Page 53 ADP3338-1.8V SOT223 ADP3338-3.3V SOT223 CY7C68013A LFCSP-56_IPC-USB 24LC64 SO8NB TESTPOINT TESTPOINT-SMALL XTAL1 28.63636MHz HC49 XTAL1 24MHz HC49 EVAL-ADV7180EB Application Note Video Group Limerick Rev.B November 2009 Analog Devices B.V. 53 of 54...

  • Page 54: Figures Index

    Figure 5 EVAL-ADV7180LQEBZ Evaluation Board ............8 Figure 6 EVAL-ADV7180LFEBZ -Decoder Section ............9 Figure 7 EVAL-ADV7180LFEBZ -PC Interface Section..........10 Figure 8 EVAL-ADV7180LFEBZ - PSU Regulation Section ........11 Figure 9 EVAL-ADV7180LFEBZ -Input Section ............12 Figure 10 EVAL-ADV7180LFEBZ Encoder Section............. 13 Figure 11 ADV7180 LQFP-Decoder Section..............
