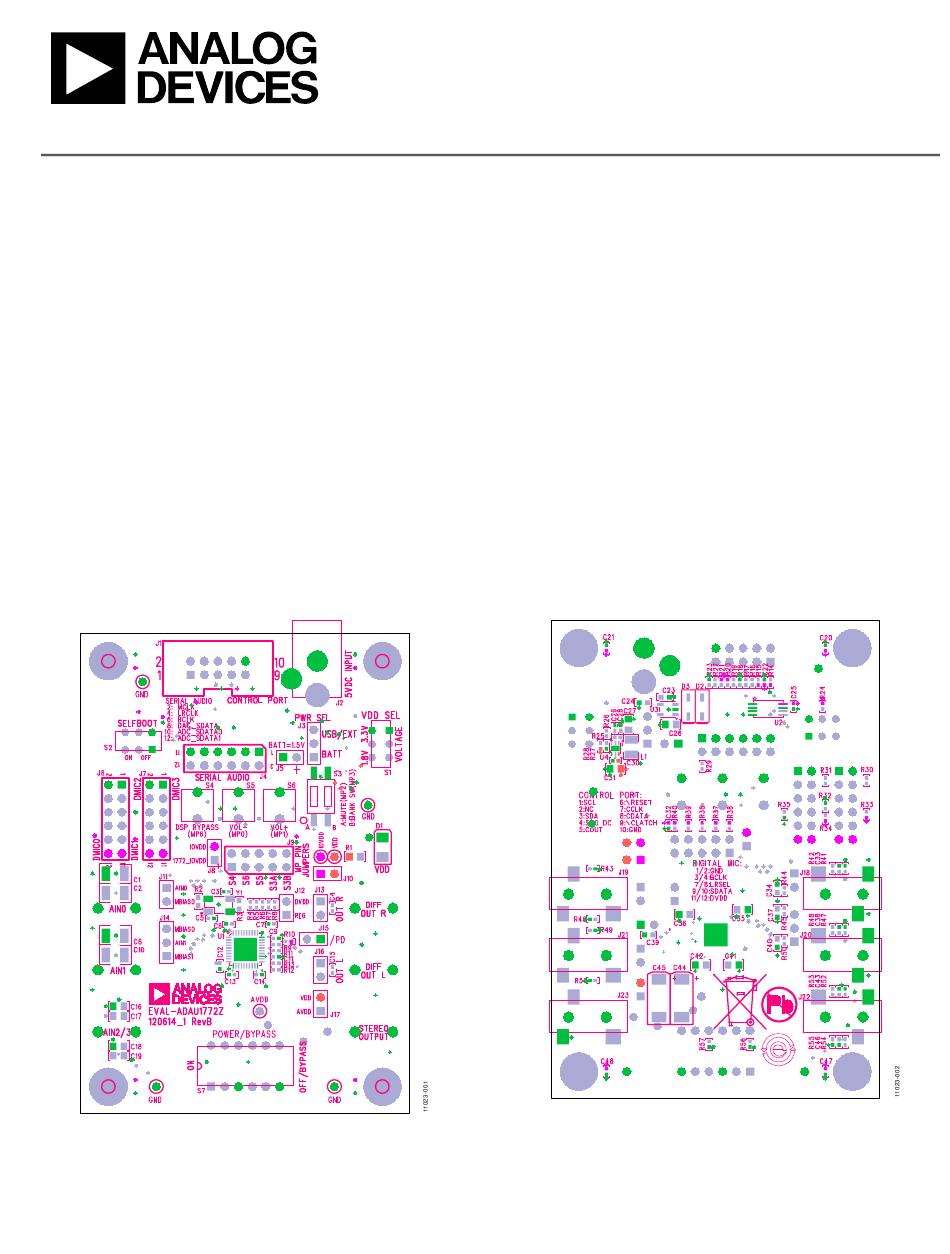

EVALUATION BOARD TOP SIDE AND BOTTOM SIDE
Evaluation Board Top Side
Evaluation Board User Guide
GENERAL DESCRIPTION
This user guide explains the design and setup of the
ADAU1772Z
evaluation board.
This evaluation board provides full access to all analog and digital
I/Os on the ADAU1772. The
Analog Devices, Inc., SigmaStudio™ software, which interfaces to
the board via a USB connection. The
powered by a single AAA battery, by the USB bus, or by a single
3.8 V to 6 V supply; any of these are regulated to the voltages
required on the board. The printed circuit board (PCB) is a 4-layer
design, with a single ground plane and a single power plane on the
inner layers. The board contains connectors for external micro-
phones and speakers. The master clock can be provided externally
or by the on-board 12.288 MHz passive crystal.
Figure 2.
Rev. A | Page 1 of 28
ADAU1772
core is controlled by
EVAL-ADAU1772Z
EVAL-ADAU1772Z
Evaluation Board Bottom Side
UG-477
www.analog.com
EVAL-
can be
