SETTING UP COMMUNICATION IN SOFTWARE

POWERING UP THE EVAL-ADAU1861EBZ
EVALUATION BOARD
To power up the EVAL-ADAU1861EBZ evaluation board, connect
the ribbon cable to P1 of the EVAL-ADAU1861EBZ.

CONNECTING THE AUDIO CABLES

Three channels of the microphone inputs support both differential
and single-end modes. The headphone output is differential and
is dc-coupled. The digital audio signal can be I
multiplexing (TDM) mode through the serial audio interface.

CREATING A BASIC SIGNAL FLOW

To create a basic signal flow in
analog.com
2
S or time division
LARK Studio, follow these steps:

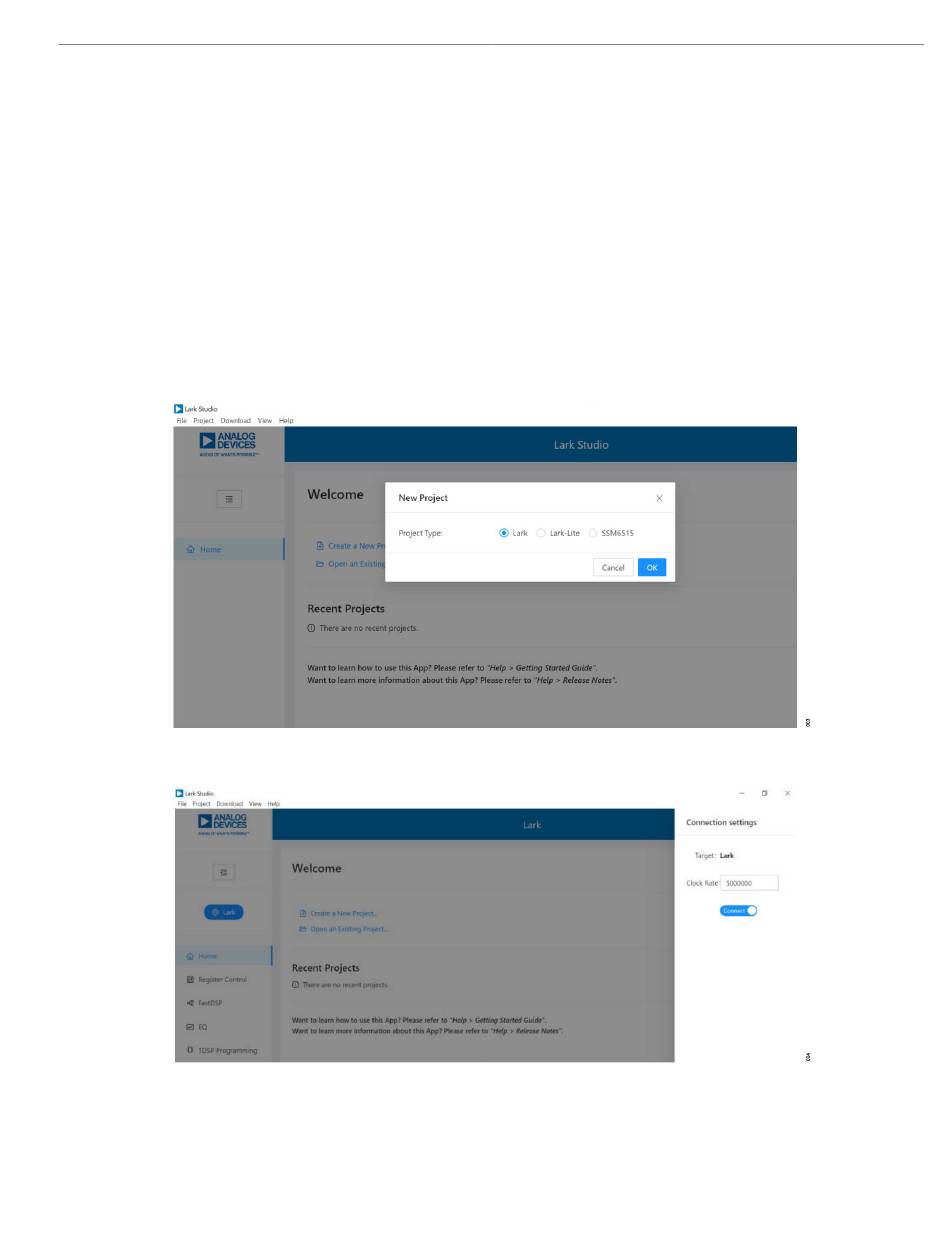

Figure 3. Create a New Project
Figure 4. Connect with EVAL-ADAU1861EBZ
EVAL-ADAU1861
1. Download and install Lark Studio from
log.com/ADAU1861.
2. Double click the Lark Studio shortcut on the PC desktop.
3. Go to the Project and select New Project from the dropdown
menu, or select Create a New Project in the Welcome section
to create a new project, as shown in
window shows the Project Type: options.
4. Select the Lark option for the
5. Edit the file name and save the file to a user-specified location.
6. Click Target Connection in the left navigation panel, and con-
figure the Connection settings panel that opens on the right to
set up the connection. If the USB connects, Target Connected
displays (see Figure 4).
www.ana-
Figure 3. The New Project
ADAU1861 and then OK.
Rev. 0 | 5 of 24
