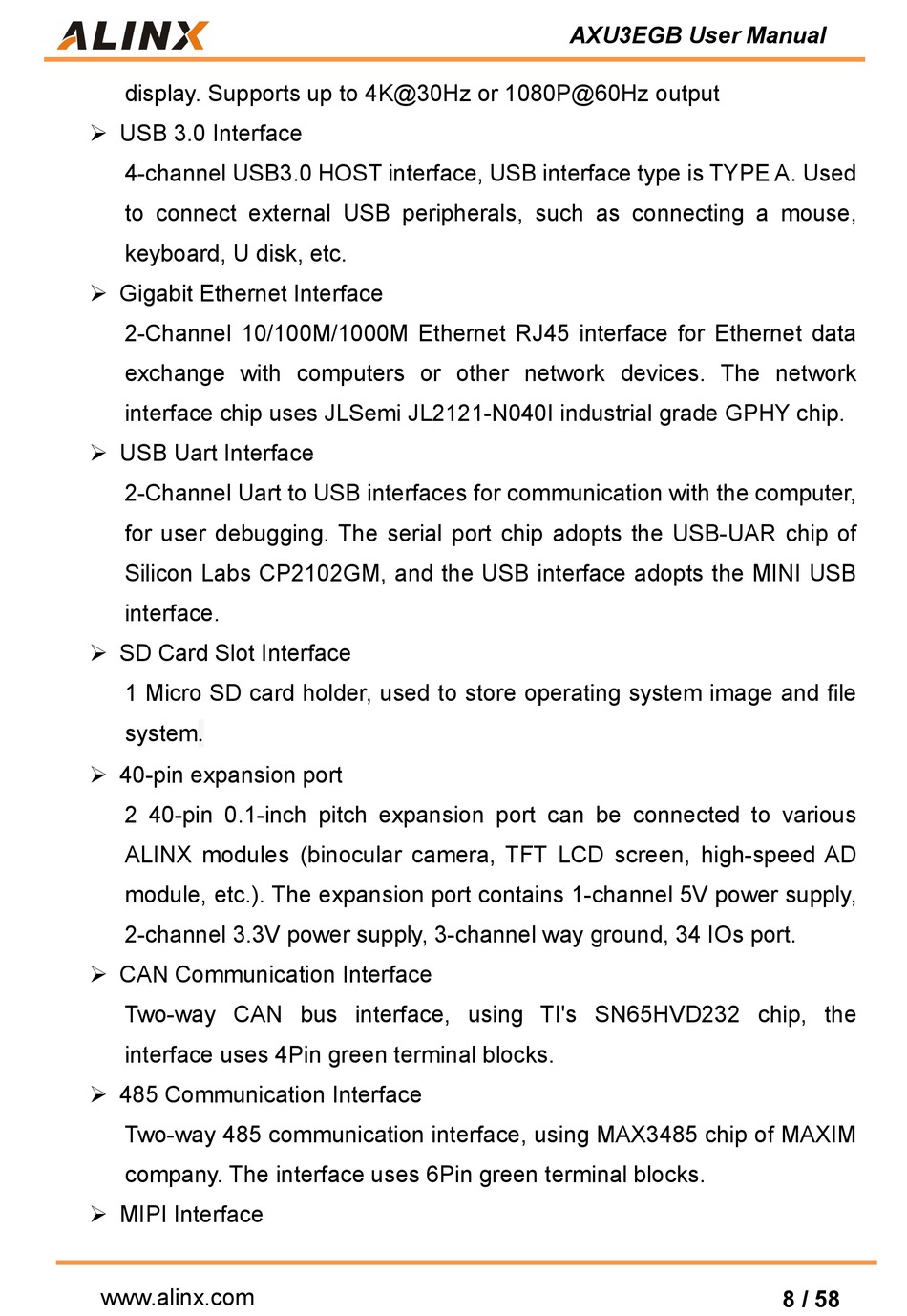

Alinx ZYNQUltraScale+ AXU3EGB User Manual page 8

display. Supports up to 4K@30Hz or 1080P@60Hz output
 USB 3.0 Interface
4-channel USB3.0 HOST interface, USB interface type is TYPE A. Used
to connect external USB peripherals, such as connecting a mouse,
keyboard, U disk, etc.
 Gigabit Ethernet Interface
2-Channel 10/100M/1000M Ethernet RJ45 interface for Ethernet data
exchange with computers or other network devices. The network
interface chip uses JLSemi JL2121-N040I industrial grade GPHY chip.
 USB Uart Interface
2-Channel Uart to USB interfaces for communication with the computer,
for user debugging. The serial port chip adopts the USB-UAR chip of
Silicon Labs CP2102GM, and the USB interface adopts the MINI USB
interface.
 SD Card Slot Interface
1 Micro SD card holder, used to store operating system image and file
system.
 40-pin expansion port
2 40-pin 0.1-inch pitch expansion port can be connected to various
ALINX modules (binocular camera, TFT LCD screen, high-speed AD
module, etc.). The expansion port contains 1-channel 5V power supply,
2-channel 3.3V power supply, 3-channel way ground, 34 IOs port.
 CAN Communication Interface
Two-way CAN bus interface, using TI's SN65HVD232 chip, the
interface uses 4Pin green terminal blocks.
 485 Communication Interface
Two-way 485 communication interface, using MAX3485 chip of MAXIM
company. The interface uses 6Pin green terminal blocks.
 MIPI Interface
