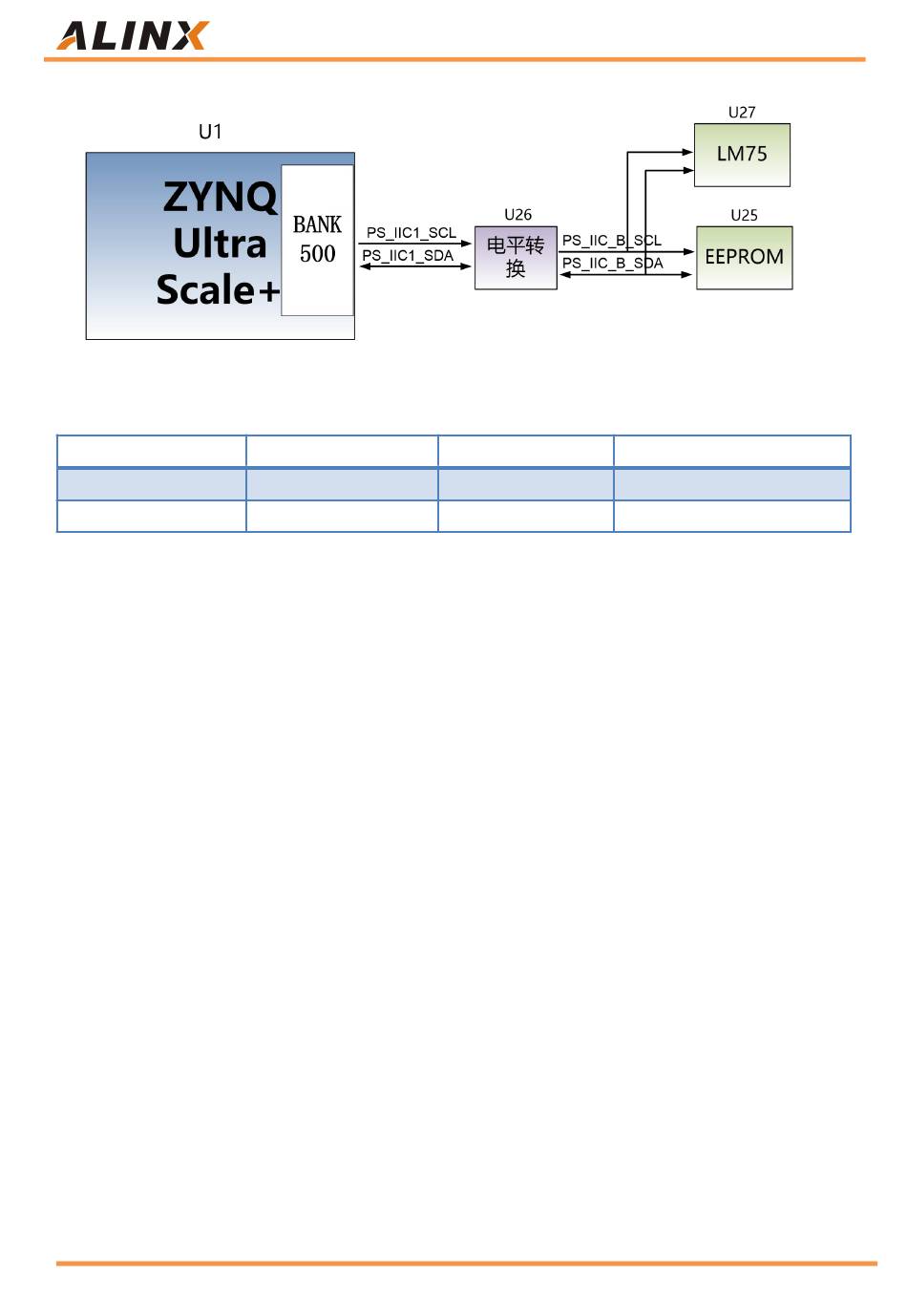

Figure 3-14-1: EEPROM and Sensor connection diagram
EEPROM pin assignment:
Signal Name
PS_IIC1_SCL
PS_IIC1_SDA

Part 3.15: User LEDs

There are 3 LEDs on the AXU3EGB Carrier board. including 1 power
indicator light, 1 User LED Controlled by PS side, and 1 User LED Controlled
by PL side. The user can control the user LED on and off through the program.
When the IO voltage of the connected user LED light is low, the user LED light
is off, and when the connected IO voltage is high, the user LED will be lit. The
schematic diagram of the user's LED light hardware connection is shown in
Figure 3-15-1:
www.alinx.com
ZYNQ Pin Name
PS_MIO24
PS_MIO25
AXU3EGB User Manual
ZYNQ Pin Number
AB19
AB21
Description
IIC Clock Signal
IIC Data Signal
