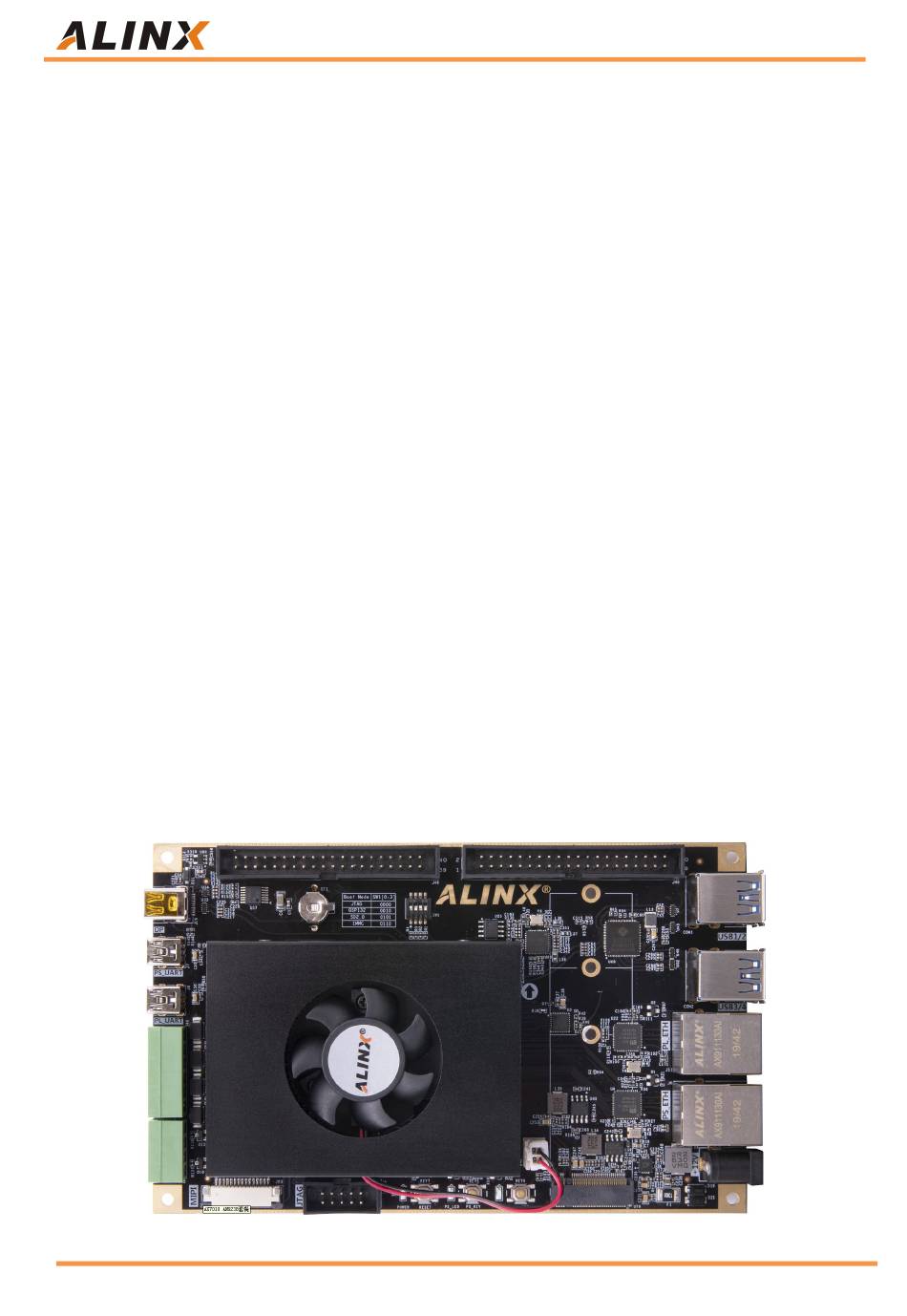

This MPSoCs FPGA development platform adopts the core board + carrier
board mode, which is convenient for users to use the core board for secondary
development. The core board uses XILINX Zynq UltraScale+ EGchip ZU3EG
solution, uses Processing System(PS)+Programmable Logic(PL) technology to
integrate dual-core ARM ARM Cortex-A53 and FPGA programmable logic on a
single chip. In addition, the PS side of the core board has 4 pieces of 1GB
high-speed DDR4 SDRAM chips, 1 piece of 8GB eMMC memory chip and 1
piece of 256Mb QSPI FLASH chip; the PL side of the core board has 1 piece of
1GB DDR4 SDRAM chip
In the design of carrier board, we have extended a wealth of interfaces for
users, such as 1 SATA M.2 interface, 1 DP interface, 4 USB 3.0 Interface, 2
Gigabit Ethernet interfaces, 1 SD card slot,2-Channel 40-pin expansion header,
2-Channel CAN bus interfaces, 2-Channel RS485 bus interfaces, 1 MIPI
Camera Interface. It meets users' requirements for high-speed data exchange,
data storage, Video transmission processing, deep learning, artificial
intelligence and industrial control. It is a "professional" ZYNQ development
platform. For high-speed data transmission and exchange, pre-verification and
post-application of data processing is possible. This product is very suitable for
students, engineers and other groups engaged in MPSoCs development.
