Configure chip pin assignments:
Signal Name
MIO0_QSPI0_SCLK
MIO1_QSPI0_IO1
MIO2_QSPI0_IO2
MIO3_QSPI0_IO3
MIO4_QSPI0_IO0
MIO5_QSPI0_SS_B

Part 2.5: eMMC Flash

The ACU3EG core board is equipped with a large-capacity 8GB eMMC
FLASH chip, the model is MTFC8GAKAJCN-4M, it supports the HS-MMC
interface of the JEDEC e-MMC V5.0 standard, and the level supports 1.8V or
3.3V. The data width of eMMC FLASH and ZYNQ connection is 8bit. Due to the
large-capacity and non-volatile characteristics of eMMC FLASH, it can be used
as a large-capacity storage device in the ZYNQ system, such as storing ARM
applications, system files and other user data files The specific models and
related parameters of eMMC FLASH are shown in Table 2-5-1.
Position
U19
www.alinx.com

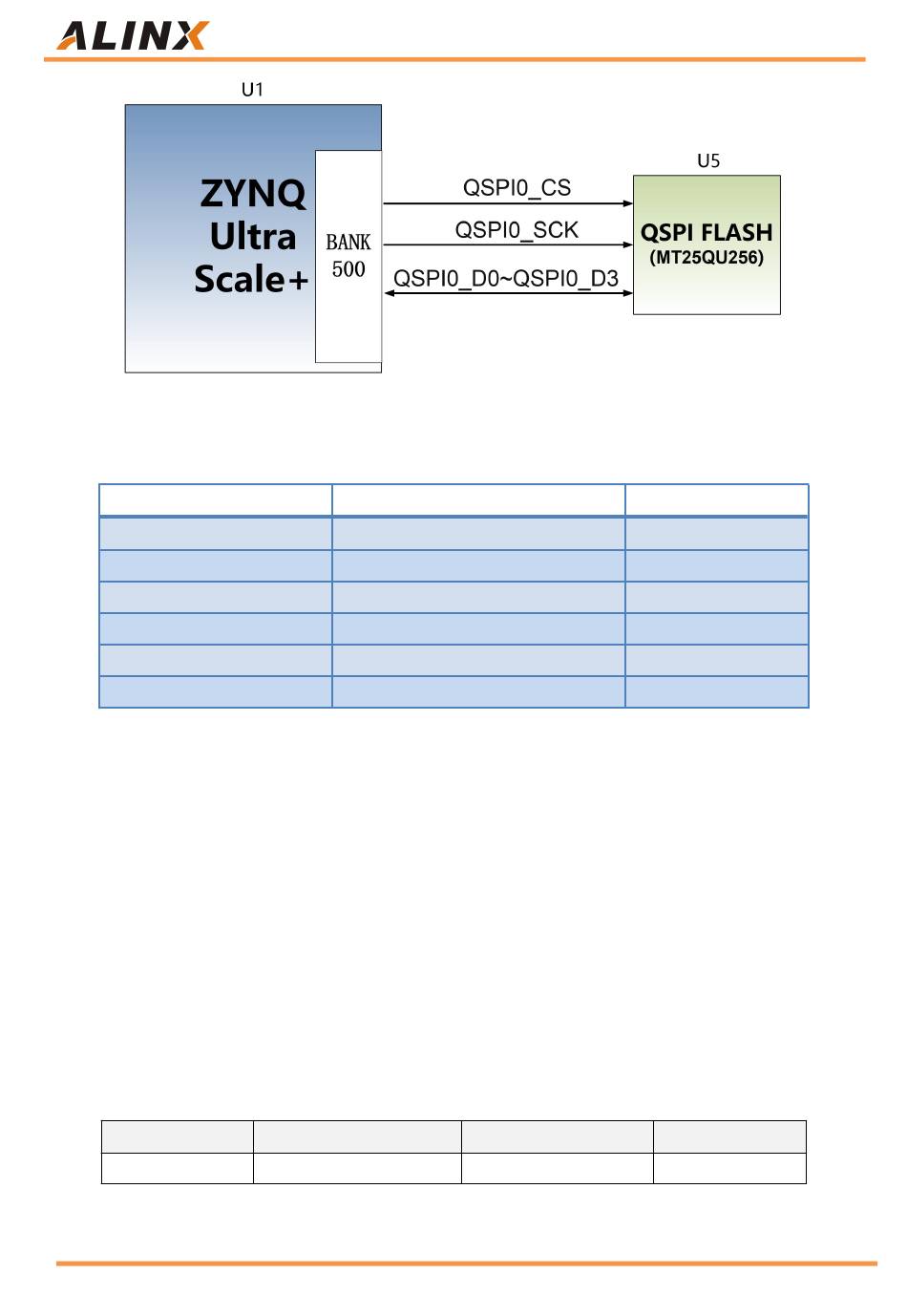

Figure 2-4-1: QSPI Flash in the schematic
Model
MTFC8GAKAJCN-4M
Table 2-5-1: eMMC FLASH Specification
AXU3EGB User Manual
Pin Name
PS_MIO0_500
PS_MIO1_500
PS_MIO2_500
PS_MIO3_500
PS_MIO4_500
PS_MIO5_500
Capacity
8G Byte
Pin Number
AG15
AG16
AF15
AH15
AH16
AD16
Factory
Micron
