AN4938
5.3.3

Internal pull-up and pull-down on JTAG pins

The devices embed internal pull-ups and pull-downs to guarantee a correct JTAG behavior.
The following pins are consequently not left floating during reset and they are configured as
follows until the user software takes control of them:
•
NJTRST: internal pull-up.
•
JTDI: internal pull-up.
•
JTMS/SWDIO: internal pull-up.
•
TCK/SWCLK: internal pull-down.
If these I/Os are externally connected to a different voltage, leakage current will flow during
and after reset, until they are reconfigured by software. Special care must be taken with the
TCK/SWCLK pin, which is directly connected to the clock of some of these flip-flops, since it
should not toggle before JTAG I/O is released by the user software."
5.3.4

SWJ debug port connection with standard JTAG connector

Figure 17
connector.
shows the connection between STM32H743/753xx devices and a standard JTAG

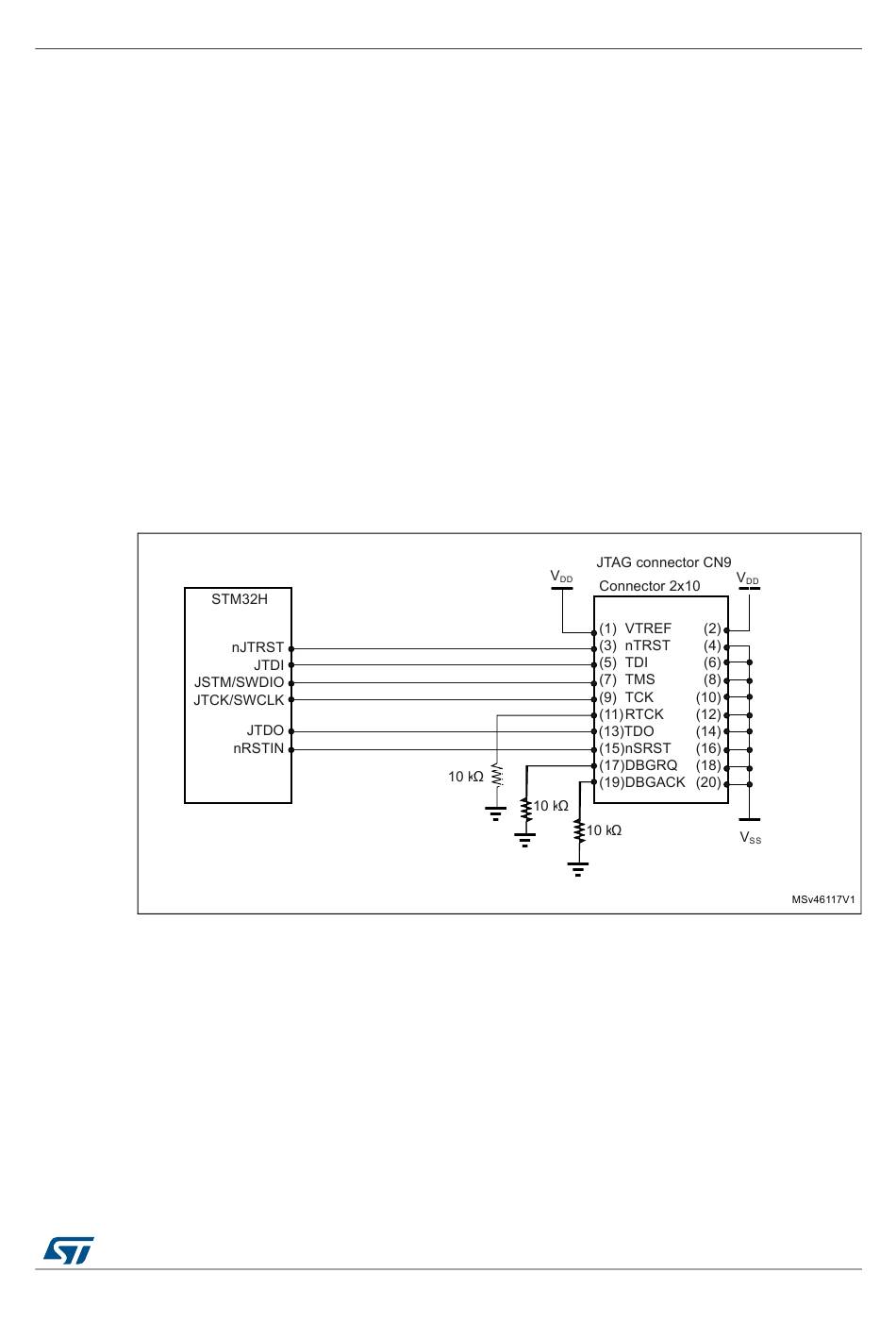

Figure 17. JTAG connector implementation

DocID029918 Rev 1
Debug management
29/48
47
