Internal Pull-Up And Pull-Down On Jtag Pins; Swj Debug Port Connection With Standard Jtag Connector; Figure 17. Jtag Connector Implementation - ST STM32F74 Series Getting Started

AN4661
5.3.3

Internal pull-up and pull-down on JTAG pins

It is necessary to ensure that the JTAG input pins are not floating since they are directly
connected to flip-flops to control the debug mode features. A special care must be taken
with the SWCLK/TCK pin which is directly connected to the clock of some of these flip-flops.
To avoid any uncontrolled IO levels, the device embeds internal pull-ups and pull-downs on
the JTAG input pins:
•
NJTRST: Internal pull-up.
•
JTDI: Internal pull-up.
•
JTMS/SWDIO: Internal pull-up.
• TCK/SWCLK: Internal pull-down.
Once a JTAG IO is released by the user software, the GPIO controller takes control again.
The reset states of the GPIO control registers put the I/Os in the equivalent state:
•
NJTRST: AF input pull-up.
•
JTDI: AF input pull-up.
•
JTMS/SWDIO: AF input pull-up.
•
JTCK/SWCLK: AF input pull-down.
• JTDO: AF output floating.
The software can then use these I/Os as standard GPIOs.
Note: The JTAG IEEE standard recommends to add pull-ups on TDI, TMS and nTRST but there is
no special recommendation for TCK. However, for JTCK, the device needs an integrated
pull-down.
Having embedded pull-ups and pull-downs removes the need to add external resistors.
5.3.4

SWJ debug port connection with standard JTAG connector

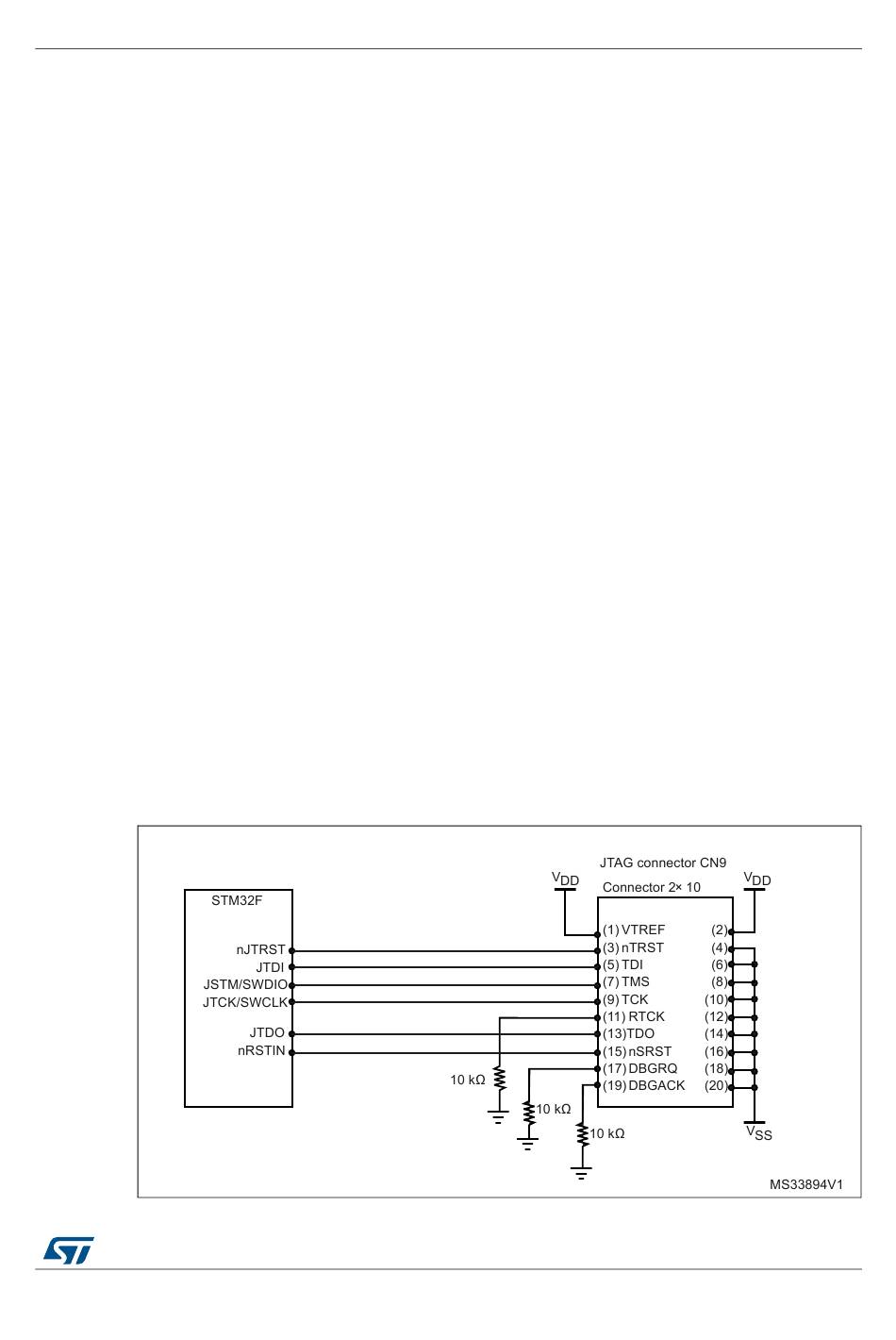

Figure 17
connector.
shows the connection between the STM32F7xxxx and a standard JTAG

Figure 17. JTAG connector implementation
