Sensor Display LED Description
Name
Pwr.
Err.
Q1
Q2
Table 1: Table Display LEDs

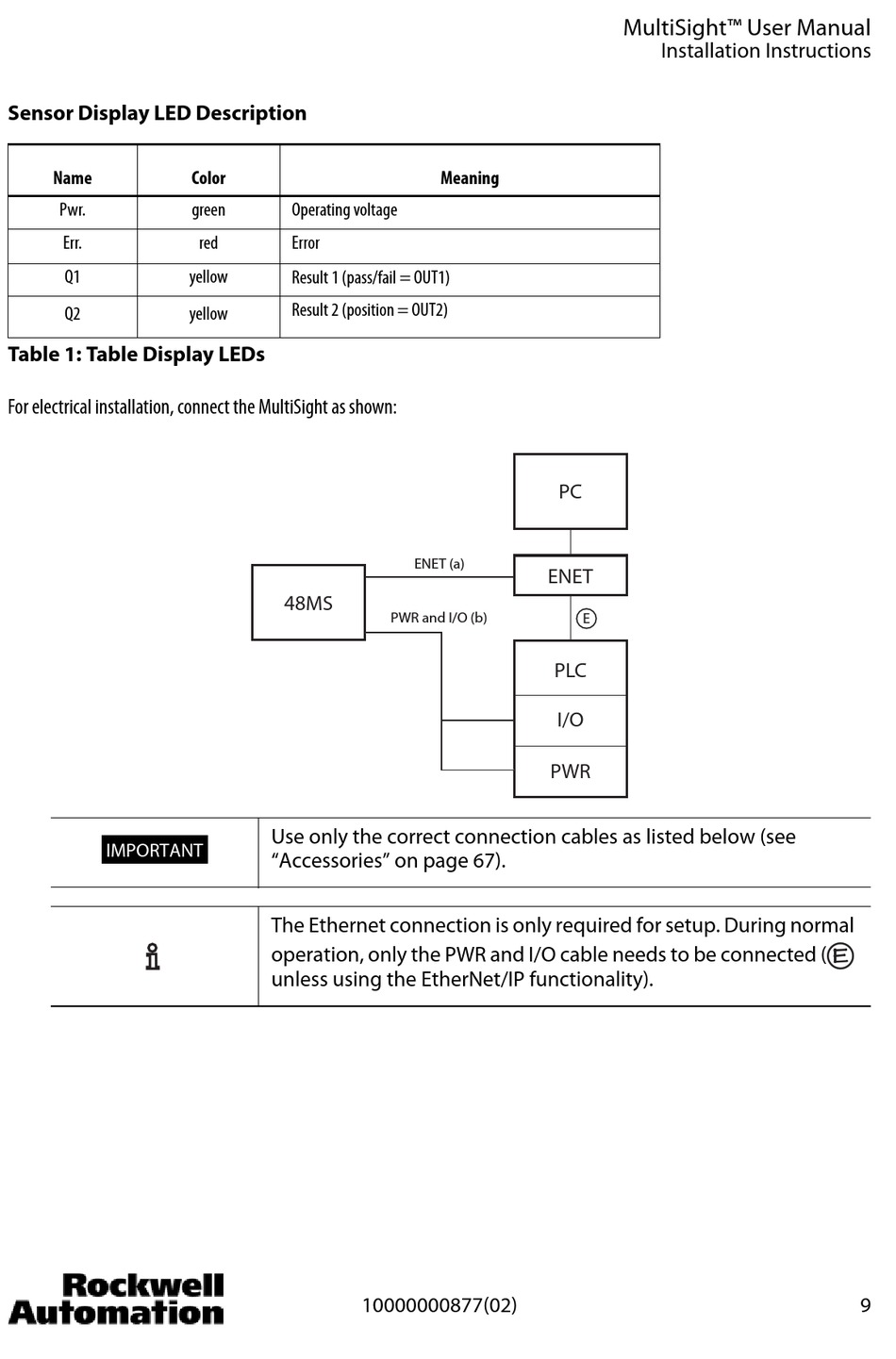

For electrical installation, connect the MultiSight as shown:
IMPORTANT
Color
green Operating voltage
red Error
yellow Result 1 (pass/fail = OUT1)
Result 2 (position = OUT2)
yellow
48MS
Use only the correct connection cables as listed below (see
"Accessories" on page 67).
The Ethernet connection is only required for setup. During normal
operation, only the PWR and I/O cable needs to be connected (
unless using the EtherNet/IP functionality).
Meaning
ENET (a)
PWR and I/O (b)
10000000877(02)
MultiSight™ User Manual
Installation Instructions
PC
ENET
E
PLC
I/O
PWR
E
