MultiSight™ User Manual
Setup—Quick Guide
14. Based on the results of several good and bad parts, you may need to adjust the threshold settings. Click the Stop button in the
Commands section to return to configuration mode and make adjustments.

Example Application

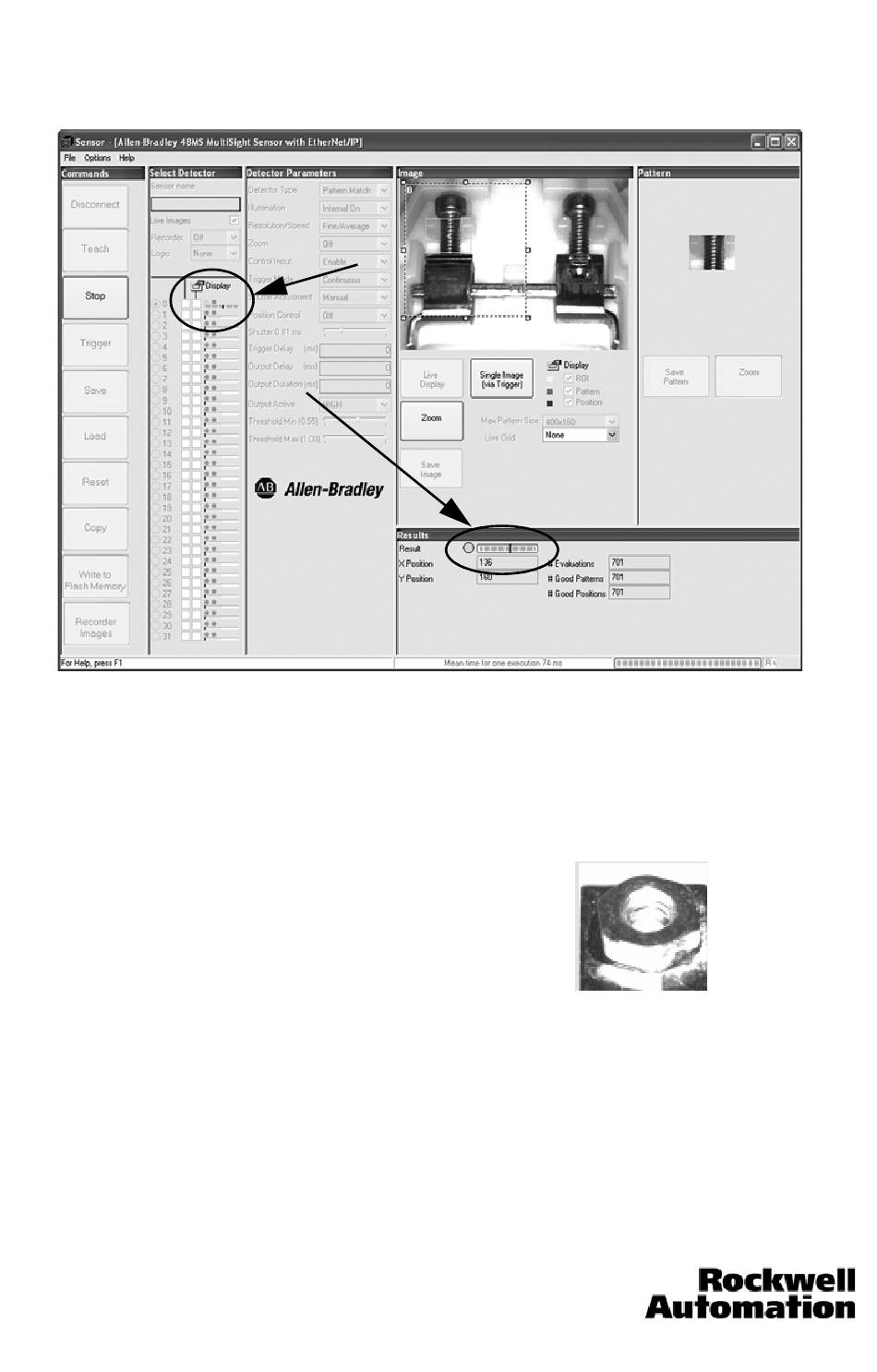

Example: Detecting whether hex nuts are welded on mounting brackets by using the detector type "Pattern Matching."
During machine assembly, inspect mounting brackets to ensure
that hex nuts are welded in specified places.
Condition:
Mount the MultiSight sensor in position (see "Installation" on
page 6) and attach all cables and wires per "Electrical
Installation" on page 8 and "Connector Pin Assignments" on page 66. The software connection to the MultiSight is described in the
"Start-up" section on page 18.
