MultiSight™ User Manual
Installation Instructions

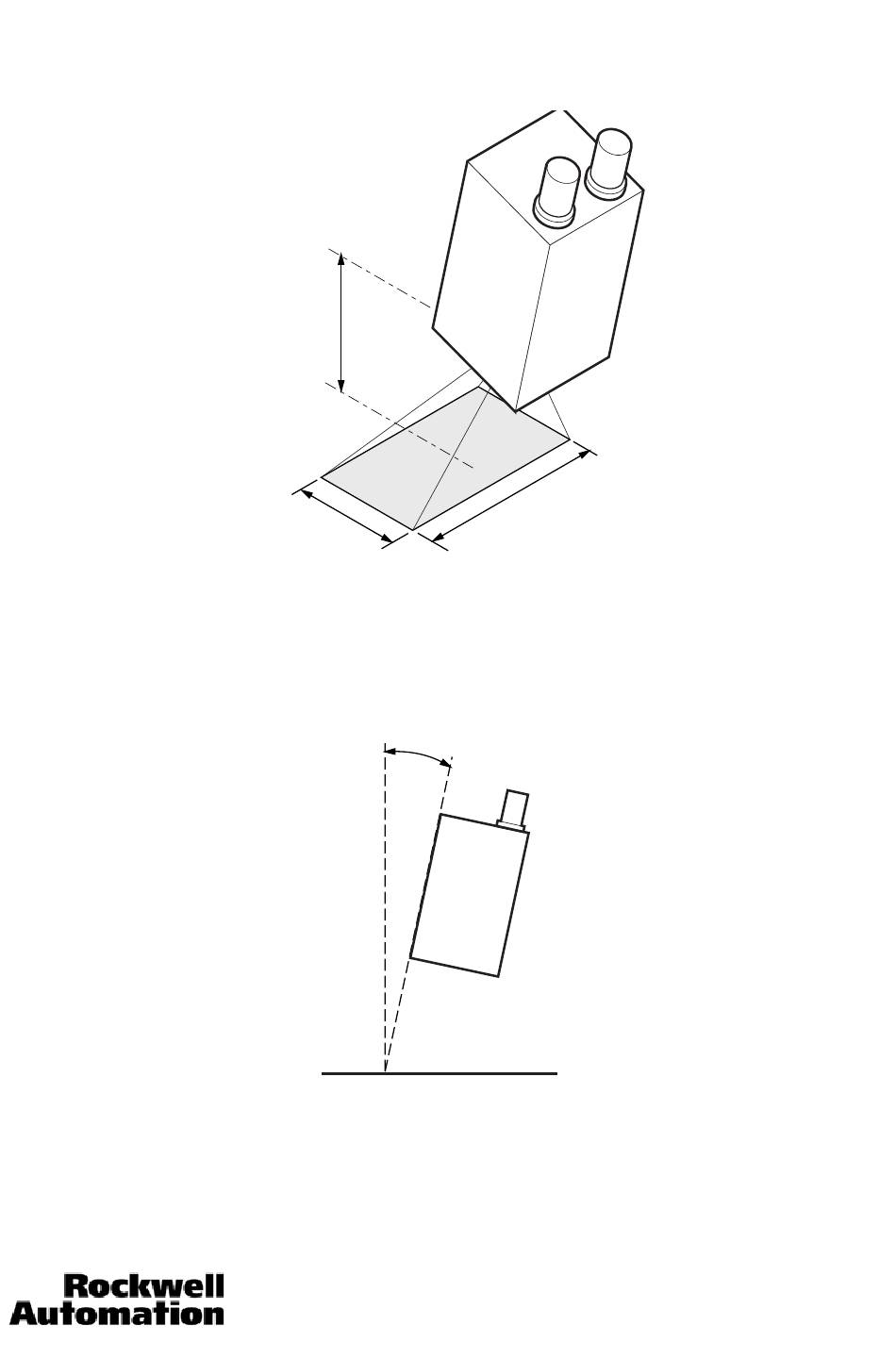

Operating
Distance
Width of
Height of
Field of View
Field of View
The height and width of the field of view is determined by the operating distance (see "Minimum Operating Distance and Field of
View by Cat. No." on page 63).
For most applications, it is recommended to align the MultiSight at an angle of approximately 10...15° with reference to the optical
axis in order to avoid interfering reflections from the inspection target.
Approx. 10...15°
Target Surface
10000000877(02) 7
