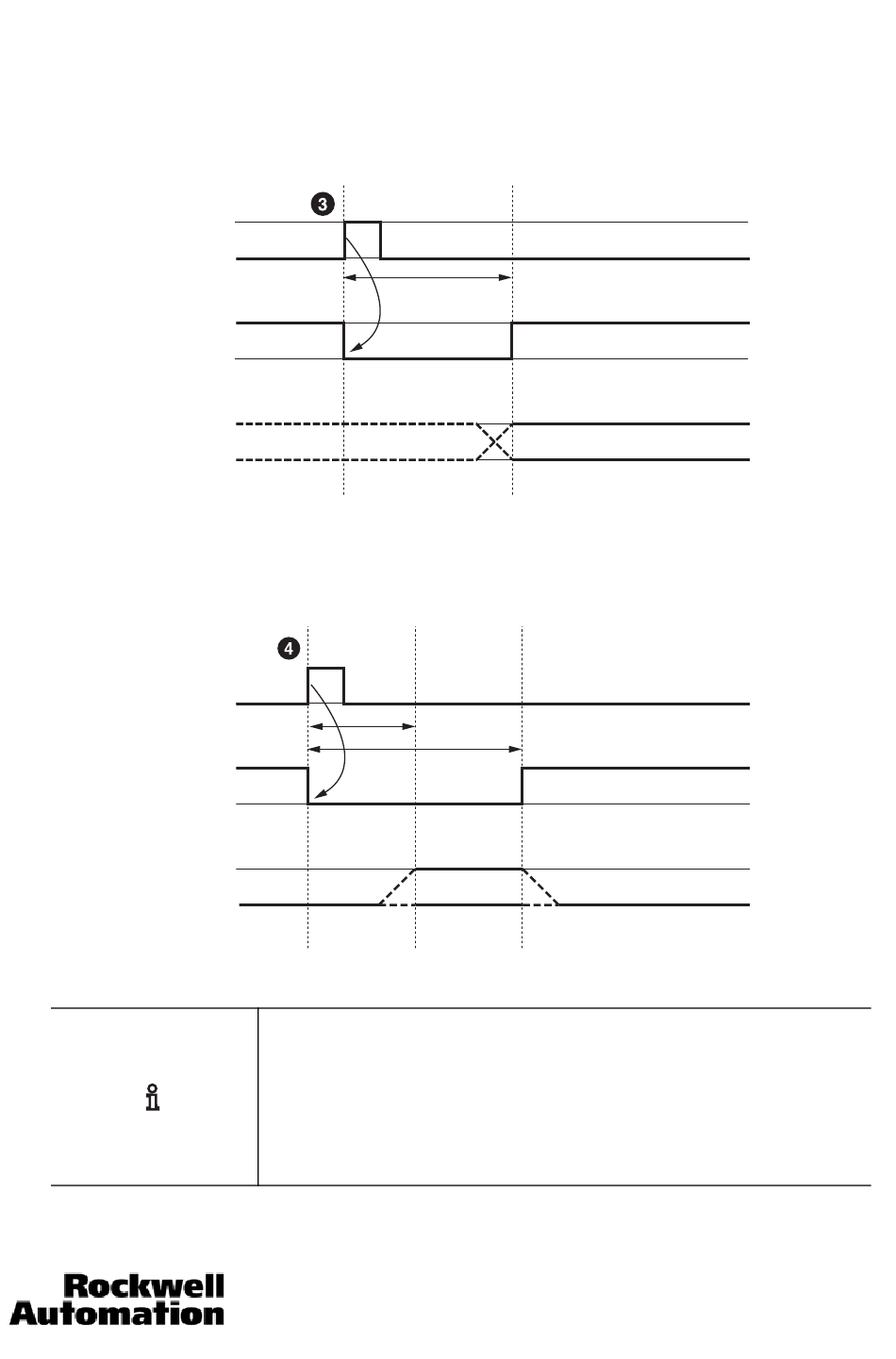

Case 3) Output Delay = Time (in ms) between the Trigger and the availability of results from Output 1+2 (Pass/Fail). Note that the
Output Delay must be longer than the evaluation time.
(Trigger)
OUT4
(Ready/Busy)
OUT 1+2
(Pass/Fail)
Case 4) Output Duration = Duration (in ms) of the result output on Outputs 1+2. The outputs will turn OFF once the Output Duration
is complete (unless the Output Active parameter is set to LOW/Normally Closed, in which case the outputs will turn ON once the
Output Duration is complete)
(Trigger)
OUT4
(Ready/Busy)
OUT 1+2
(Pass/Fail)
IN1
IN1
When the configurable delays are used, the minimum total cycle
time will be at least as long as the sum of the delay times. This will
reduce the number of inspections that can be made in a given
period of time.
A new part cannot initiate a trigger signal until the previous
evaluation, timing delays, and output duration are complete.
10000000877(02)
Output Delay
(Includes Evaluation Time)
Ready On
Evaluation
Time
Evaluation Time
+ Output Duration
Ready ON
Output
Output NOT Valid
Duration
(Output OFF)
(Output Valid)
MultiSight™ User Manual
"
Ouput Valid
"
Start-up
