11. In the Detector Parameters section (third column), change the Trigger Mode setting to Continuous (from Triggered). While in
run mode, this will cause a new inspection to start as soon as the last one finishes. In the Select Detector section (second
column), click the Live Images checkbox so that images will be displayed in the software while the sensor is connected.

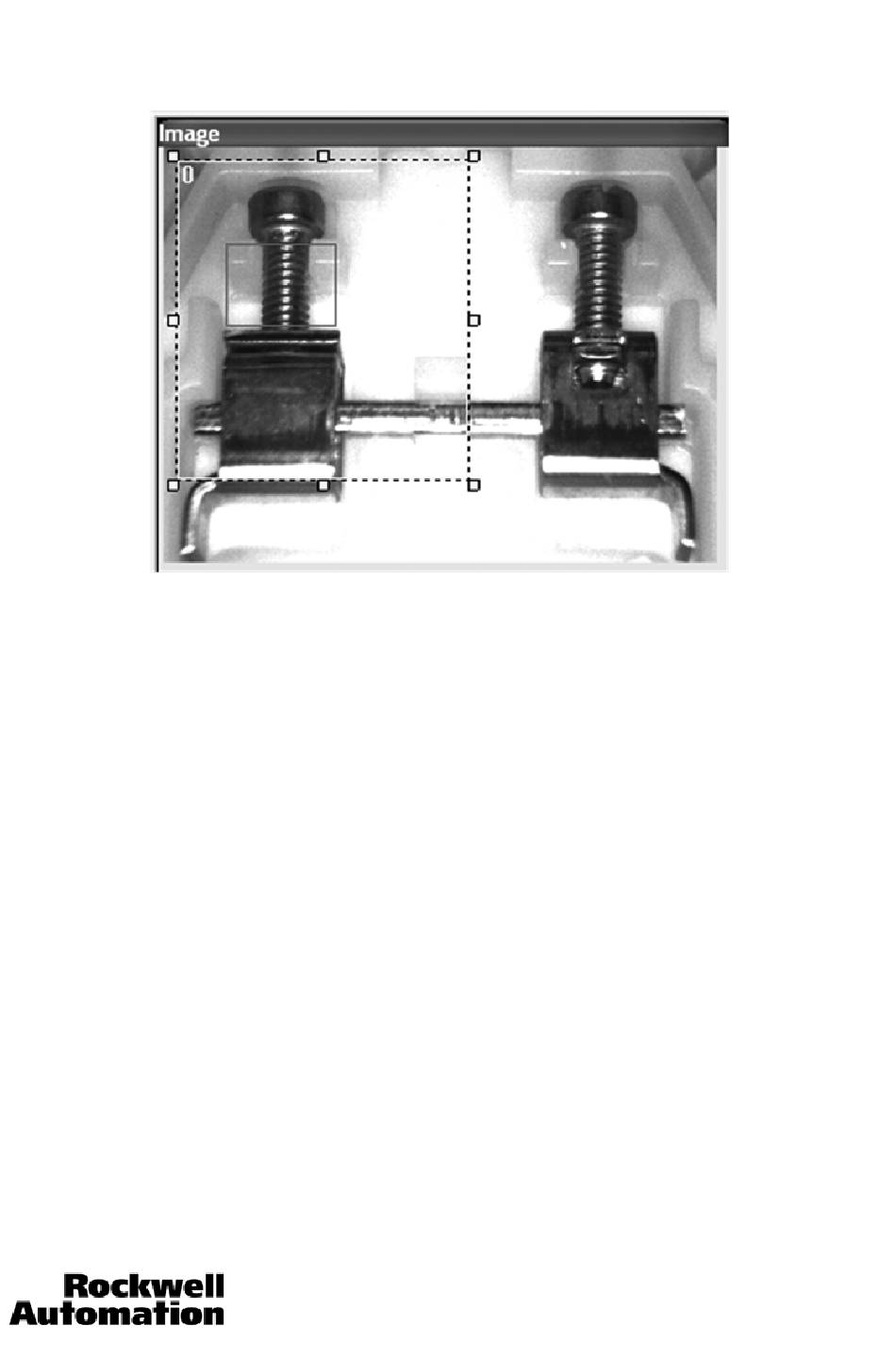

12. Click the Teach button in the Commands section. Click Teach From PC Image. Once the teach process is complete, the taught
pattern appears in the Pattern window on the right.
Function Test
13. Click the Run button in the Commands section. Confirm that the inspection is passing by referencing the indicators. Based on
the results of several good and bad parts, you may need to adjust the threshold settings.
