Parameter
Logic (continued)
Description
E
Select radio buttons 0-9 (
parameters for that detector. Detectors that are logically linked
should follow these guidelines for the Detector Parameter
configurations:
Detector Type
Illumination
Resolution/Speed
Zoom
Control Input
Trigger Mode
Shutter Adjustment
Position Control
Shutter
Trigger Delay
Output Delay
Output Duration
Output Active
Threshold Min
Threshold Max

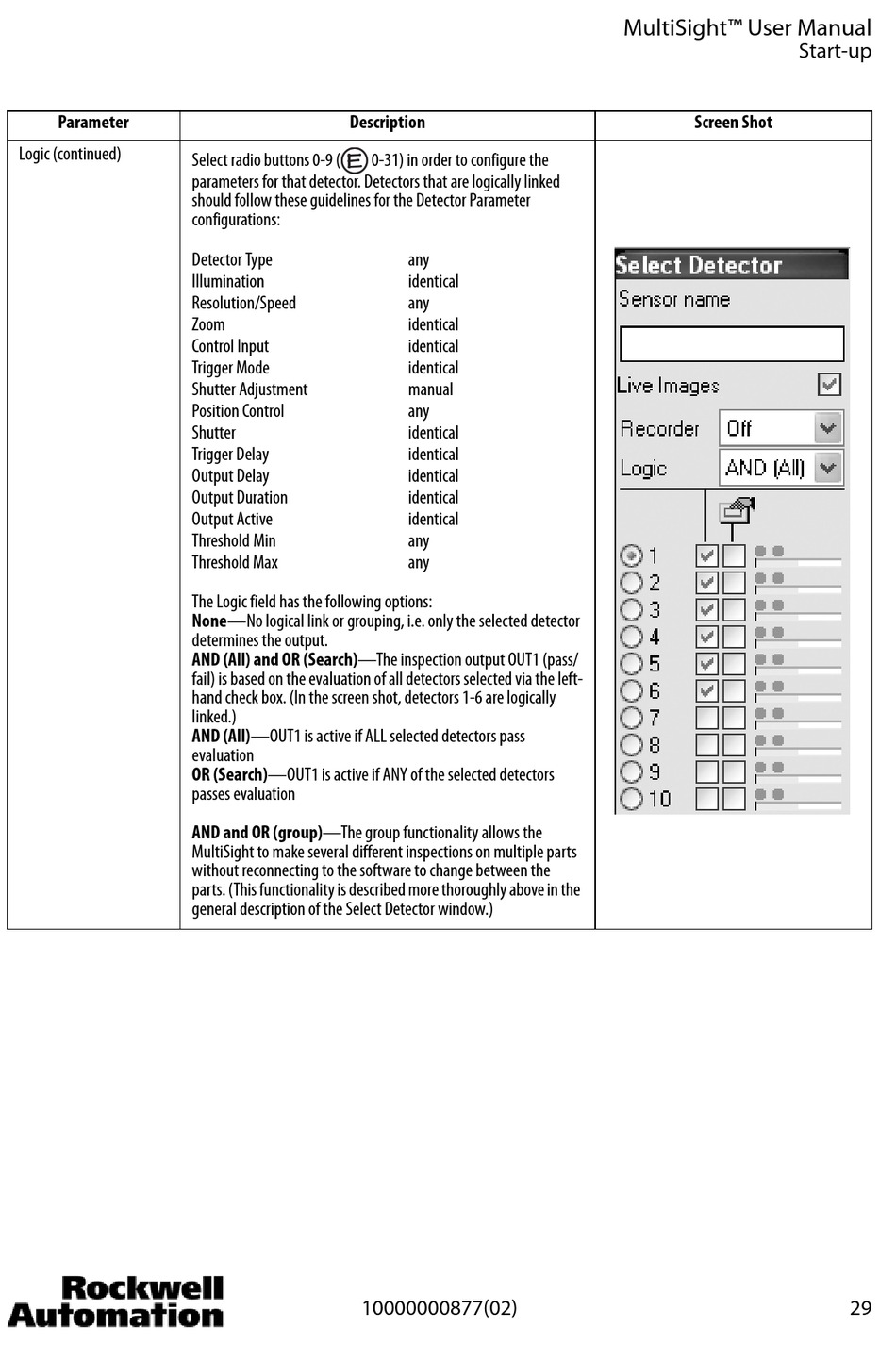

The Logic field has the following options:
None—No logical link or grouping, i.e. only the selected detector
determines the output.
AND (All) and OR (Search)—The inspection output OUT1 (pass/
fail) is based on the evaluation of all detectors selected via the left-
hand check box. (In the screen shot, detectors 1-6 are logically
linked.)
AND (All)—OUT1 is active if ALL selected detectors pass
evaluation
OR (Search)—OUT1 is active if ANY of the selected detectors
passes evaluation
AND and OR (group)—The group functionality allows the
MultiSight to make several different inspections on multiple parts
without reconnecting to the software to change between the
parts. (This functionality is described more thoroughly above in the
general description of the Select Detector window.)
10000000877(02)
0-31) in order to configure the
any
identical
any
identical
identical
identical
manual
any
identical
identical
identical
identical
identical
any
any
