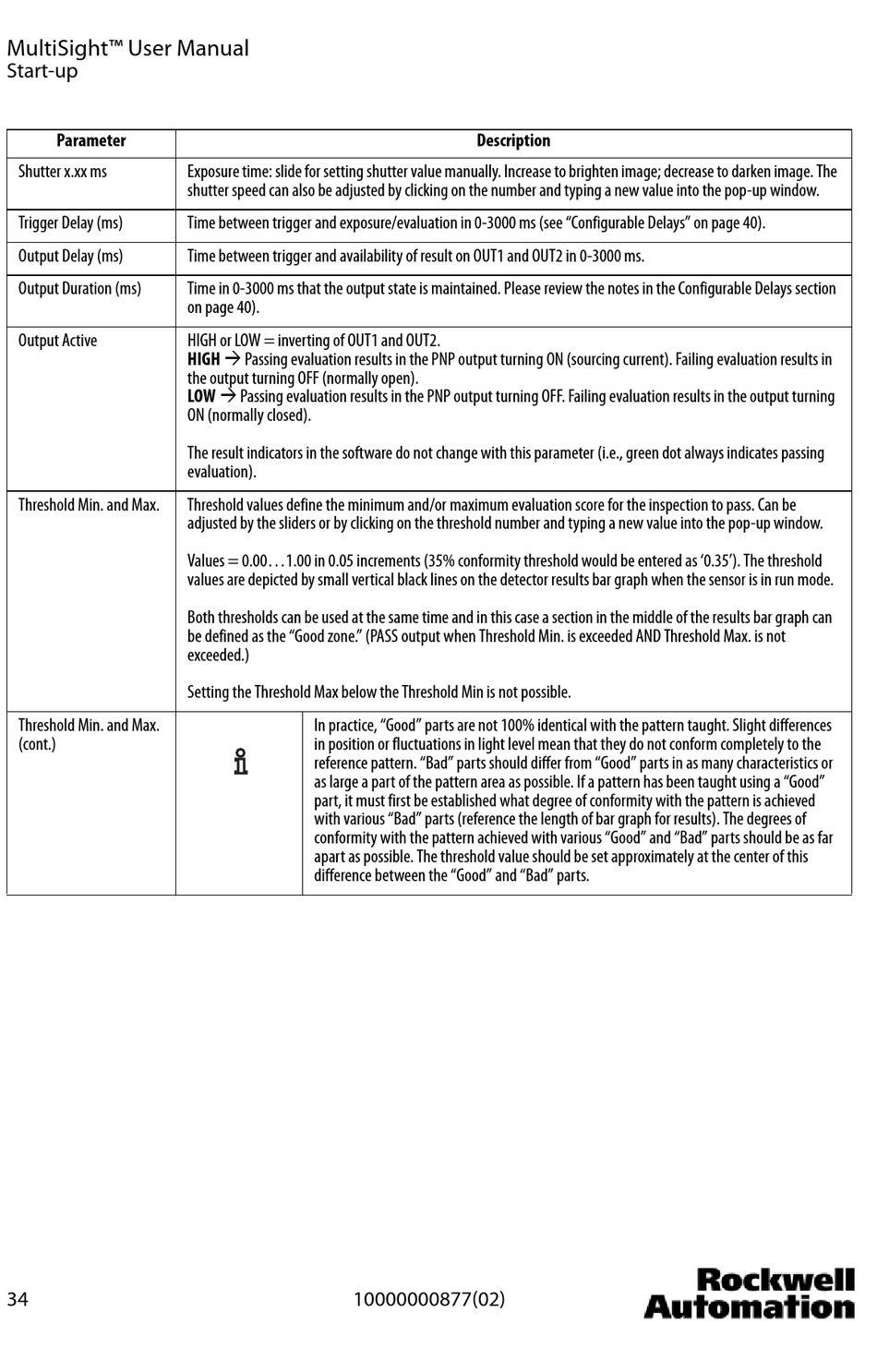

MultiSight™ User Manual
Start-up
Parameter
Shutter x.xx ms
Trigger Delay (ms)
Output Delay (ms)
Output Duration (ms)
Output Active
Threshold Min. and Max.
Threshold Min. and Max.
(cont.)
34
Exposure time: slide for setting shutter value manually. Increase to brighten image; decrease to darken image. The
shutter speed can also be adjusted by clicking on the number and typing a new value into the pop-up window.
Time between trigger and exposure/evaluation in 0-3000 ms (see "Configurable Delays" on page 40).
Time between trigger and availability of result on OUT1 and OUT2 in 0-3000 ms.
Time in 0-3000 ms that the output state is maintained. Please review the notes in the Configurable Delays section
on page 40).
HIGH or LOW = inverting of OUT1 and OUT2.
HIGH  Passing evaluation results in the PNP output turning ON (sourcing current). Failing evaluation results in
the output turning OFF (normally open).
LOW  Passing evaluation results in the PNP output turning OFF. Failing evaluation results in the output turning
ON (normally closed).
The result indicators in the software do not change with this parameter (i.e., green dot always indicates passing
evaluation).
Threshold values define the minimum and/or maximum evaluation score for the inspection to pass. Can be
adjusted by the sliders or by clicking on the threshold number and typing a new value into the pop-up window.
Values = 0.00...1.00 in 0.05 increments (35% conformity threshold would be entered as '0.35'). The threshold
values are depicted by small vertical black lines on the detector results bar graph when the sensor is in run mode.
Both thresholds can be used at the same time and in this case a section in the middle of the results bar graph can
be defined as the "Good zone." (PASS output when Threshold Min. is exceeded AND Threshold Max. is not
exceeded.)
Setting the Threshold Max below the Threshold Min is not possible.
In practice, "Good" parts are not 100% identical with the pattern taught. Slight differences
in position or fluctuations in light level mean that they do not conform completely to the
reference pattern. "Bad" parts should differ from "Good" parts in as many characteristics or
as large a part of the pattern area as possible. If a pattern has been taught using a "Good"
part, it must first be established what degree of conformity with the pattern is achieved
with various "Bad" parts (reference the length of bar graph for results). The degrees of
conformity with the pattern achieved with various "Good" and "Bad" parts should be as far
apart as possible. The threshold value should be set approximately at the center of this
difference between the "Good" and "Bad" parts.
Description
10000000877(02)
