Configurable Delays

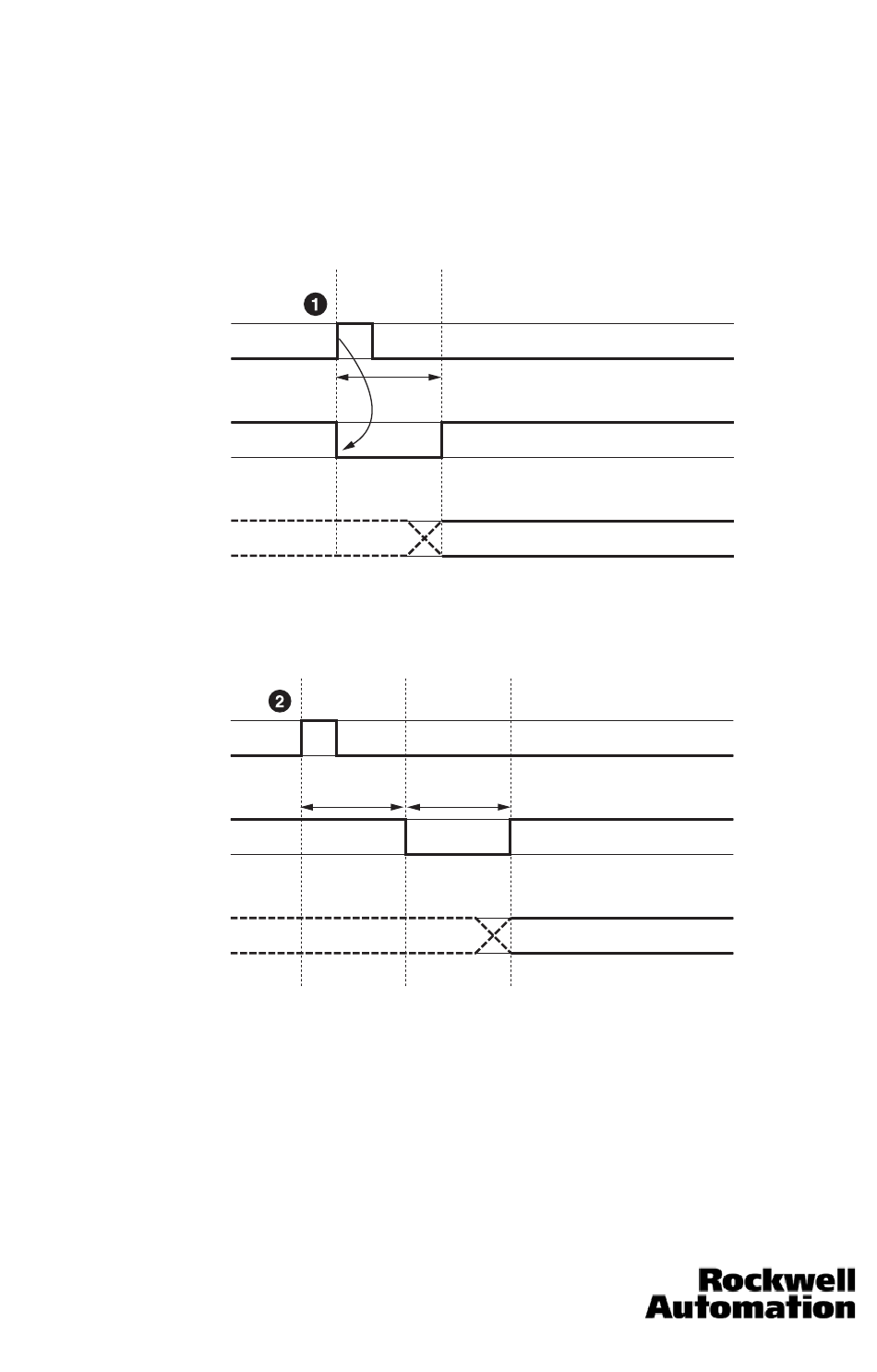

There are three timing mechanisms that can be used: Trigger Delay, Output Delay, and Output Duration. Each has a range of
0...3000 ms. The following timing diagrams show the behavior of the outputs for each timing mechanism condition.
Case 1: No delay timers used (default state)
(Trigger)
OUT4
(Ready/Busy)
OUT 1+2
(Pass/Fail)
Case 2) Trigger Delay = Time (in ms) between the Trigger Input turning on (rising edge) and the image exposure
(Trigger)
OUT4
(Ready/Busy)
OUT 1+2
(Pass/Fail)
40
IN1
IN1
Trigger
Delay
10000000877(02)
Evaluation Time of Sensor
"
Ready On Ouput Valid
Evaluation
Time
Ready On
"
Ouput Valid
