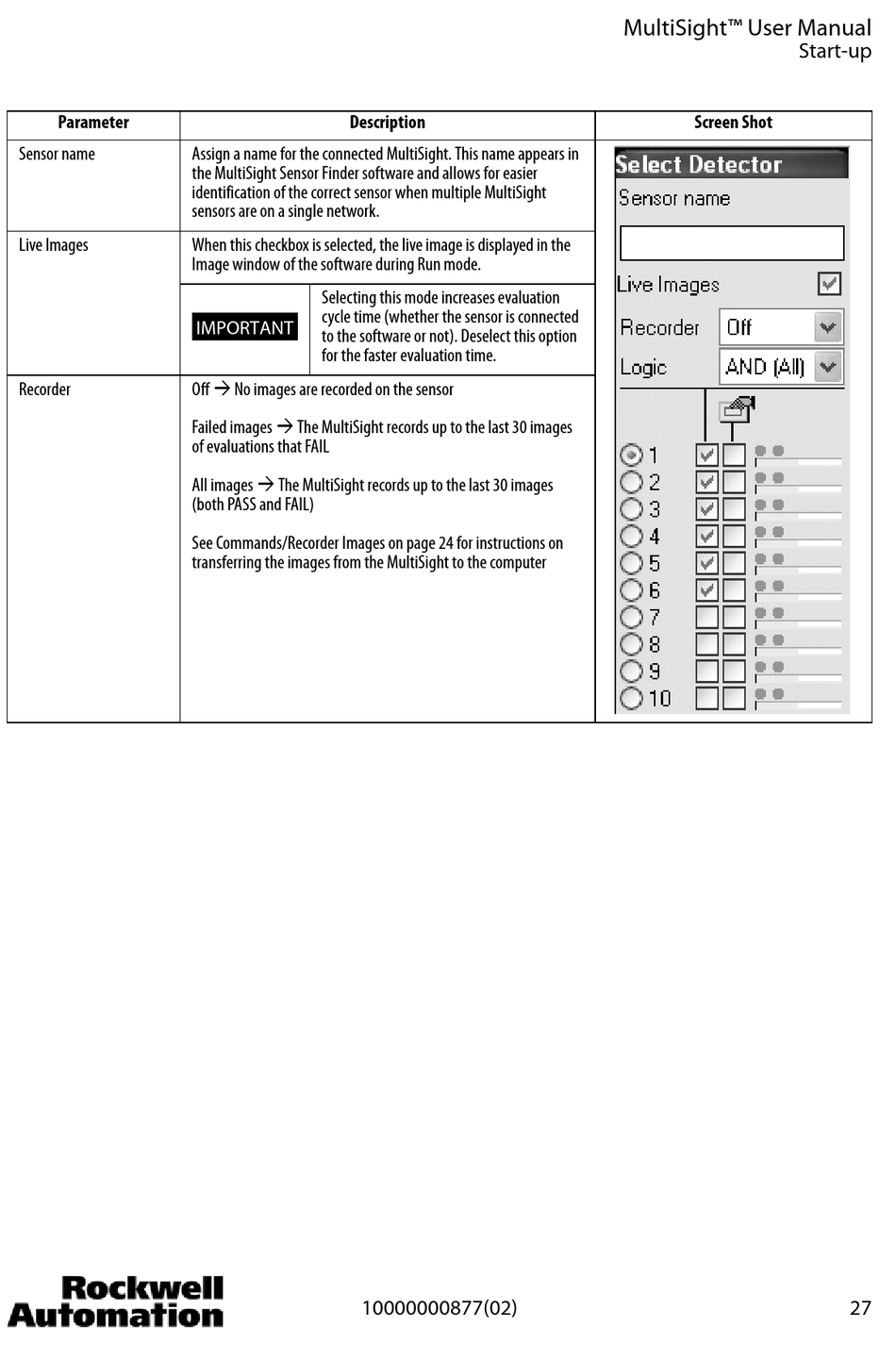

Rockwell Automation MultiSight 48MS-SE1PF1-M2 User Manual page 27

Parameter
Sensor name
Live Images
Recorder
Description
Assign a name for the connected MultiSight. This name appears in
the MultiSight Sensor Finder software and allows for easier
identification of the correct sensor when multiple MultiSight
sensors are on a single network.
When this checkbox is selected, the live image is displayed in the
Image window of the software during Run mode.
Selecting this mode increases evaluation
cycle time (whether the sensor is connected
IMPORTANT
to the software or not). Deselect this option
for the faster evaluation time.
Off  No images are recorded on the sensor
Failed images  The MultiSight records up to the last 30 images
of evaluations that FAIL
All images  The MultiSight records up to the last 30 images
(both PASS and FAIL)
See Commands/Recorder Images on page 24 for instructions on
transferring the images from the MultiSight to the computer
10000000877(02)
MultiSight™ User Manual
Screen Shot
Start-up
