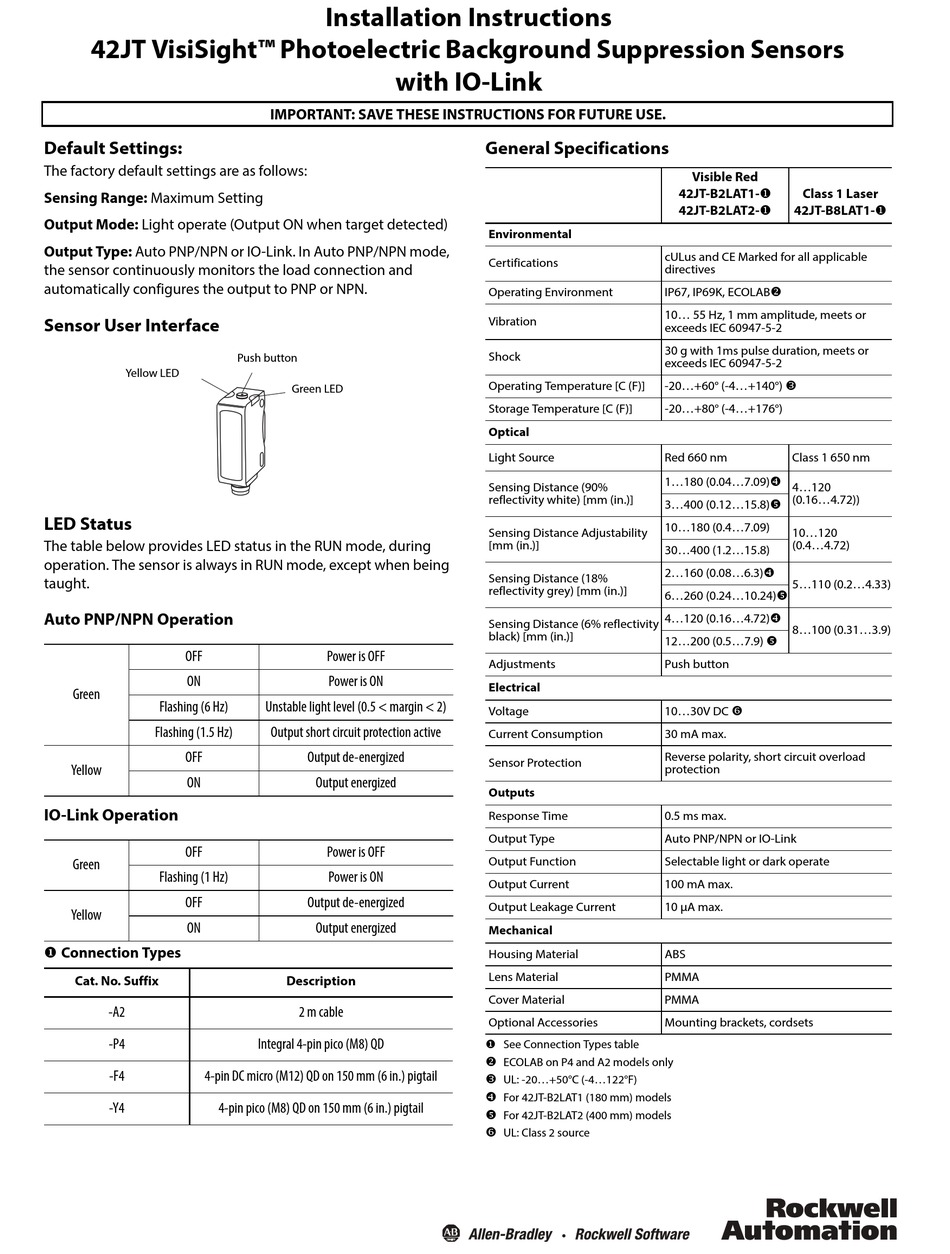

Rockwell Automation VisiSight 42JT Series Installation Instructions

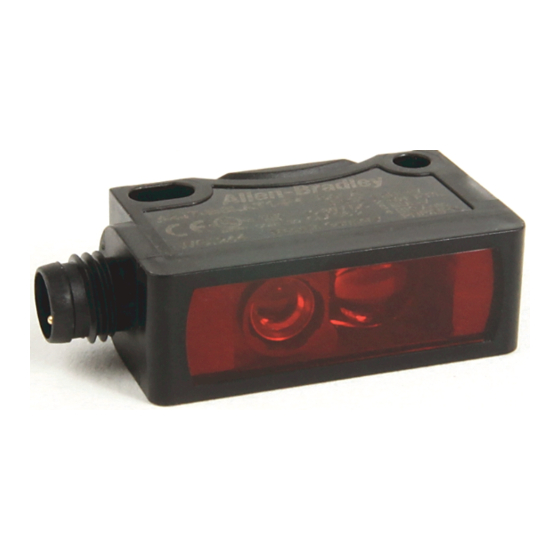

42JT VisiSight™ Photoelectric Background Suppression Sensors
Default Settings:
The factory default settings are as follows:
Sensing Range: Maximum Setting
Output Mode: Light operate (Output ON when target detected)
Output Type: Auto PNP/NPN or IO-Link. In Auto PNP/NPN mode,
the sensor continuously monitors the load connection and
automatically configures the output to PNP or NPN.
Sensor User Interface
Yellow LED
LED Status
The table below provides LED status in the RUN mode, during
operation. The sensor is always in RUN mode, except when being
taught.
Auto PNP/NPN Operation
OFF
ON
Green
Flashing (6 Hz)
Flashing (1.5 Hz)
OFF
Yellow
ON
IO-Link Operation
OFF
Green
Flashing (1 Hz)
OFF
Yellow
ON
 Connection Types
Cat. No. Suffix
-A2
-P4
-F4 4-pin DC micro (M12) QD on 150 mm (6 in.) pigtail
-Y4 4-pin pico (M8) QD on 150 mm (6 in.) pigtail
Installation Instructions
with IO-Link
IMPORTANT: SAVE THESE INSTRUCTIONS FOR FUTURE USE.
Push button
Green LED
Power is OFF
Power is ON
Unstable light level (0.5 < margin < 2)
Output short circuit protection active
Output de-energized
Output energized
Power is OFF
Power is ON
Output de-energized
Output energized
Description
2 m cable
Integral 4-pin pico (M8) QD
General Specifications
Environmental
Certifications
Operating Environment
Vibration
Shock
Operating Temperature [C (F)]
Storage Temperature [C (F)]
Optical
Light Source
Sensing Distance (90%
reflectivity white) [mm (in.)]
Sensing Distance Adjustability
[mm (in.)]
Sensing Distance (18%
reflectivity grey) [mm (in.)]
Sensing Distance (6% reflectivity
black) [mm (in.)]
Adjustments
Electrical
Voltage
Current Consumption
Sensor Protection
Outputs
Response Time
Output Type
Output Function
Output Current
Output Leakage Current
Mechanical
Housing Material
Lens Material
Cover Material
Optional Accessories
 See Connection Types table
 ECOLAB on P4 and A2 models only
UL: -20...+50°C (-4...122°F)

For 42JT-B2LAT1 (180 mm) models

 For 42JT-B2LAT2 (400 mm) models
 UL: Class 2 source
Visible Red
42JT-B2LAT1- Class 1 Laser
42JT-B2LAT2- 42JT-B8LAT1-
cULus and CE Marked for all applicable
directives
IP67, IP69K, ECOLAB
10... 55 Hz, 1 mm amplitude, meets or
exceeds IEC 60947-5-2
30 g with 1ms pulse duration, meets or
exceeds IEC 60947-5-2
-20...+60° (-4...+140°) 
-20...+80° (-4...+176°)
Red 660 nm Class 1 650 nm
1...180 (0.04...7.09) 4...120
(0.16...4.72))
3...400 (0.12...15.8)
10...180 (0.4...7.09)
10...120
(0.4...4.72)
30...400 (1.2...15.8)
2...160 (0.08...6.3)
5...110 (0.2...4.33)
6...260 (0.24...10.24)
4...120 (0.16...4.72)
8...100 (0.31...3.9)
12...200 (0.5...7.9) 
Push button
10...30V DC 
30 mA max.
Reverse polarity, short circuit overload
protection
0.5 ms max.
Auto PNP/NPN or IO-Link
Selectable light or dark operate
100 mA max.
10 µA max.
ABS
PMMA
PMMA
Mounting brackets, cordsets
