MultiSight™ User Manual
Installation Instructions

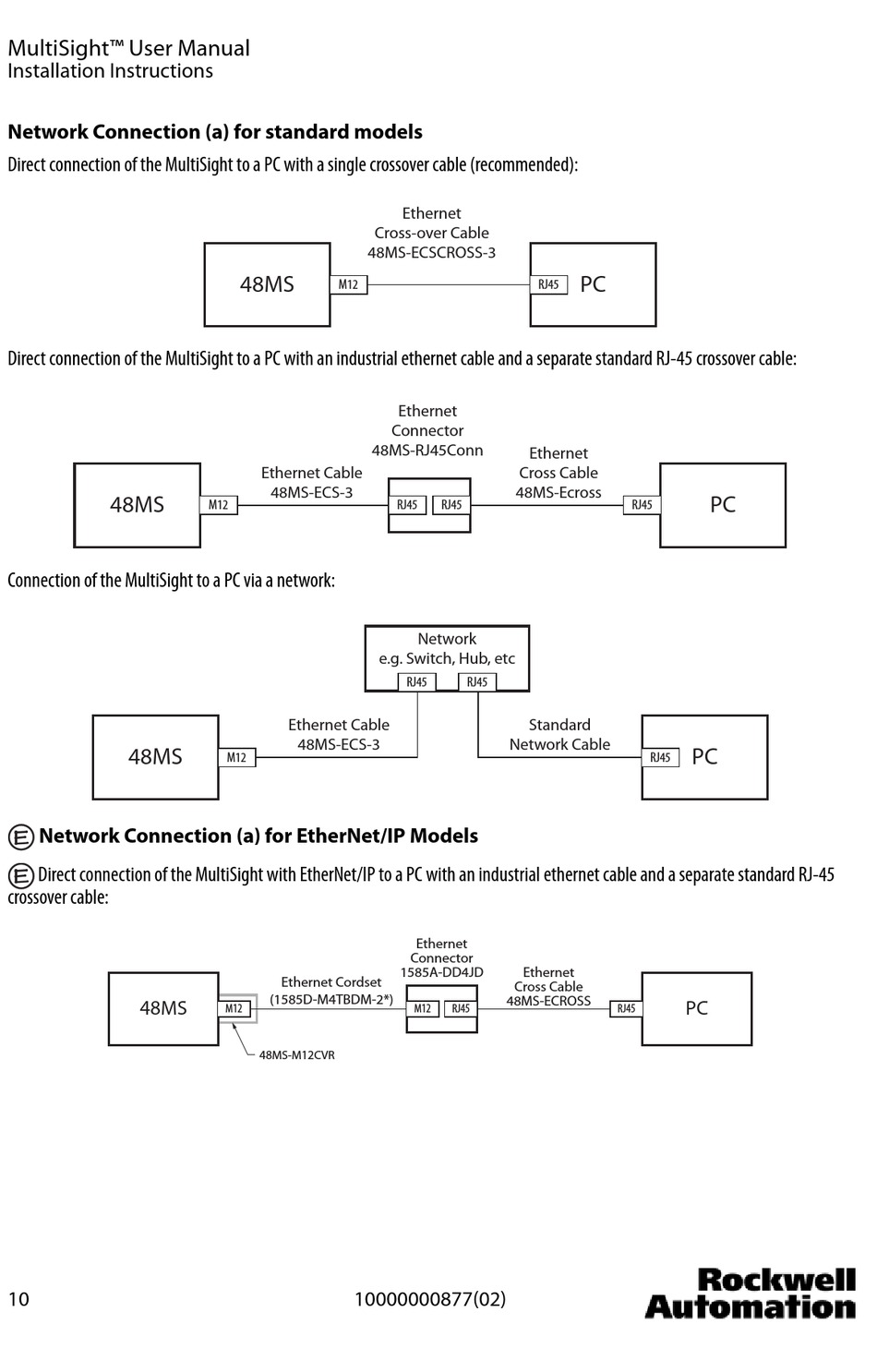

Network Connection (a) for standard models
Direct connection of the MultiSight to a PC with a single crossover cable (recommended):
Direct connection of the MultiSight to a PC with an industrial ethernet cable and a separate standard RJ-45 crossover cable:
48MS
Connection of the MultiSight to a PC via a network:
48MS
Network Connection (a) for EtherNet/IP Models
E
E Direct connection of the MultiSight with EtherNet/IP to a PC with an industrial ethernet cable and a separate standard RJ-45
crossover cable:
48MS
10
Cross-over Cable
48MS-ECSCROSS-3
48MS
M12
48MS-RJ45Conn
Ethernet Cable
48MS-ECS-3
M12
Ethernet Cable
48MS-ECS-3
M12
Ethernet Cordset
(1585D-M4TBDM-2*)
M12
48MS-M12CVR
10000000877(02)
Ethernet
RJ45
Ethernet
Connector
Ethernet
Cross Cable
48MS-Ecross
RJ45 RJ45
Network
e.g. Switch, Hub, etc
RJ45 RJ45
Standard
Network Cable
Ethernet
Connector
1585A-DD4JD Ethernet
Cross Cable
48MS-ECROSS
M12 RJ45
PC
PC
RJ45
PC
RJ45
PC
RJ45
