MultiSight™ User Manual
Maintenance
EtherNet/IP Model
Power and I/O cordset—M12 8-pin female, 2 m
Cable Connector Cover (nonconducting)—M12
Sealing Cap—M12 Female Connector
Ethernet Patchcord M12 D-code to M12 D-code—2 m
Ethernet M12 D-code to RJ45 converter
Ethernet Cable RJ45 to RJ45—2 m
Ethernet Patchcord Crossover M12 D-code to RJ45—3 m
M12 Patchcord for Lighting Accessory M12 to M12—2 m
 Included with MultiSight sensor.
 Other lengths available—replace 2 with length in meters (5 m and 10 m are standard)
Note: Additional accessories (longer cordsets and additional LED colors for external lighting)
available with longer lead times. Contact your Rockwell sales representative for
additional information.

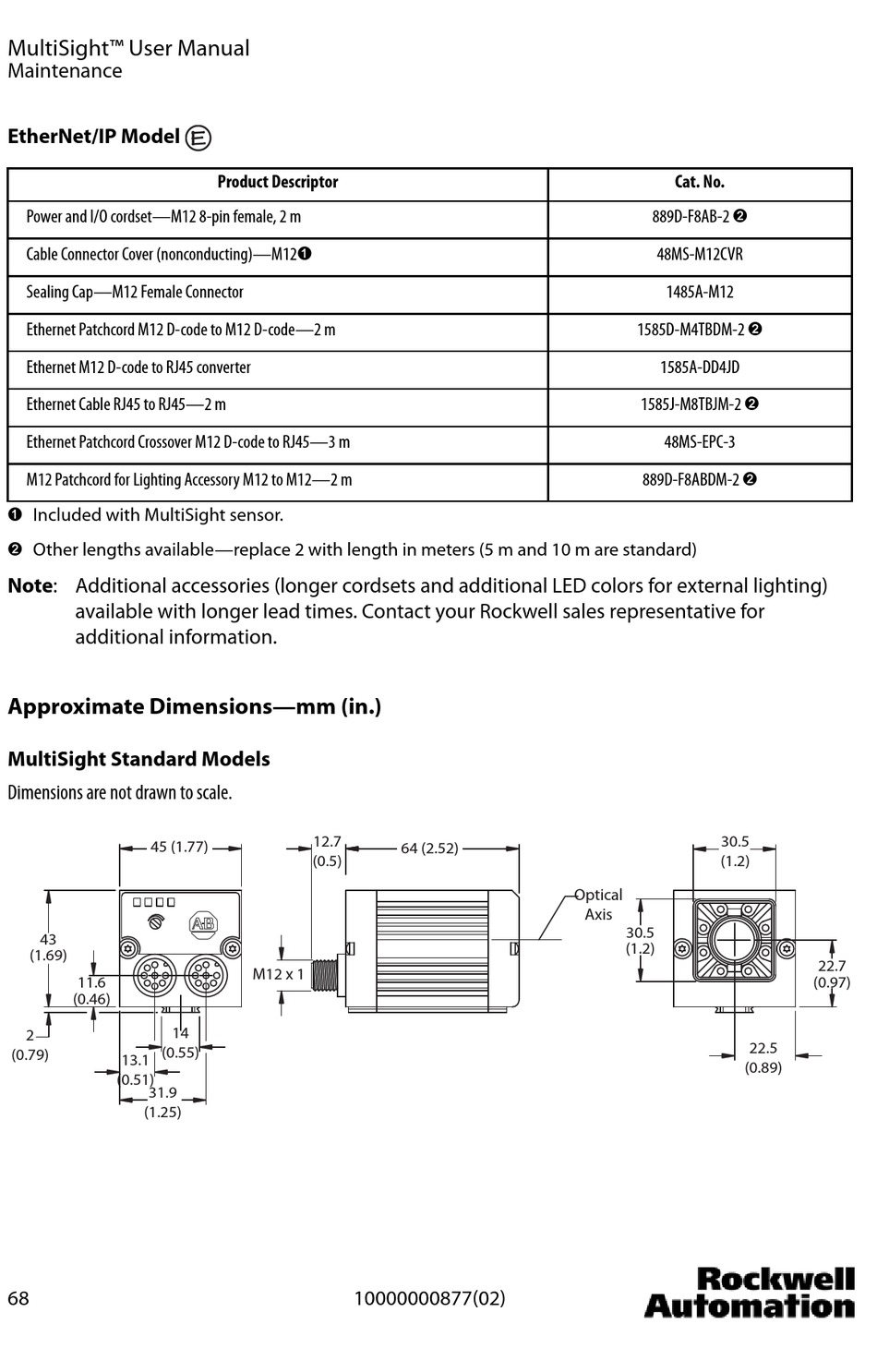

Approximate Dimensions—mm (in.)
MultiSight Standard Models
Dimensions are not drawn to scale.
45 (1.77)
43
(1.69)
11.6
(0.46)
14
2
(0.55)
(0.79)
13.1
(0.51)
31.9
(1.25)
68
E
Product Descriptor
12.7
(0.5)
M12 x 1
10000000877(02)
64 (2.52)
Cat. No.
889D-F8AB-2 
48MS-M12CVR
1485A-M12
1585D-M4TBDM-2 
1585A-DD4JD
1585J-M8TBJM-2 
48MS-EPC-3
889D-F8ABDM-2 
30.5
(1.2)
Optical
Axis
30.5
(1.2)
22.7
(0.97)
22.5
(0.89)
