MultiSight™ User Manual
Start-up

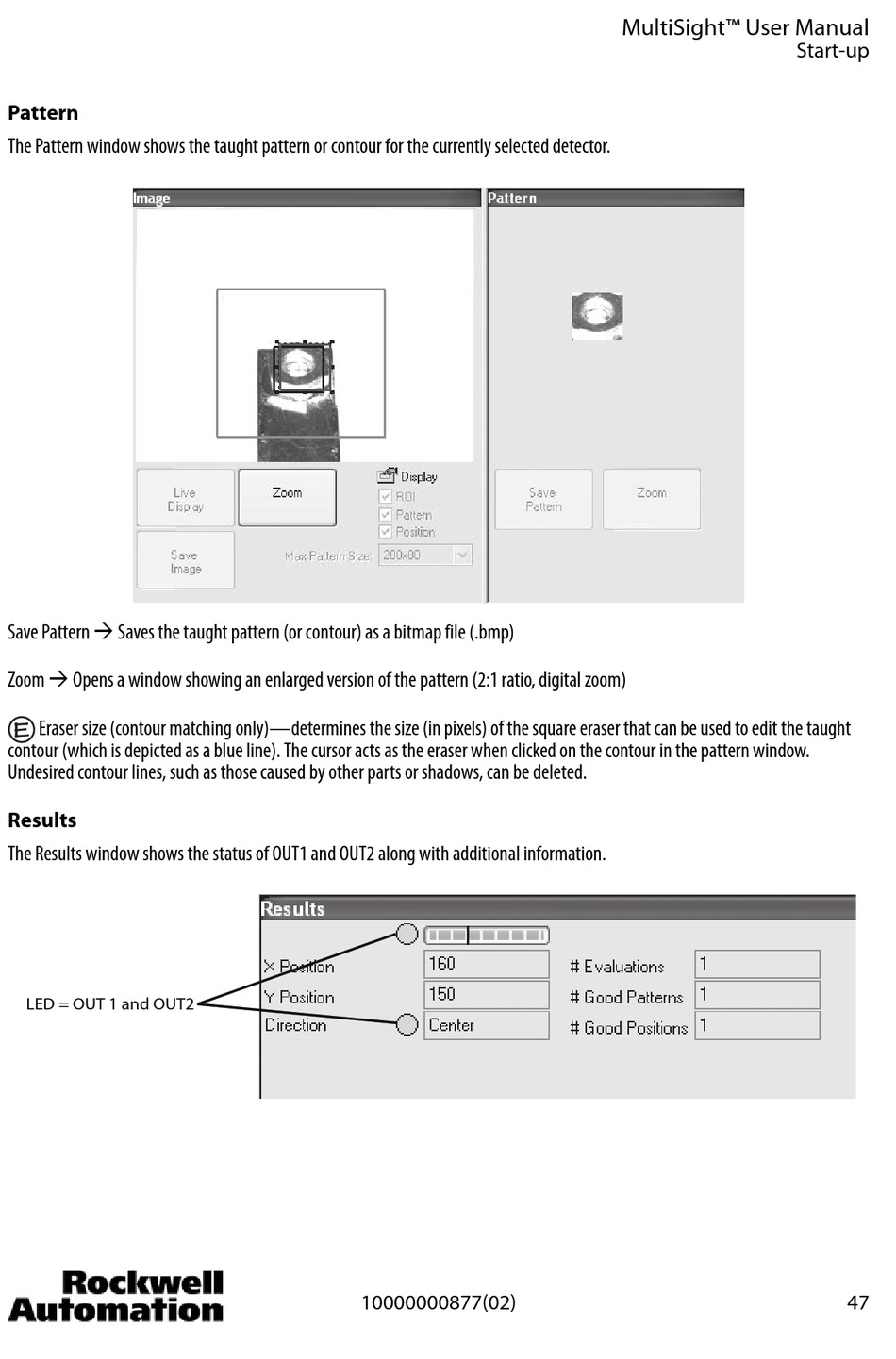

Pattern

The Pattern window shows the taught pattern or contour for the currently selected detector.
Save Pattern  Saves the taught pattern (or contour) as a bitmap file (.bmp)
Zoom  Opens a window showing an enlarged version of the pattern (2:1 ratio, digital zoom)
Eraser size (contour matching only)—determines the size (in pixels) of the square eraser that can be used to edit the taught
E
contour (which is depicted as a blue line). The cursor acts as the eraser when clicked on the contour in the pattern window.
Undesired contour lines, such as those caused by other parts or shadows, can be deleted.

Results

The Results window shows the status of OUT1 and OUT2 along with additional information.
LED = OUT 1 and OUT2
10000000877(02) 47
