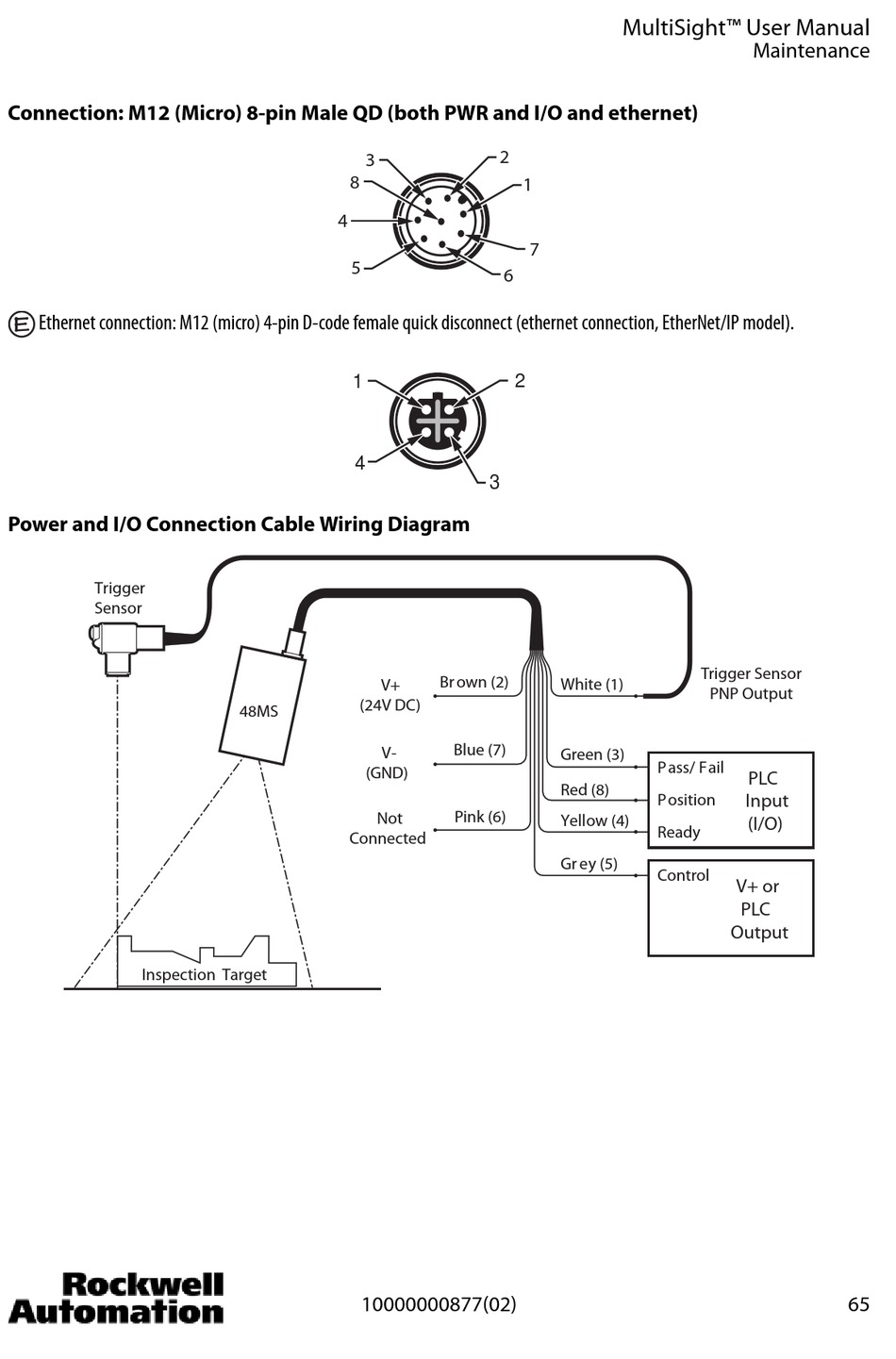

Connection: M12 (Micro) 8-pin Male QD (both PWR and I/O and ethernet)
E Ethernet connection: M12 (micro) 4-pin D-code female quick disconnect (ethernet connection, EtherNet/IP model).
Power and I/O Connection Cable Wiring Diagram
Trigger
Sensor
Inspection Target
3
8
4
5
1
4
V+
(24V DC)
48MS
V-
(GND)
Not
Connected
10000000877(02)
2
1
7
6
2
3
Br own (2)
White (1)
Blue (7)
Green (3)
Red (8)
Pink (6)
Yellow (4)
Gr ey (5)
MultiSight™ User Manual
Maintenance
Trigger Sensor
PNP Output
Pass/ Fail
PLC
Position Input
(I/O)
Ready
Control
V+ or
PLC
Output
