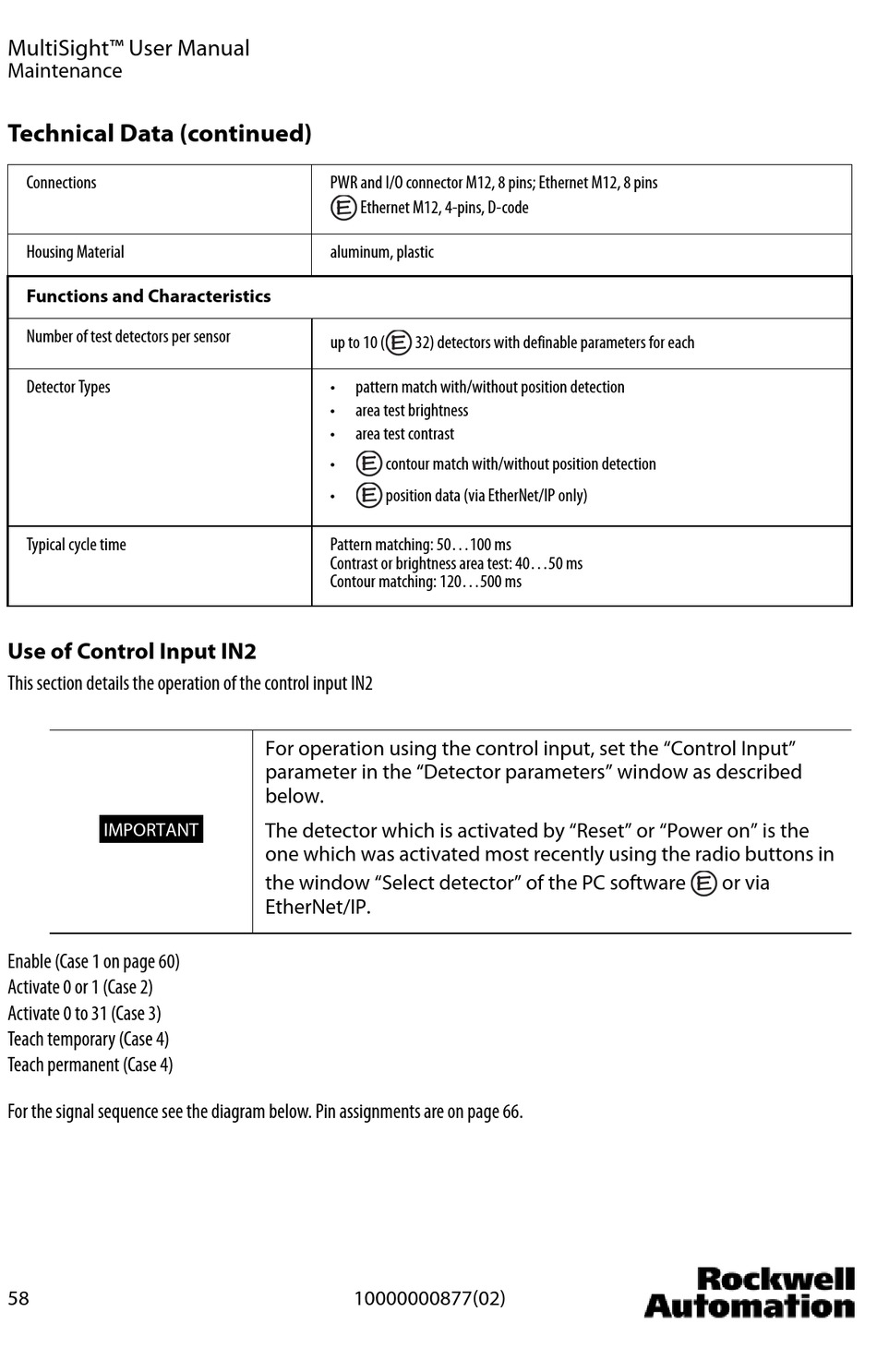

MultiSight™ User Manual
Maintenance
Technical Data (continued)
Connections
Housing Material
Functions and Characteristics
Number of test detectors per sensor
Detector Types
Typical cycle time

Use of Control Input IN2

This section details the operation of the control input IN2
IMPORTANT
Enable (Case 1 on page 60)
Activate 0 or 1 (Case 2)
Activate 0 to 31 (Case 3)
Teach temporary (Case 4)
Teach permanent (Case 4)
For the signal sequence see the diagram below. Pin assignments are on page 66.
58
PWR and I/O connector M12, 8 pins; Ethernet M12, 8 pins
E
Ethernet M12, 4-pins, D-code
aluminum, plastic
E
up to 10 ( 32) detectors with definable parameters for each
• pattern match with/without position detection
• area test brightness
• area test contrast
E
• contour match with/without position detection
E
• position data (via EtherNet/IP only)
Pattern matching: 50...100 ms
Contrast or brightness area test: 40...50 ms
Contour matching: 120...500 ms
For operation using the control input, set the "Control Input"
parameter in the "Detector parameters" window as described
below.
The detector which is activated by "Reset" or "Power on" is the
one which was activated most recently using the radio buttons in
the window "Select detector" of the PC software
EtherNet/IP.
