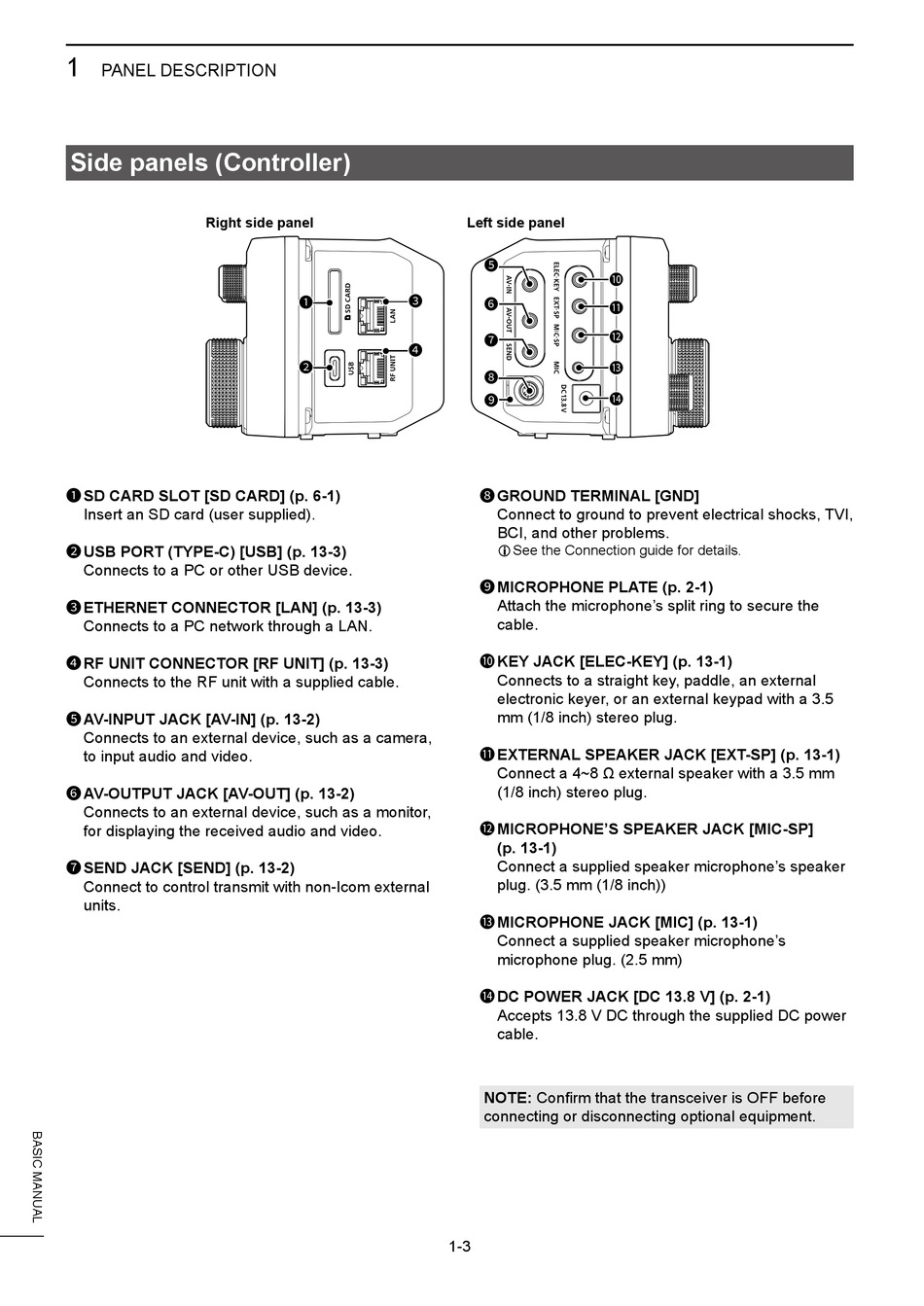

PANEL DESCRIPTION
Side panels (Controller)
Right side panel
1 SD CARD SLOT [SD CARD] (p. 6-1)
Insert an SD card (user supplied).
2 USB PORT (TYPE-C) [USB] (p. 13-3)
Connects to a PC or other USB device.
3 ETHERNET CONNECTOR [LAN] (p. 13-3)
Connects to a PC network through a LAN.
4 RF UNIT CONNECTOR [RF UNIT] (p. 13-3)
Connects to the RF unit with a supplied cable.
5 AV-INPUT JACK [AV-IN] (p. 13-2)
Connects to an external device, such as a camera,
to input audio and video.
6 AV-OUTPUT JACK [AV-OUT] (p. 13-2)
Connects to an external device, such as a monitor,
for displaying the received audio and video.
7 SEND JACK [SEND] (p. 13-2)
Connect to control transmit with non-Icom external
units.
Left side panel
3
1
4
2
1-3
5
10
6
11
12
7
13
8
14
9
8 GROUND TERMINAL [GND]
Connect to ground to prevent electrical shocks, TVI,
BCI, and other problems.
L See the Connection guide for details.
9 MICROPHONE PLATE (p. 2-1)
Attach the microphone's split ring to secure the
cable.
10 KEY JACK [ELEC-KEY] (p. 13-1)
Connects to a straight key, paddle, an external
electronic keyer, or an external keypad with a 3.5
mm (1/8 inch) stereo plug.
11 EXTERNAL SPEAKER JACK [EXT-SP] (p. 13-1)
C onnect a 4~8 Ω external speaker with a 3.5 mm
(1/8 inch) stereo plug.
12 MICROPHONE'S SPEAKER JACK [MIC-SP]
(p. 13-1)
Connect a supplied speaker microphone's speaker
plug. (3.5 mm (1/8 inch))
13 MICROPHONE JACK [MIC] (p. 13-1)
Connect a supplied speaker microphone's
microphone plug. (2.5 mm)
14 DC POWER JACK [DC 13.8 V] (p. 2-1)
Accepts 13.8 V DC through the supplied DC power
cable.
NOTE: Confirm that the transceiver is OFF before
connecting or disconnecting optional equipment.
