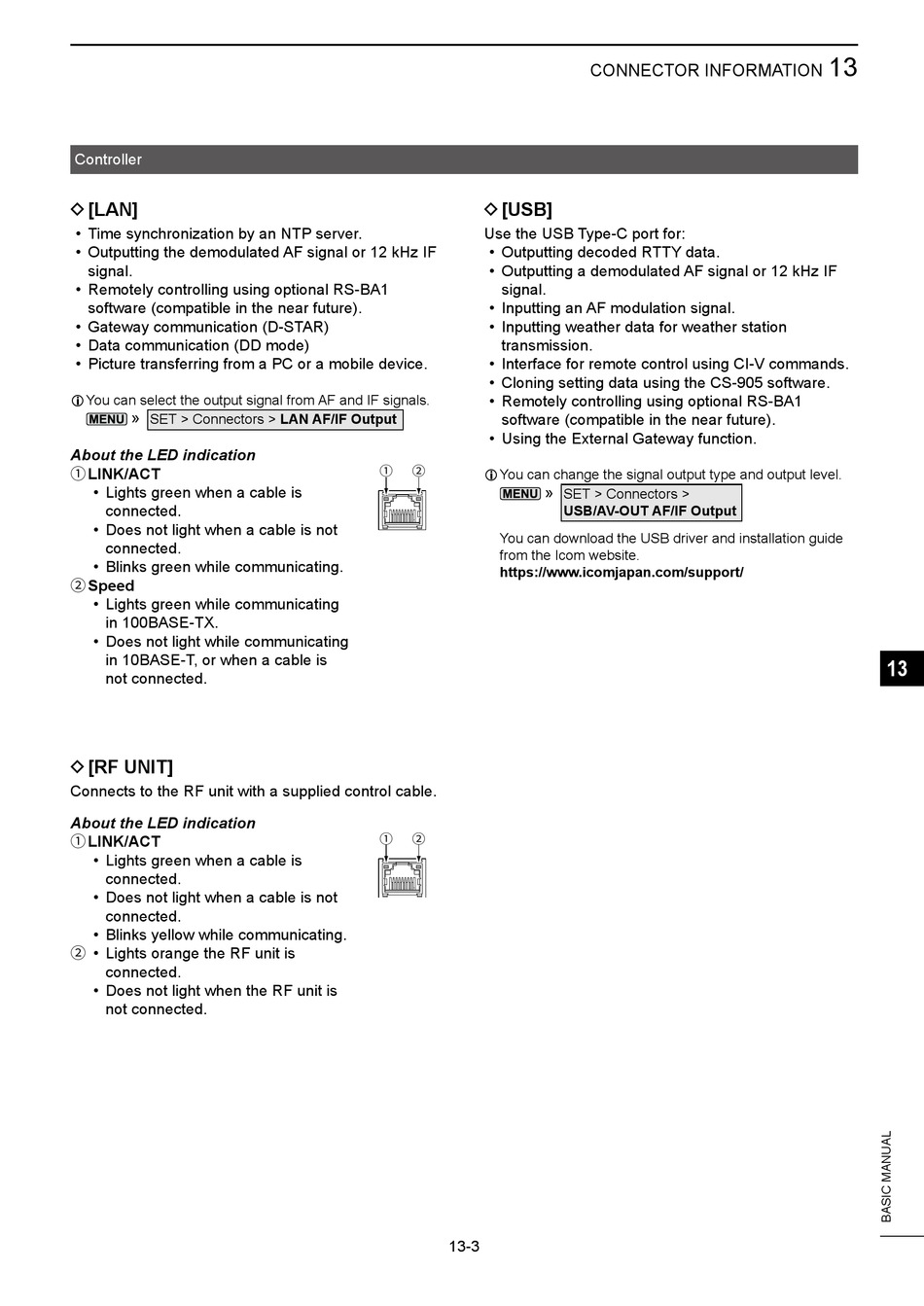

Controller
D [LAN]
• Time synchronization by an NTP server.
• Outputting the demodulated AF signal or 12 kHz IF
signal.
• Remotely controlling using optional RS-BA1
software (compatible in the near future).
• Gateway communication (D-STAR)
• Data communication (DD mode)
• Picture transferring from a PC or a mobile device.
L You can select the output signal from AF and IF signals.
»
SET > Connectors > LAN AF/IF Output
About the LED indication
1 LINK/ACT
• Lights green when a cable is
connected.
• Does not light when a cable is not
connected.
• Blinks green while communicating.
2 Speed
• Lights green while communicating
in 100BASE-TX.
• Does not light while communicating
in 10BASE-T, or when a cable is
not connected.
D [RF UNIT]
Connects to the RF unit with a supplied control cable.
About the LED indication
1 LINK/ACT
• Lights green when a cable is
connected.
• Does not light when a cable is not
connected.
• Blinks yellow while communicating.
2 • Lights orange the RF unit is
connected.
• Does not light when the RF unit is
not connected.
D [USB]
Use the USB Type-C port for:
• Outputting decoded RTTY data.
• Outputting a demodulated AF signal or 12 kHz IF
signal.
• Inputting an AF modulation signal.
• Inputting weather data for weather station
transmission.
• Interface for remote control using CI-V commands.
• Cloning setting data using the CS-905 software.
• Remotely controlling using optional RS-BA1
software (compatible in the near future).
• Using the External Gateway function.
1 2 L You can change the signal output type and output level.
»
You can download the USB driver and installation guide
from the Icom website.
https://www.icomjapan.com/support/
1 2
13-3
CONNECTOR INFORMATION
SET > Connectors >
USB/AV-OUT AF/IF Output
