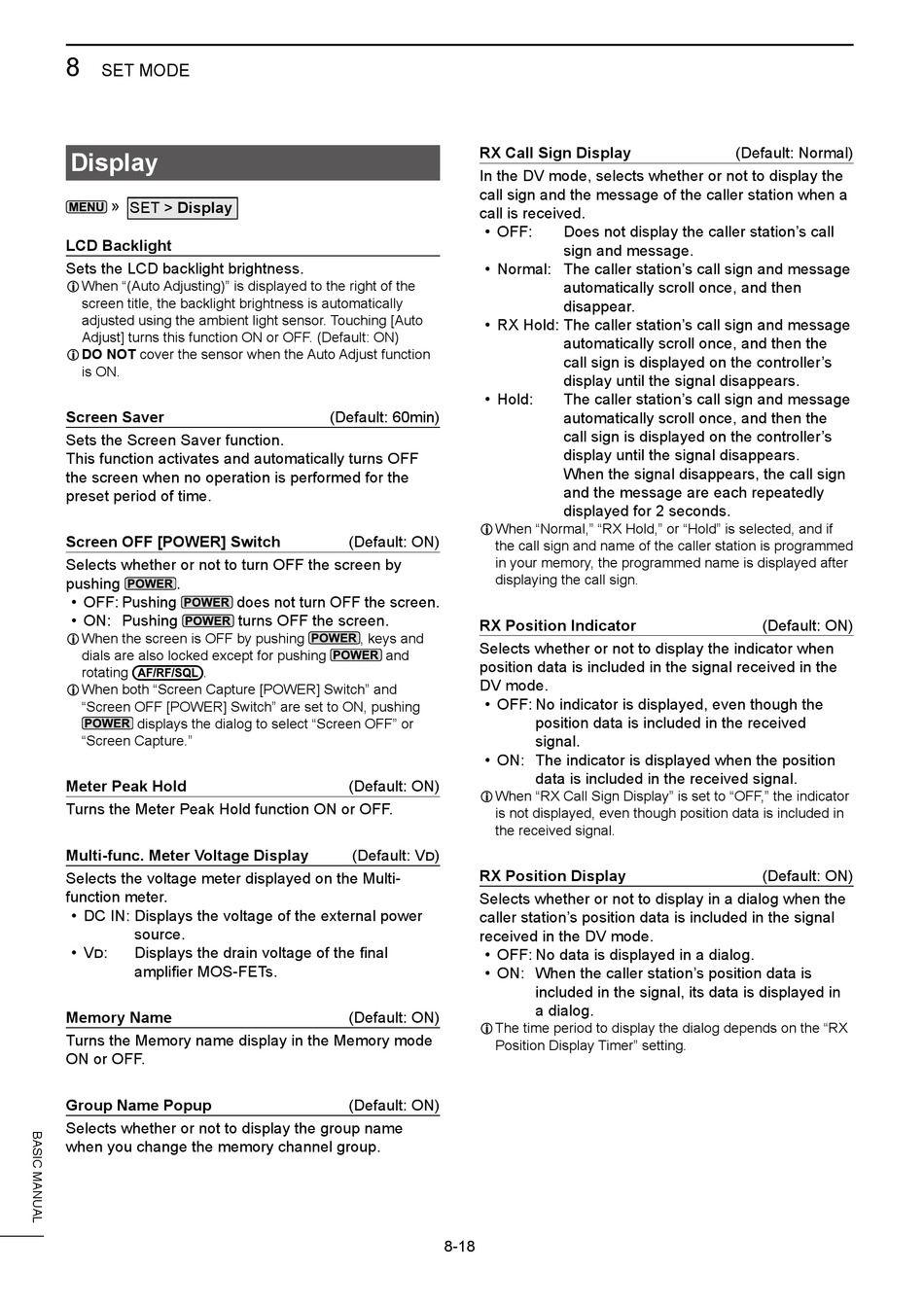

Icom IC-905 Basic Manual page 72

8
SET MODE
Display
» SET > Display
LCD Backlight
Sets the LCD backlight brightness.
L When "(Auto Adjusting)" is displayed to the right of the
screen title, the backlight brightness is automatically
adjusted using the ambient light sensor. Touching [Auto
Adjust] turns this function ON or OFF. (Default: ON)
L DO NOT cover the sensor when the Auto Adjust function
is ON.
Screen Saver
Sets the Screen Saver function.
This function activates and automatically turns OFF
the screen when no operation is performed for the
preset period of time.
Screen OFF [POWER] Switch
Selects whether or not to turn OFF the screen by
pushing .
• OFF: Pushing does not turn OFF the screen.
• ON: Pushing turns OFF the screen.
L When the screen is OFF by pushing
dials are also locked except for pushing
rotating .
L When both "Screen Capture [POWER] Switch" and
"Screen OFF [POWER] Switch" are set to ON, pushing
displays the dialog to select "Screen OFF" or
"Screen Capture."
Meter Peak Hold
Turns the Meter Peak Hold function ON or OFF.
Multi-func. Meter Voltage Display
Selects the voltage meter displayed on the Multi-
function meter.
• DC IN: Displays the voltage of the external power
source.
• Vd: Displays the drain voltage of the final
amplifier MOS-FETs.
Memory Name
Turns the Memory name display in the Memory mode
ON or OFF.
Group Name Popup
Selects whether or not to display the group name
when you change the memory channel group.
RX Call Sign Display
In the DV mode, selects whether or not to display the
call sign and the message of the caller station when a
call is received.
• OFF:
• Normal: The caller station's call sign and message
• RX Hold: The caller station's call sign and message
• Hold:
(Default: 60min)
L When "Normal," "RX Hold," or "Hold" is selected, and if
(Default: ON)
the call sign and name of the caller station is programmed
in your memory, the programmed name is displayed after
displaying the call sign.
RX Position Indicator
, keys and
Selects whether or not to display the indicator when
and
position data is included in the signal received in the
DV mode.
• OFF: No indicator is displayed, even though the
• ON: The indicator is displayed when the position
(Default: ON)
L When "RX Call Sign Display" is set to "OFF," the indicator
is not displayed, even though position data is included in
the received signal.
(Default: Vd)
RX Position Display
Selects whether or not to display in a dialog when the
caller station's position data is included in the signal
received in the DV mode.
• OFF: No data is displayed in a dialog.
• ON: When the caller station's position data is
(Default: ON)
L The time period to display the dialog depends on the "RX
Position Display Timer" setting.
(Default: ON)
8-18
Does not display the caller station's call
sign and message.
automatically scroll once, and then
disappear.
automatically scroll once, and then the
call sign is displayed on the controller's
display until the signal disappears.
The caller station's call sign and message
automatically scroll once, and then the
call sign is displayed on the controller's
display until the signal disappears.
When the signal disappears, the call sign
and the message are each repeatedly
displayed for 2 seconds.
position data is included in the received
signal.
data is included in the received signal.
included in the signal, its data is displayed in
a dialog.
(Default: Normal)
(Default: ON)
(Default: ON)
