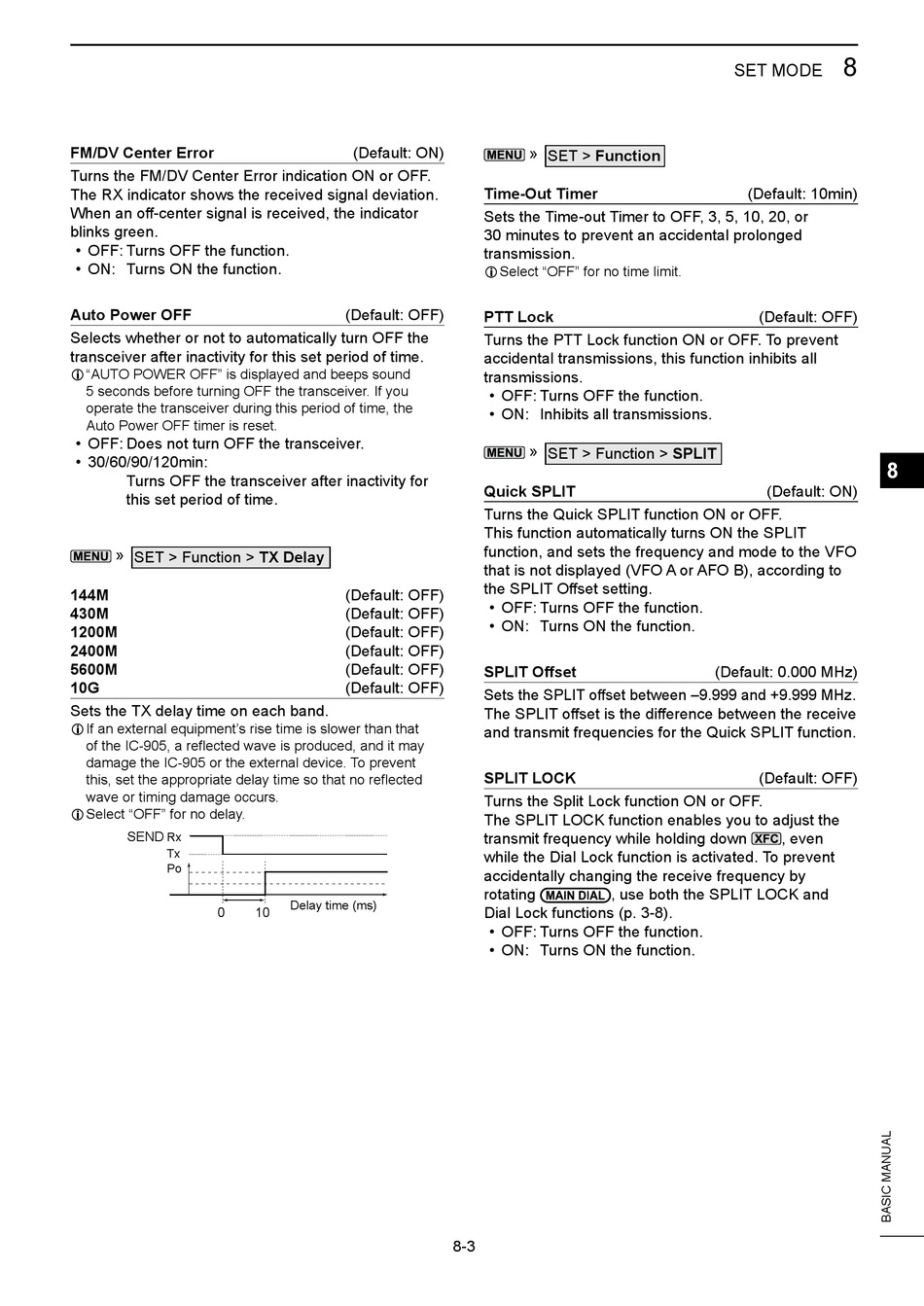

Icom IC-905 Basic Manual page 57

FM/DV Center Error
Turns the FM/DV Center Error indication ON or OFF.
The RX indicator shows the received signal deviation.
When an off-center signal is received, the indicator
blinks green.
• OFF: Turns OFF the function.
• ON: Turns ON the function.
Auto Power OFF
Selects whether or not to automatically turn OFF the
transceiver after inactivity for this set period of time.
L "AUTO POWER OFF" is displayed and beeps sound
5 seconds before turning OFF the transceiver. If you
operate the transceiver during this period of time, the
Auto Power OFF timer is reset.
• OFF: Does not turn OFF the transceiver.
• 30/60/90/120min:
Turns OFF the transceiver after inactivity for
this set period of time.
» SET > Function > TX Delay
144M
430M
1200M
2400M
5600M
10G
Sets the TX delay time on each band.
L If an external equipment's rise time is slower than that
of the IC-905, a reflected wave is produced, and it may
damage the IC-905 or the external device. To prevent
this, set the appropriate delay time so that no reflected
wave or timing damage occurs.
L Select "OFF" for no delay.
SEND
Rx
Tx
Po
0
(Default: ON)
(Default: OFF)
(Default: OFF)
(Default: OFF)
(Default: OFF)
(Default: OFF)
(Default: OFF)
(Default: OFF)
Delay time (ms)
10
» SET > Function
Time-Out Timer
Sets the Time-out Timer to OFF, 3, 5, 10, 20, or
30 minutes to prevent an accidental prolonged
transmission.
L Select "OFF" for no time limit.
PTT Lock
Turns the PTT Lock function ON or OFF. To prevent
accidental transmissions, this function inhibits all
transmissions.
• OFF: Turns OFF the function.
• ON: Inhibits all transmissions.
» SET > Function > SPLIT
Quick SPLIT
Turns the Quick SPLIT function ON or OFF.
This function automatically turns ON the SPLIT
function, and sets the frequency and mode to the VFO
that is not displayed (VFO A or AFO B), according to
the SPLIT Offset setting.
• OFF: Turns OFF the function.
• ON: Turns ON the function.
SPLIT Offset
Sets the SPLIT offset between –9.999 and +9.999 MHz.
The SPLIT offset is the difference between the receive
and transmit frequencies for the Quick SPLIT function.
SPLIT LOCK
Turns the Split Lock function ON or OFF.
The SPLIT LOCK function enables you to adjust the
transmit frequency while holding down
while the Dial Lock function is activated. To prevent
accidentally changing the receive frequency by
rotating , use both the SPLIT LOCK and
Dial Lock functions (p. 3-8).
• OFF: Turns OFF the function.
• ON: Turns ON the function.
8-3
8
SET MODE
(Default: 10min)
(Default: OFF)
8
(Default: ON)
(Default: 0.000 MHz)
(Default: OFF)
, even
