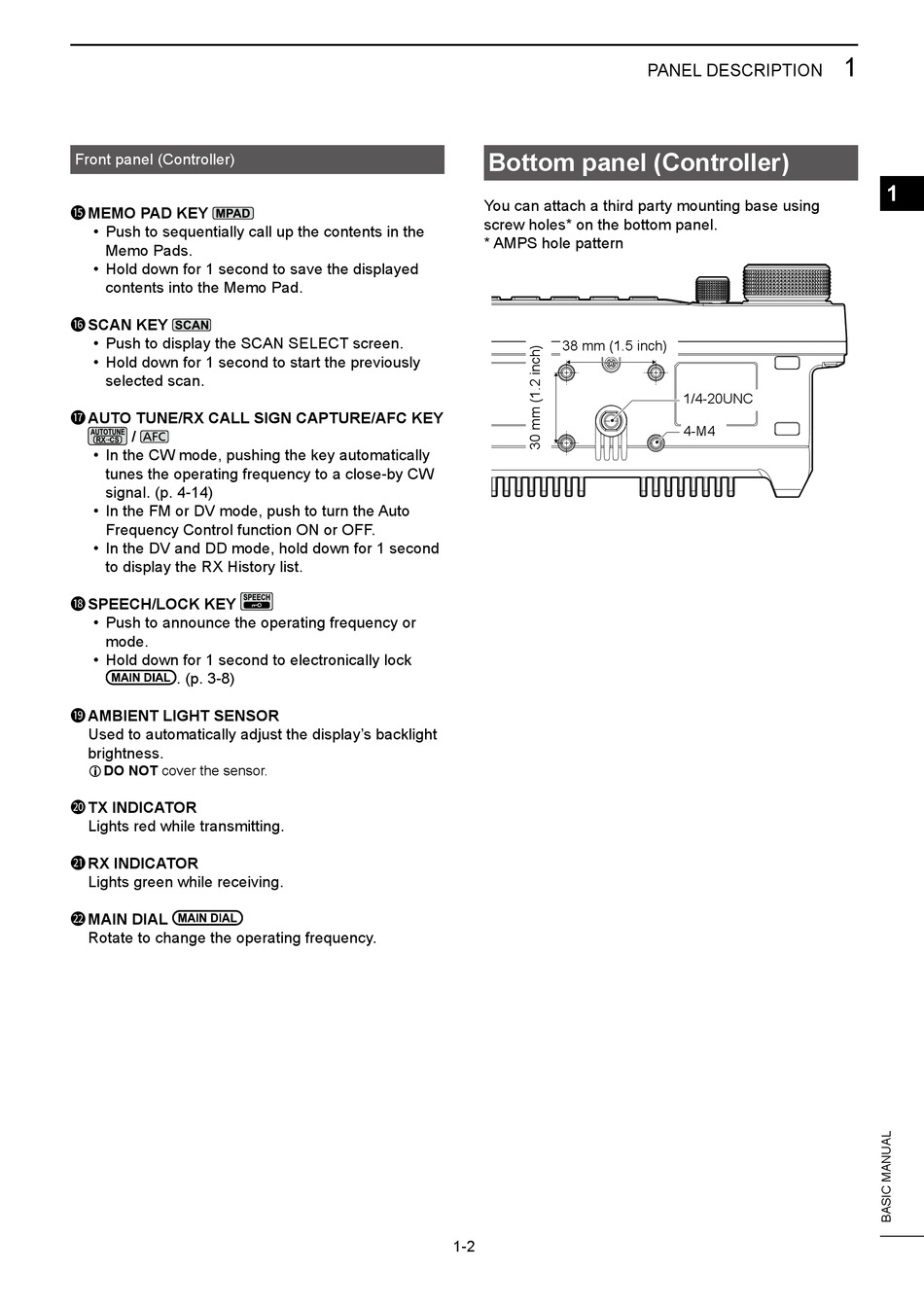

Icom IC-905 Basic Manual page 15

Front panel (Controller)
15 MEMO PAD KEY
• Push to sequentially call up the contents in the
Memo Pads.
• Hold down for 1 second to save the displayed
contents into the Memo Pad.
16 SCAN KEY
• Push to display the SCAN SELECT screen.
• Hold down for 1 second to start the previously
selected scan.
17 AUTO TUNE/RX CALL SIGN CAPTURE/AFC KEY
/
• In the CW mode, pushing the key automatically
tunes the operating frequency to a close-by CW
signal. (p. 4-14)
• In the FM or DV mode, push to turn the Auto
Frequency Control function ON or OFF.
• In the DV and DD mode, hold down for 1 second
to display the RX History list.
18 SPEECH/LOCK KEY
• Push to announce the operating frequency or
mode.
• Hold down for 1 second to electronically lock
. (p. 3-8)
19 AMBIENT LIGHT SENSOR
Used to automatically adjust the display's backlight
brightness.
L DO NOT cover the sensor.
20 TX INDICATOR
Lights red while transmitting.
21 RX INDICATOR
Lights green while receiving.
22 MAIN DIAL
Rotate to change the operating frequency.
Bottom panel (Controller)
You can attach a third party mounting base using
screw holes* on the bottom panel.
* AMPS hole pattern
38 mm (1.5 inch)
1-2
PANEL DESCRIPTION
1/4-20UNC
4-M4
