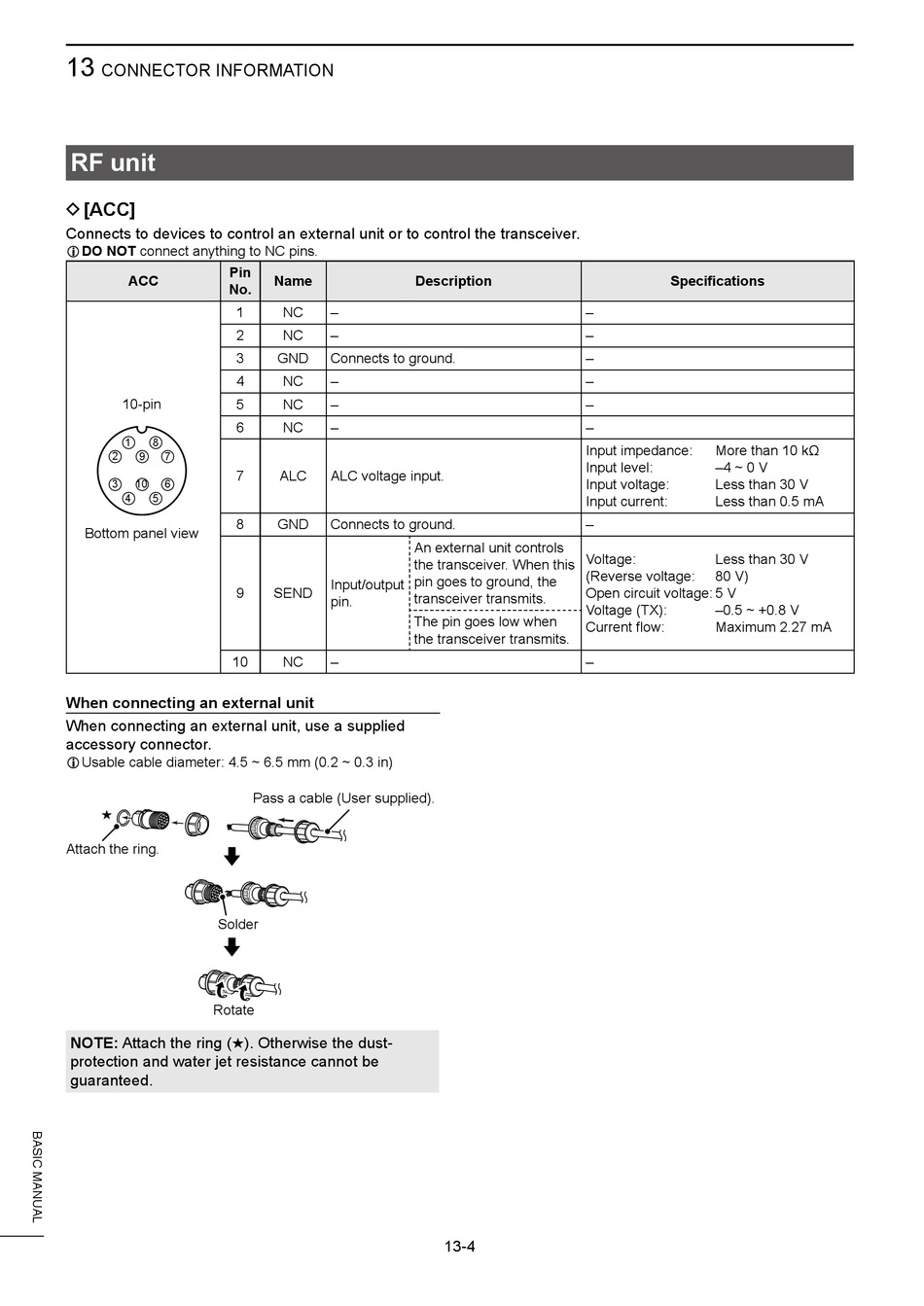

CONNECTOR INFORMATION
RF unit
D [ACC]
Connects to devices to control an external unit or to control the transceiver.
L DO NOT connect anything to NC pins.
Pin
ACC
No.
1
2
3
4
10-pin
5
6
1
8
2
9
7
7
3
10
6
4
5
8
Bottom panel view
9
10
When connecting an external unit
When connecting an external unit, use a supplied
accessory connector.
L Usable cable diameter: 4.5 ~ 6.5 mm (0.2 ~ 0.3 in)
Attach the ring.
Solder
Rotate
NOTE: Attach the ring (★). Otherwise the dust-
protection and water jet resistance cannot be
guaranteed.
Name
Description
NC
NC
GND
Connects to ground.
NC
NC
NC
ALC
ALC voltage input.
GND
Connects to ground.
An external unit controls
the transceiver. When this
pin goes to ground, the
Input/output
SEND
transceiver transmits.
pin.
The pin goes low when
the transceiver transmits.
NC
Pass a cable (User supplied).
Input impedance:
Input level:
Input voltage:
Input current:
Voltage:
(Reverse voltage:
Open circuit voltage: 5 V
Voltage (TX):
Current flow:
13-4
Specifications
More than 10 kΩ
–4 ~ 0 V
Less than 30 V
Less than 0.5 mA
Less than 30 V
80 V)
–0.5 ~ +0.8 V
Maximum 2.27 mA
