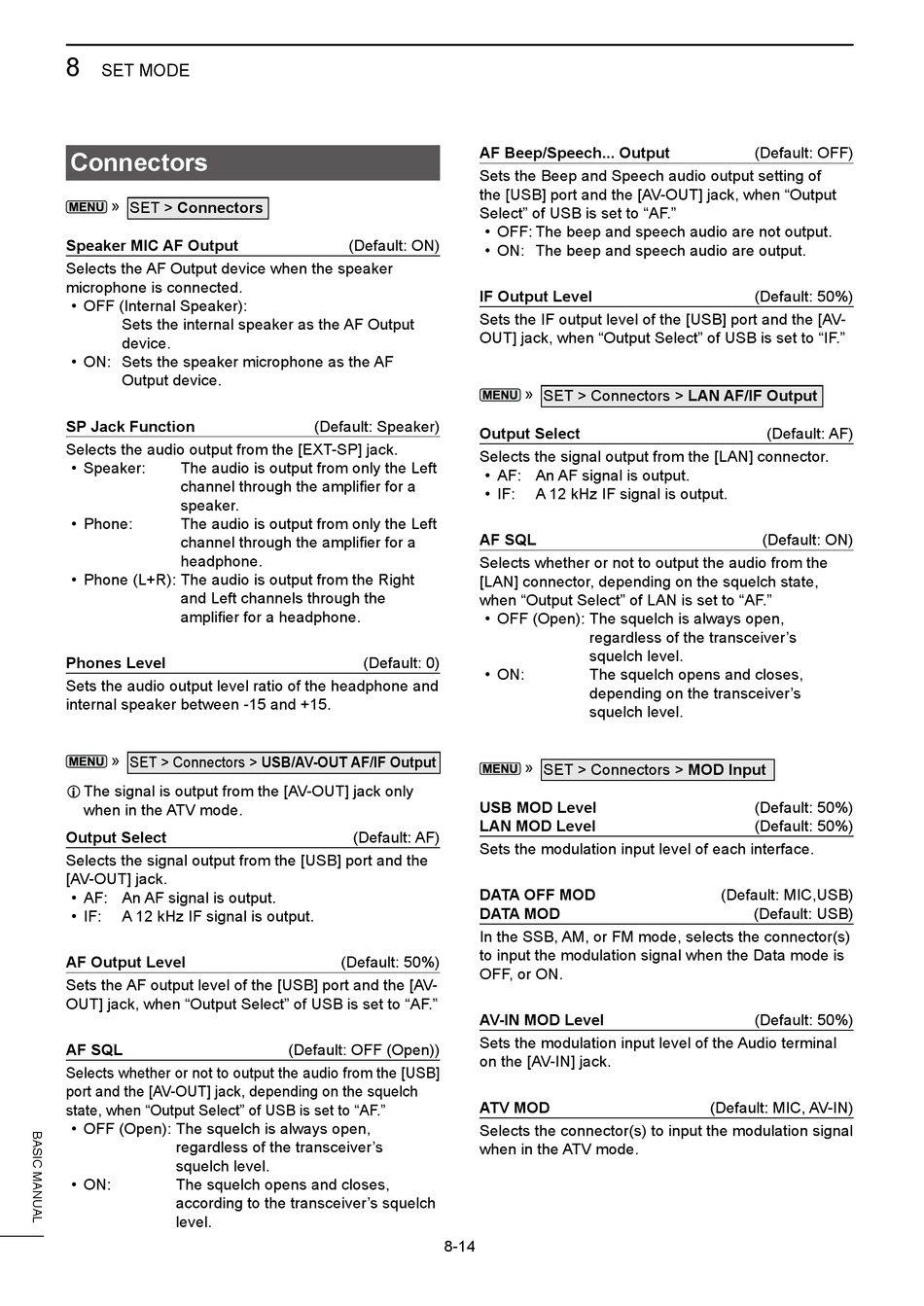

Icom IC-905 Basic Manual page 68

8
SET MODE
Connectors
» SET > Connectors
Speaker MIC AF Output
Selects the AF Output device when the speaker
microphone is connected.
• OFF (Internal Speaker):
Sets the internal speaker as the AF Output
device.
• ON: Sets the speaker microphone as the AF
Output device.
SP Jack Function
Selects the audio output from the [EXT-SP] jack.
• Speaker: The audio is output from only the Left
channel through the amplifier for a
speaker.
• Phone: The audio is output from only the Left
channel through the amplifier for a
headphone.
• Phone (L+R): The audio is output from the Right
and Left channels through the
amplifier for a headphone.
Phones Level
Sets the audio output level ratio of the headphone and
internal speaker between -15 and +15.
» SET > Connectors > USB/AV-OUT AF/IF Output
L The signal is output from the [AV-OUT] jack only
when in the ATV mode.
Output Select
Selects the signal output from the [USB] port and the
[AV-OUT] jack.
• AF: An AF signal is output.
• IF: A 12 kHz IF signal is output.
AF Output Level
Sets the AF output level of the [USB] port and the [AV-
OUT] jack, when "Output Select" of USB is set to "AF."
AF SQL
Selects whether or not to output the audio from the [USB]
port and the [AV-OUT] jack, depending on the squelch
state, when "Output Select" of USB is set to "AF."
• OFF (Open): The squelch is always open,
regardless of the transceiver's
squelch level.
• ON: The squelch opens and closes,
according to the transceiver's squelch
level.
(Default: ON)
(Default: Speaker)
(Default: 0)
(Default: AF)
(Default: 50%)
(Default: OFF (Open))
8-14
AF Beep/Speech... Output
Sets the Beep and Speech audio output setting of
the [USB] port and the [AV-OUT] jack, when "Output
Select" of USB is set to "AF."
• OFF: The beep and speech audio are not output.
• ON: The beep and speech audio are output.
IF Output Level
Sets the IF output level of the [USB] port and the [AV-
OUT] jack, when "Output Select" of USB is set to "IF."
» SET > Connectors > LAN AF/IF Output
Output Select
Selects the signal output from the [LAN] connector.
• AF: An AF signal is output.
• IF: A 12 kHz IF signal is output.
AF SQL
Selects whether or not to output the audio from the
[LAN] connector, depending on the squelch state,
when "Output Select" of LAN is set to "AF."
• OFF (Open): The squelch is always open,
regardless of the transceiver's
squelch level.
• ON: The squelch opens and closes,
depending on the transceiver's
squelch level.
» SET > Connectors > MOD Input
USB MOD Level
LAN MOD Level
Sets the modulation input level of each interface.
DATA OFF MOD
DATA MOD
In the SSB, AM, or FM mode, selects the connector(s)
to input the modulation signal when the Data mode is
OFF, or ON.
AV-IN MOD Level
Sets the modulation input level of the Audio terminal
on the [AV-IN] jack.
ATV MOD
Selects the connector(s) to input the modulation signal
when in the ATV mode.
(Default: OFF)
(Default: 50%)
(Default: AF)
(Default: ON)
(Default: 50%)
(Default: 50%)
(Default: MIC,USB)
(Default: USB)
(Default: 50%)
(Default: MIC, AV-IN)
