PROFINET Module Installation
STXPNS001 Dimension
Mechanical Set Up
Total Expansion
Plugging and Removing the Components
5-6

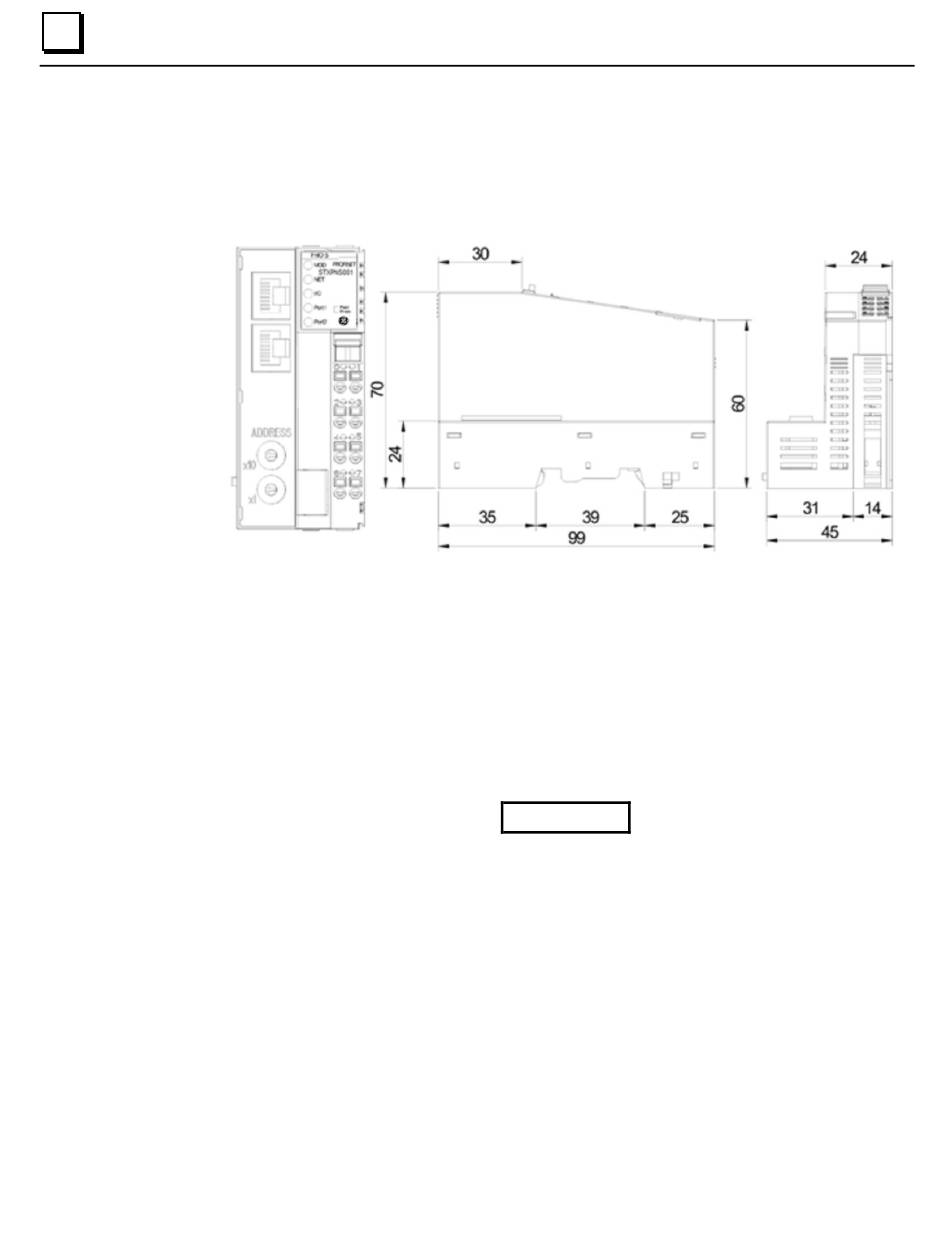

The following screenshot displays the dimension for STXPNS001.
The number of the module assembly that can be connected is 32. So the maximum length
is 426mm Exception.
ST-2748 is expected to calculate maximum length because it is a double width module.
Before work is done on the components, the voltage supply must be turned off.
As the above screenshot indicated below, in order to safeguard the RSTi module from
jamming, it should be fixed onto the DIN rail with locking level. To do so, fold on the upper
of the locking lever.
To pull out the RSTi module, unfold the locking lever as shown below.
RSTi Network Adapter Manual User Manual -January 2012
Figure 37: Dimension for STXPNS001
Caution
GFK-2746
