5
5-22
■
Process Image Tab: displays IO information
Displays IO information
Possible to test IO Value
Able to test value of all connected IO modules in case of selecting Network
Adapter.
Able to test value of Base IO in case of selecting all-in-one type of Network
Adapter (A-series).
Download and apply to Online Device after changing value of Project.
To get the latest value in Online, device should be uploaded.
During monitoring, the latest update is automatically executed in Online Value
■
Parameters Tab: displays RSTi Network Adapter & and IO parameter. This tab can
be used to configure network adapter or IO parameters. Refer to GFK-2746 for more
details on parameter configuration.
Displays NA and IO parameters.
Displays the slot number and the module name as defined by the user.
Download and apply to Online Device after changing value of Project.
To get the latest value in Online, Device should be uploaded
RSTi Network Adapter Manual User Manual -January 2012

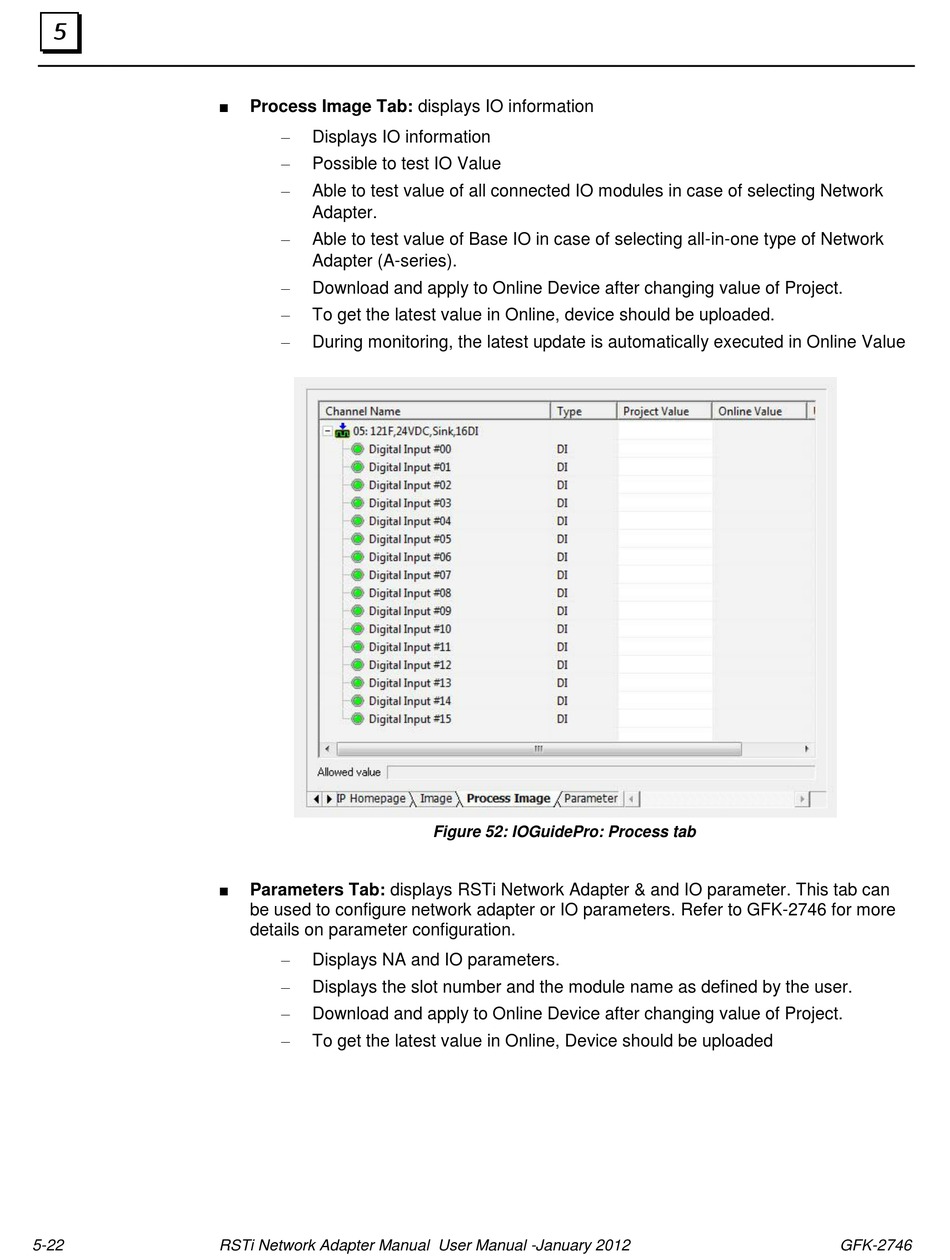

Figure 52: IOGuidePro: Process tab
GFK-2746
