5
5-22

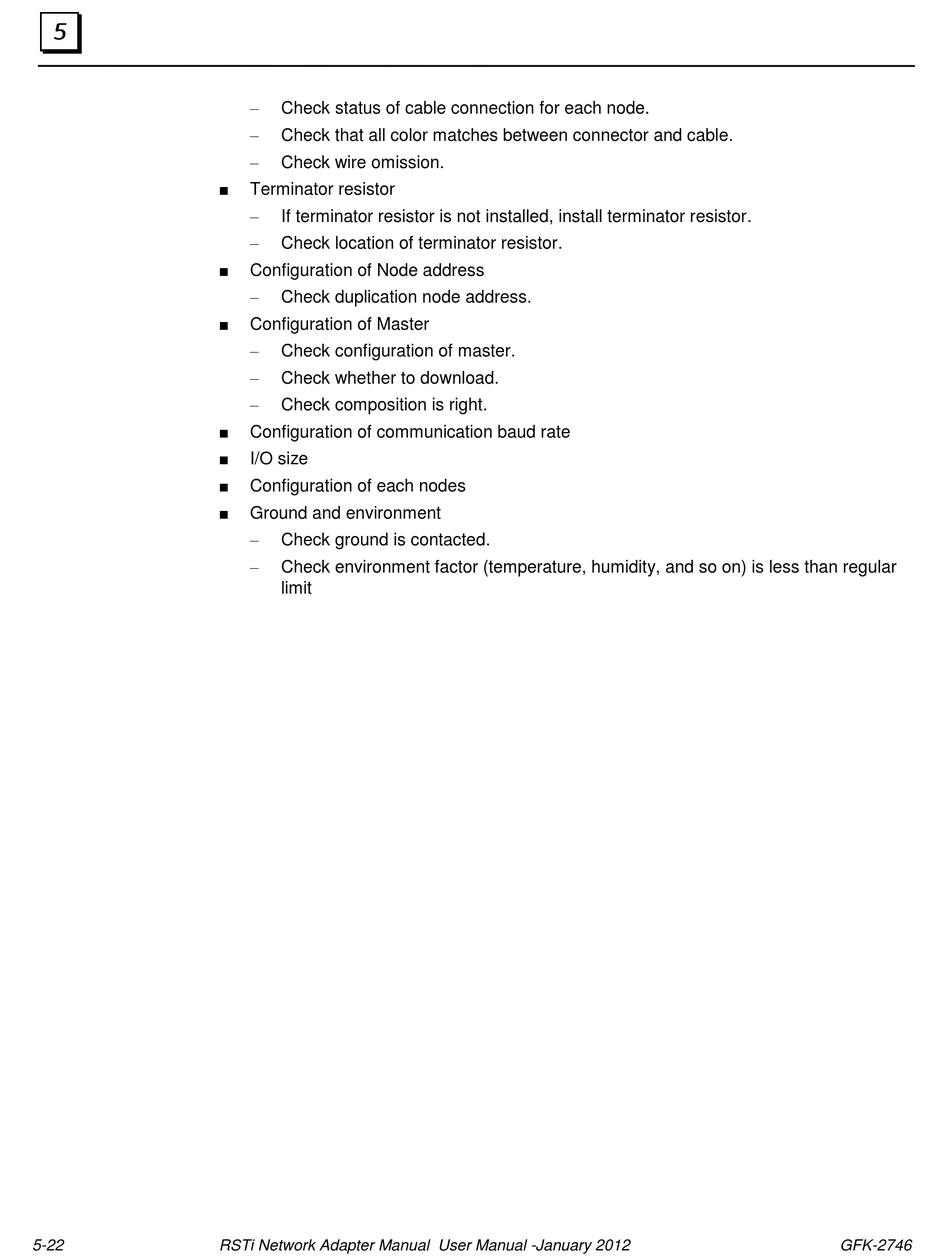

Check status of cable connection for each node.
Check that all color matches between connector and cable.
Check wire omission.
■
Terminator resistor
If terminator resistor is not installed, install terminator resistor.
Check location of terminator resistor.
■
Configuration of Node address
Check duplication node address.
■
Configuration of Master
Check configuration of master.
Check whether to download.
Check composition is right.
■
Configuration of communication baud rate
■
I/O size
■
Configuration of each nodes
■
Ground and environment
Check ground is contacted.
Check environment factor (temperature, humidity, and so on) is less than regular
limit
RSTi Network Adapter Manual User Manual -January 2012
GFK-2746
